Parts Layout & Schematic Drawing: Location

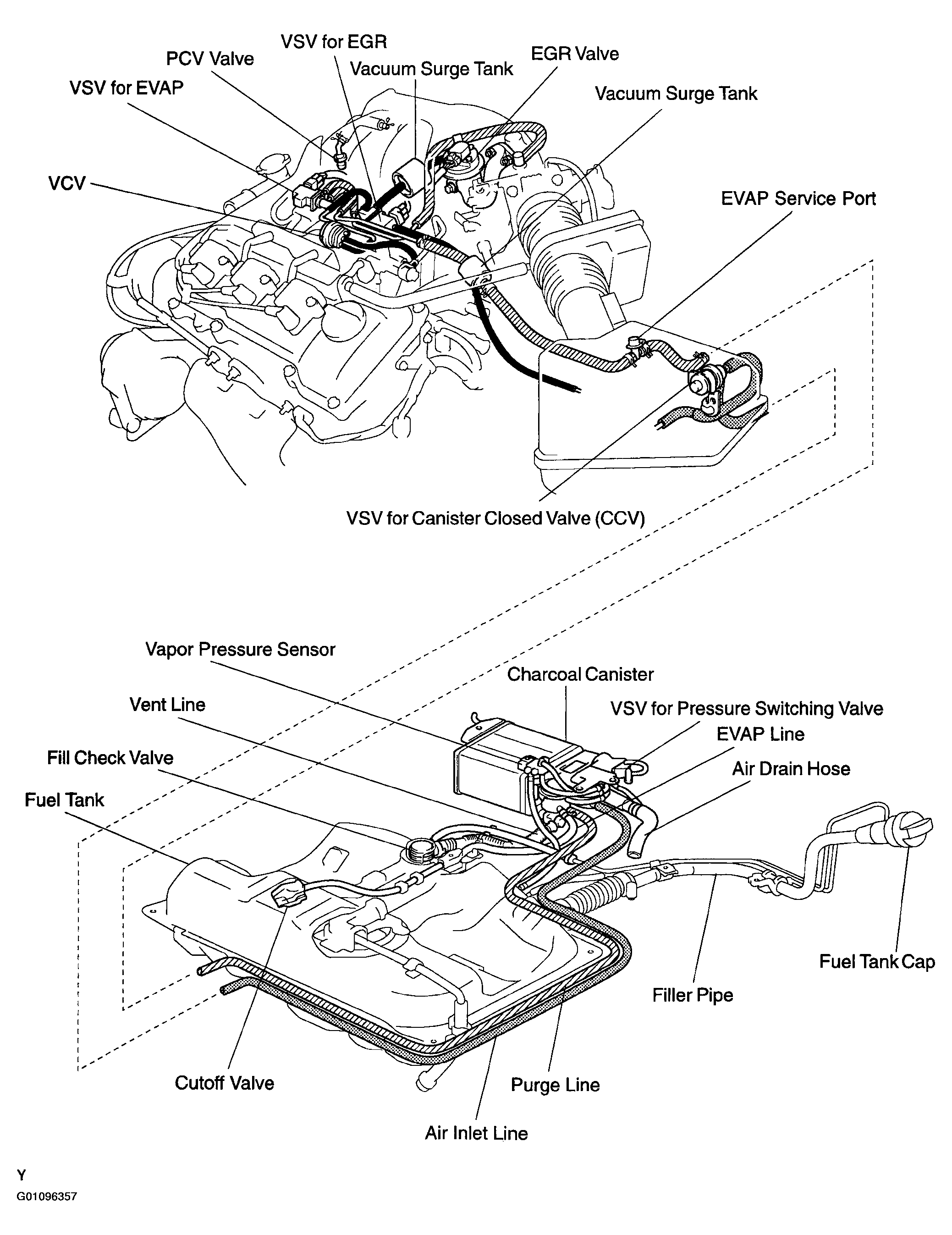

Fig 1: Locating Emission Control System Components (1 Of 2)
G01096357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
