Steering Column: Components

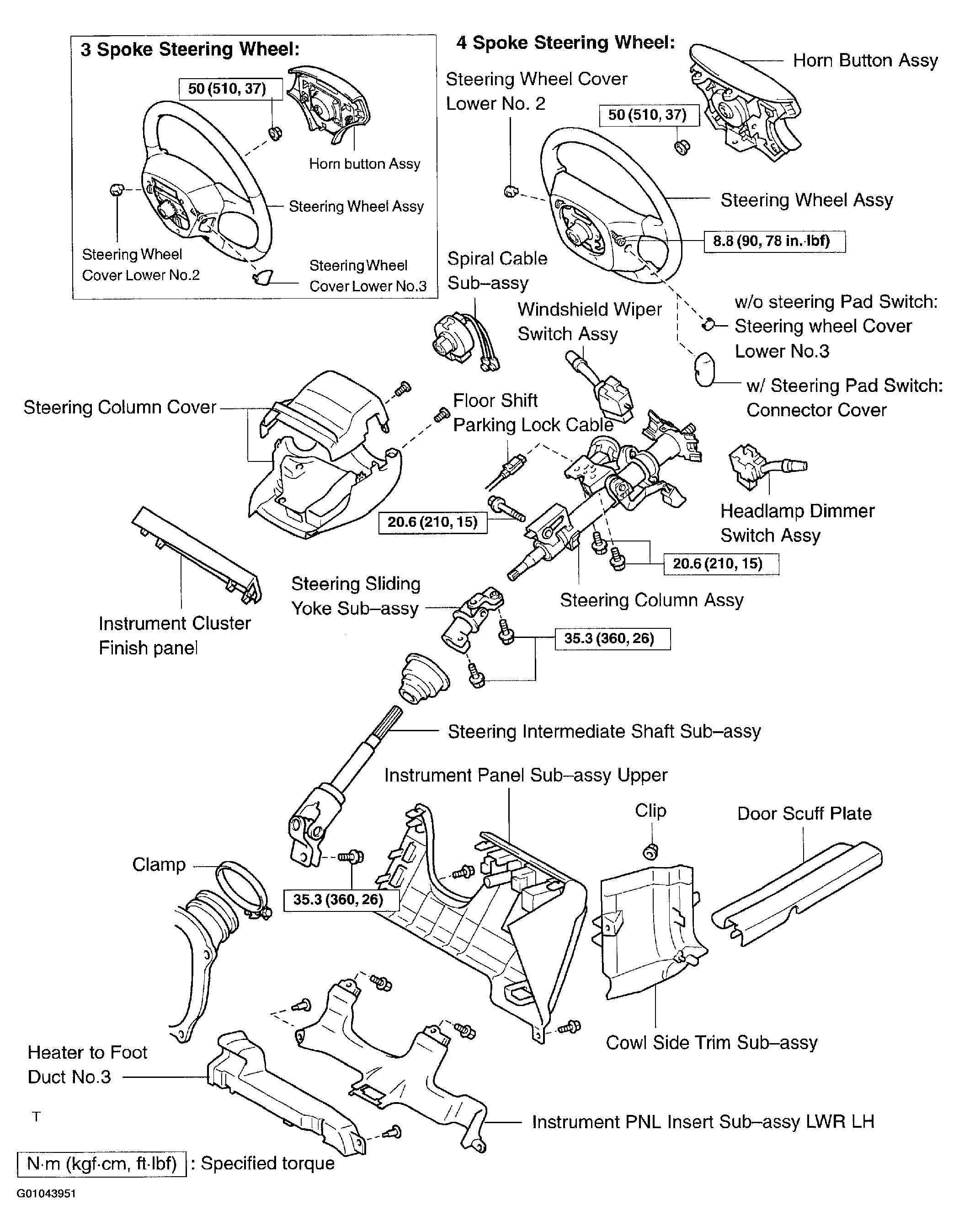

Fig 1: Identifying Steering Column Components - 1 Of 3
G01043951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

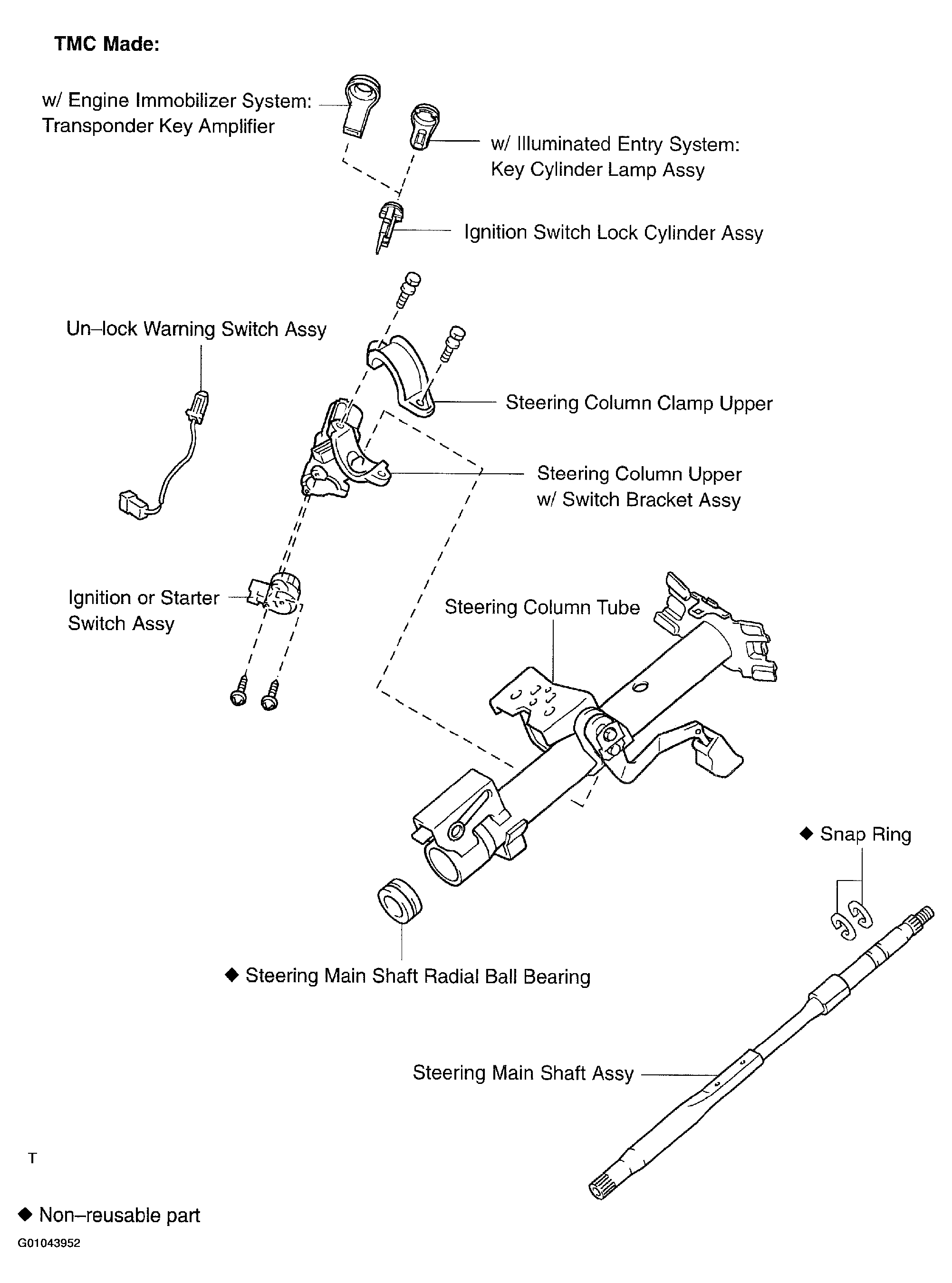

Fig 2: Identifying Steering Column Components - 2 Of 3 - (TMC Made)
G01043952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

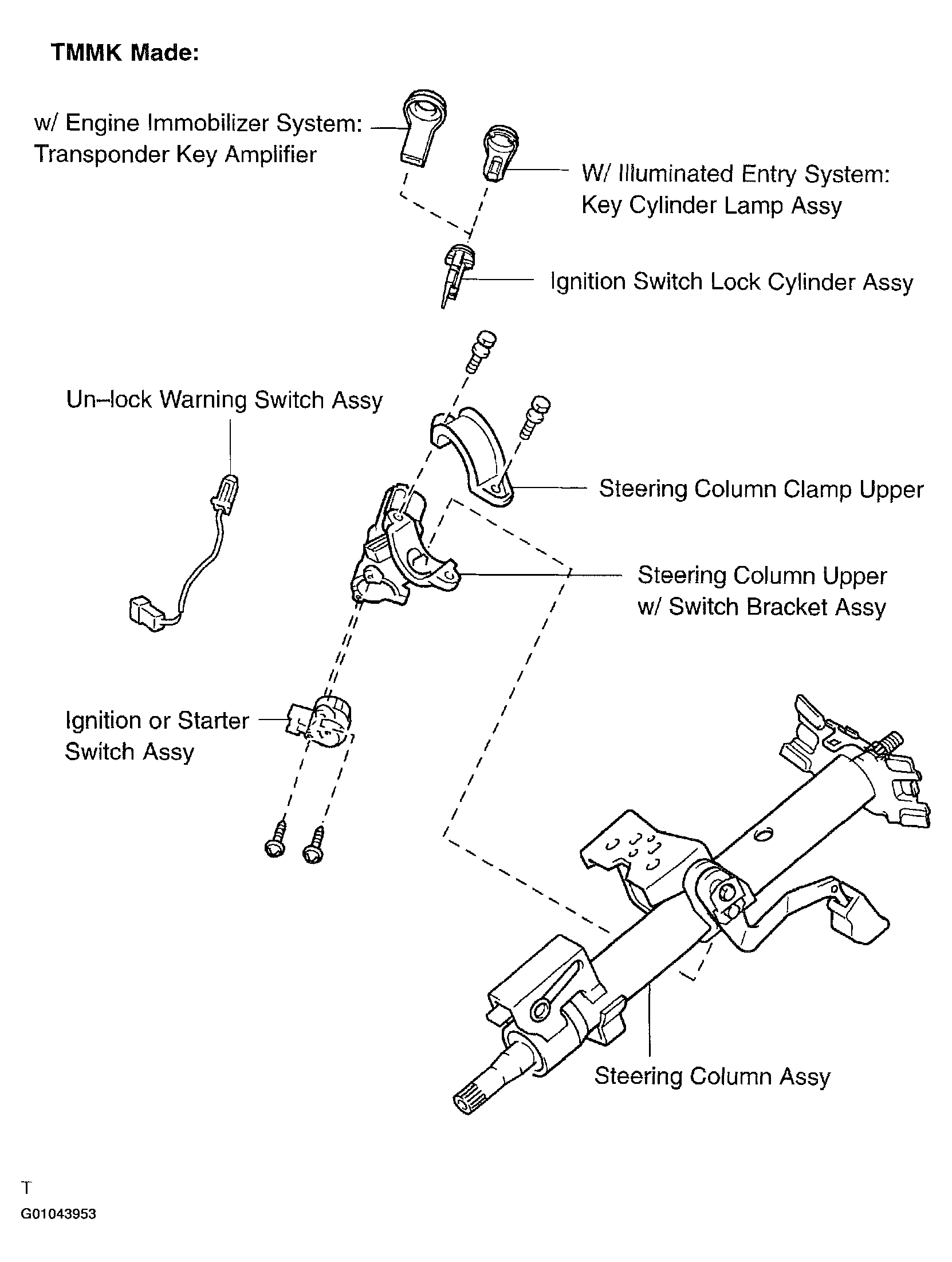

Fig 3: Identifying Steering Column Components - 3 Of 3 - (TMMK Made)
G01043953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
