Clutch Switch Assembly: Replacement

  1. Remove front door scuff plate LH. See step 15  under REPLACEMENT under INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY.
  2. Remove cowl side trim sub-assembly LH. See step 17  under REPLACEMENT under INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY.
  3. Remove instrument panel sub-assembly upper. See step 20  under REPLACEMENT under INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY.
  4. Remove instrument panel insert sub-assembly LWR LH (TMMK Made). See step 21  under REPLACEMENT under INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY.
  5. Remove clutch switch assembly.
    1. Disconnect the connector.
    2. Loosen the nut and remove the clutch switch assembly.

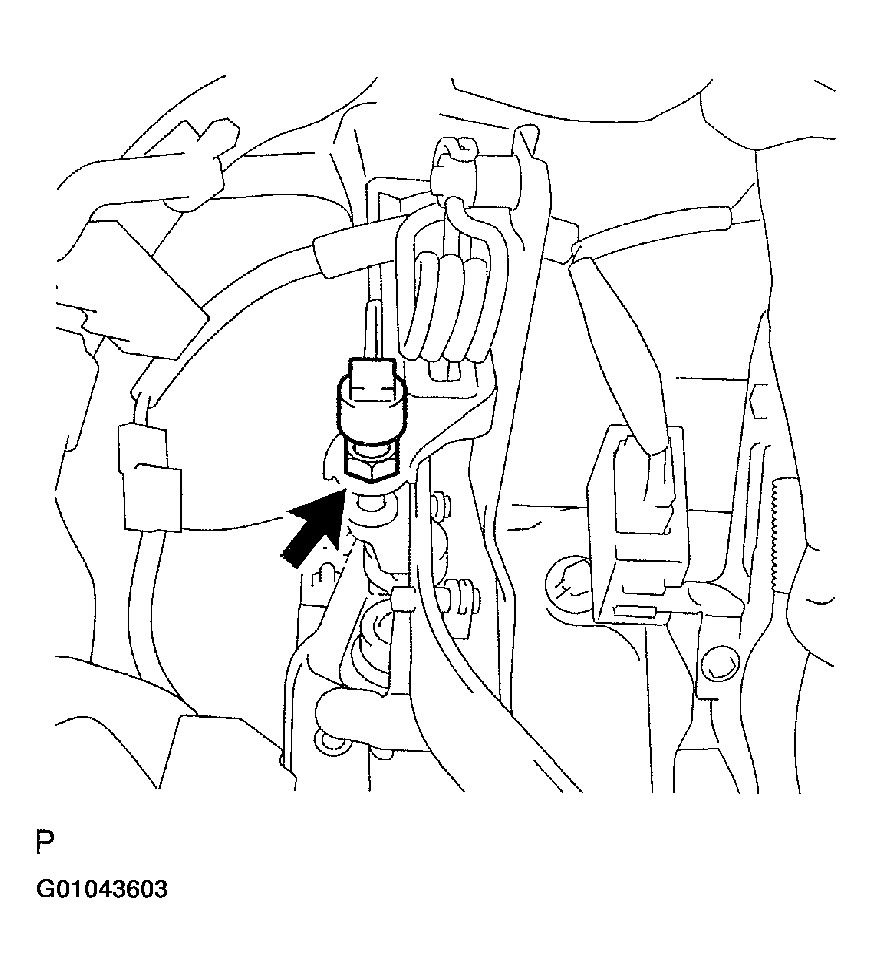

      Fig 1: Locating Nut For Removal Of Clutch Switch Assembly
      G01043603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
