Cruise Control Main Switch Assembly: Replacement

  1. Disconnect battery negative terminal.
  2. Remove steering wheel cover lower No. 2.
  3. Remove steering wheel cover lower No. 3 (w/o steering pad switch 4 spoke steering wheel).
  4. Remove connector cover (w/ steering pad switch 4 spoke steering wheel). See step  3 under REPLACEMENT.
  5. Remove steering wheel cover lower No. 3 (3 spoke steering wheel assembly).
  6. Inspect place front wheels facing straight ahead.
  7. Remove horn button assembly. See STEERING WHEEL .
  8. Remove steering wheel assembly.
    1. SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
  9. Remove steering pad switch (w/ steering pad switch 4 spoke steering wheel). See step  5 under REPLACEMENT.
  10. Remove cruise control main switch assembly.
    1. 4 spoke steering wheel assembly: Remove the 2 screws and steering wheel damper.

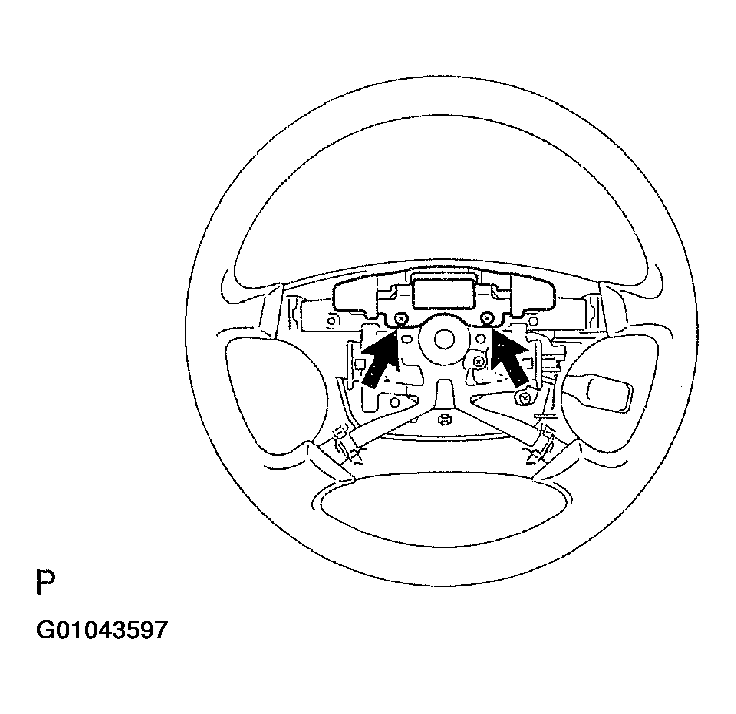

      Fig 1: Locating Screws For Removal Of Steering Wheel Damper
      G01043597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. 4 Spoke steering wheel assembly: Remove the 3 screws.

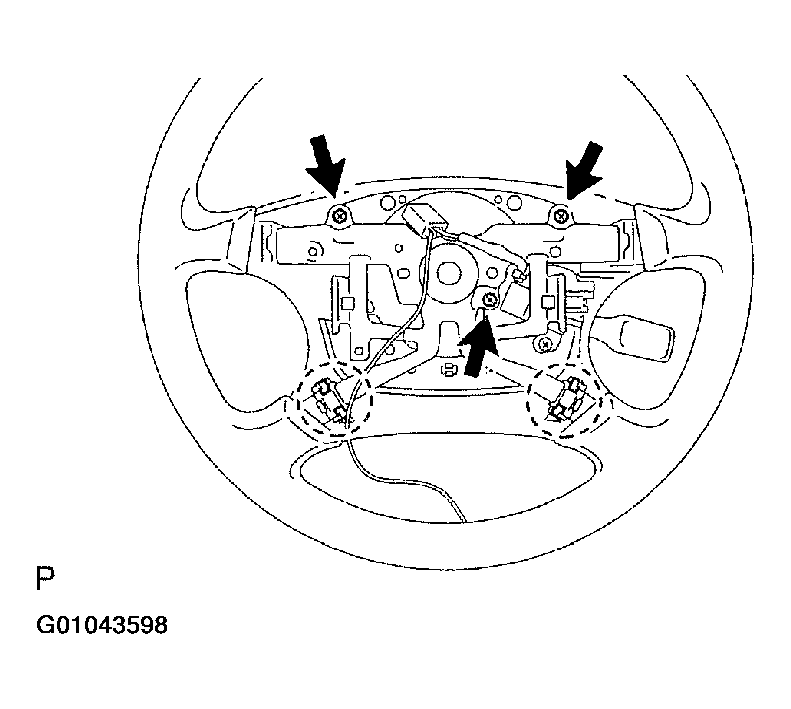

      Fig 2: Locating Screws For Removal Of Steering Wheel Boss Cover LWR
      G01043598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. 4 spoke steering wheel assembly: Disengage the 2 claws and remove the steering wheel boss cover LWR.
    4. 4 spoke steering wheel assembly: Remove the 2 screws and cruise control main switch assembly.

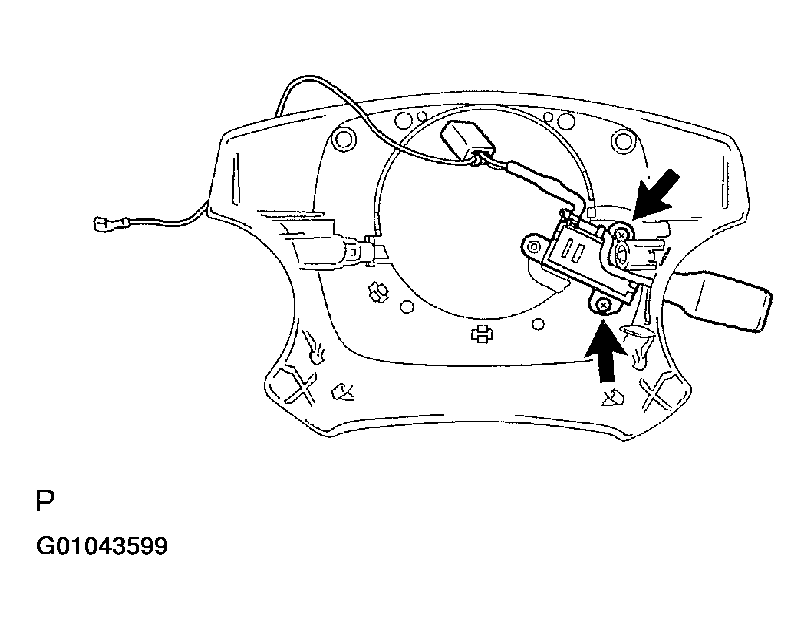

      Fig 3: Locating Screws For Removal Of Cruise Control Main Switch Assembly
      G01043599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. 3 spoke steering wheel assembly: Remove the 3 screws.

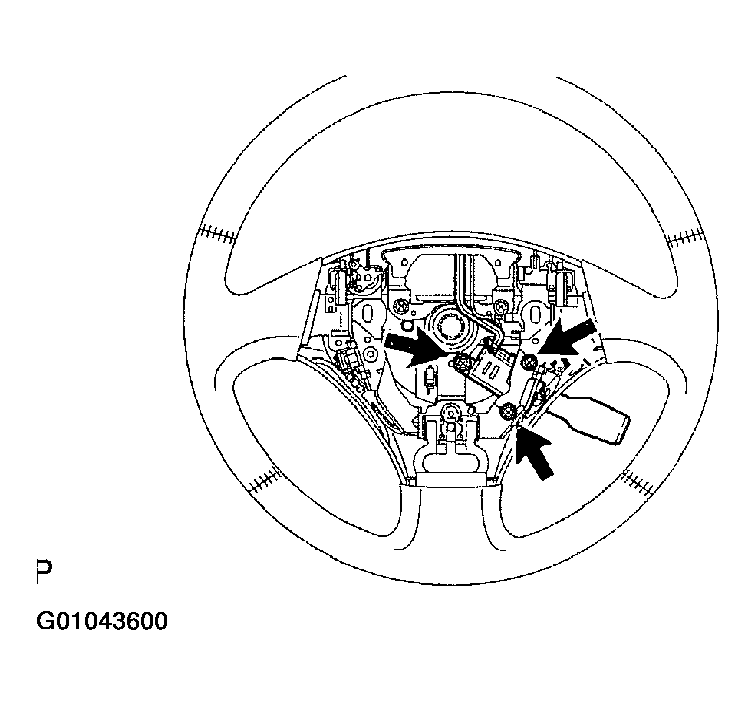

      Fig 4: Locating Screws For Removal
      G01043600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. 3 spoke steering wheel assembly: Reverse the steering wheel, remove the 3 screws and cruise control main switch assembly.

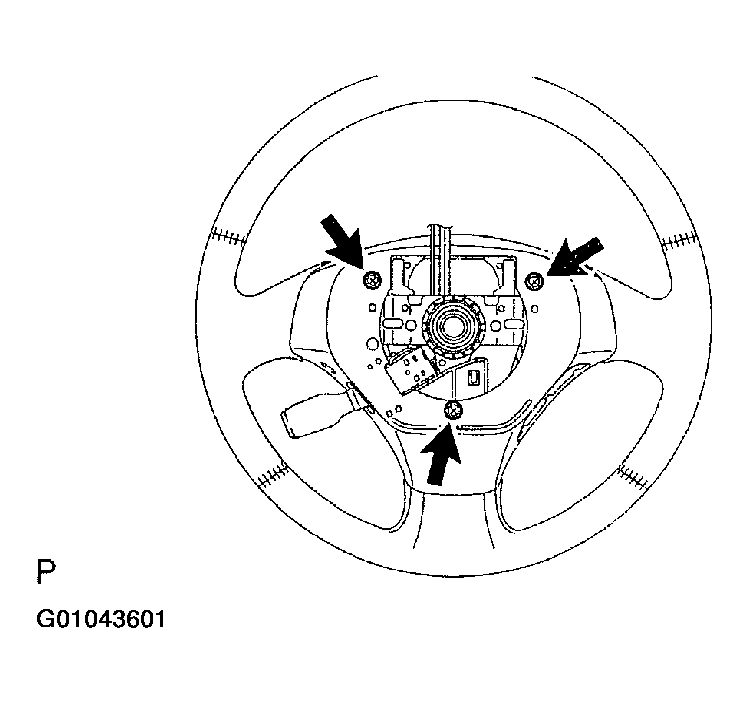

      Fig 5: Locating Screws For Removal Of Cruise Control Main Switch Assembly
      G01043601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the wiring pins other than the cruise control main switch assembly from the connector, and pull them out.

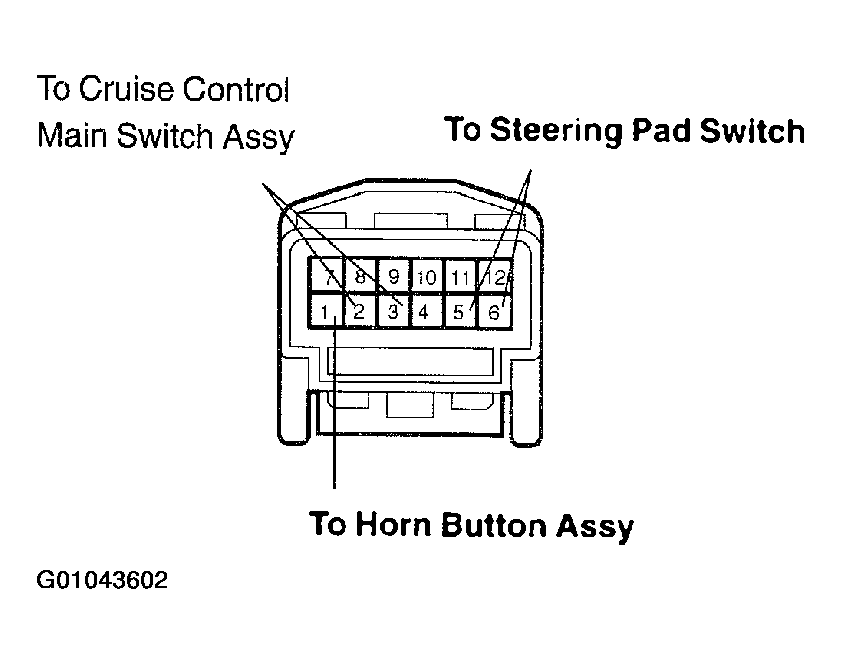

      Fig 6: Locating Wiring Pins For Removal From Connector
      G01043602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Center spiral cable. See SPIRAL CABLE CENTERING .
  12. Install steering wheel assembly. See step 65  under OVERHAUL under STEERING COLUMN ASSEMBLY (TMC Made) or step 58  under OVERHAUL under STEERING COLUMN ASSEMBLY (TMMK Made).
  13. Inspect steering wheel center point. See step 72  under OVERHAUL under STEERING COLUMN ASSEMBLY (TMC Made) or see step 65  under OVERHAUL under STEERING COLUMN ASSEMBLY (TMMK Made).
  14. Inspect horn button assembly. See STEERING WHEEL .
  15. Install horn button assembly. See STEERING WHEEL .
  16. Inspect SRS warning light.
