Engine Control Module

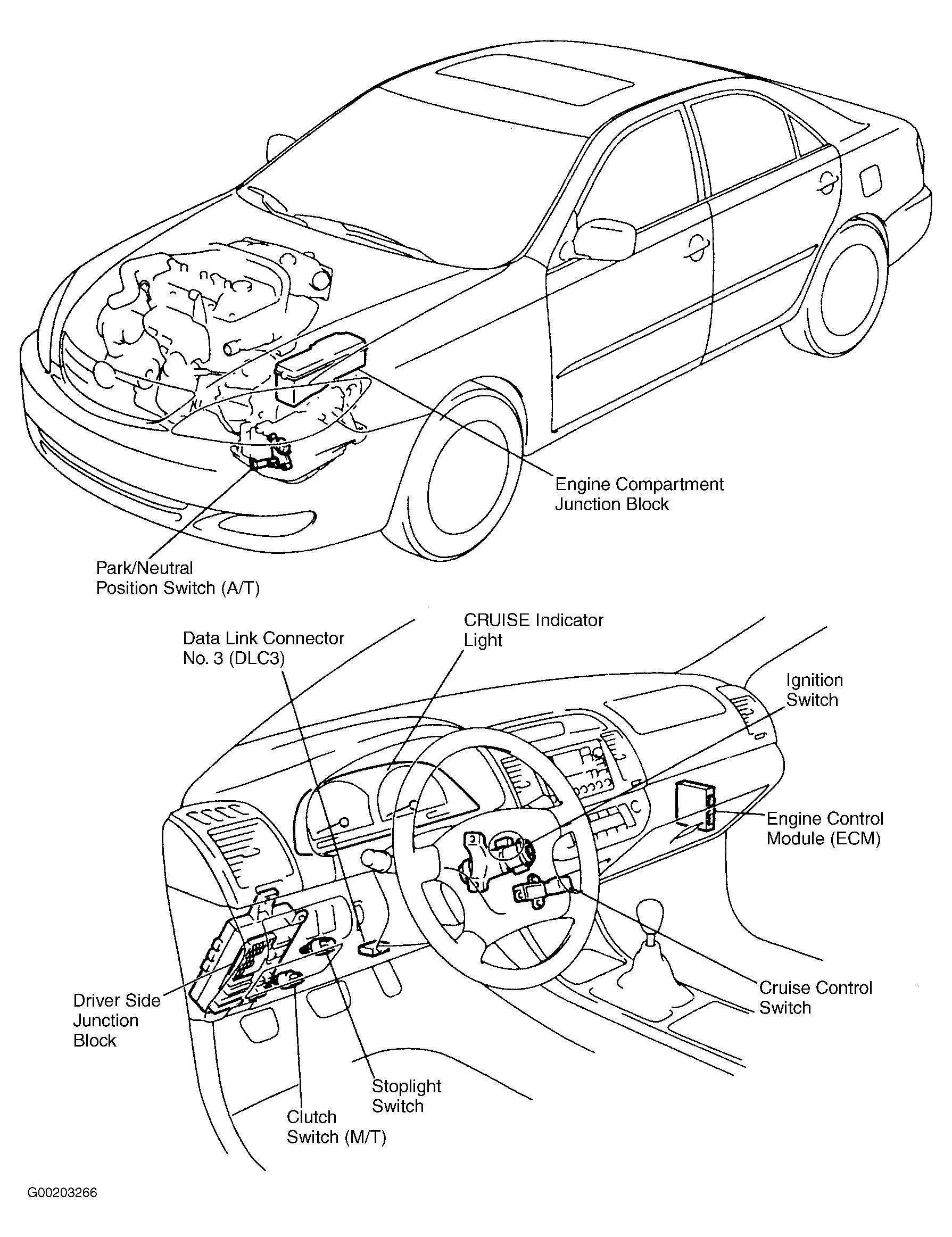

NOTE: Specific removal and installation procedures are not available from manufacturer. Use Figure as a reference and remove necessary hardware to access ECM. Ensure ground strap is used to prevent static electricity damage to ECM.
