Air Conditioning Control Assembly (Auto A/C): Components

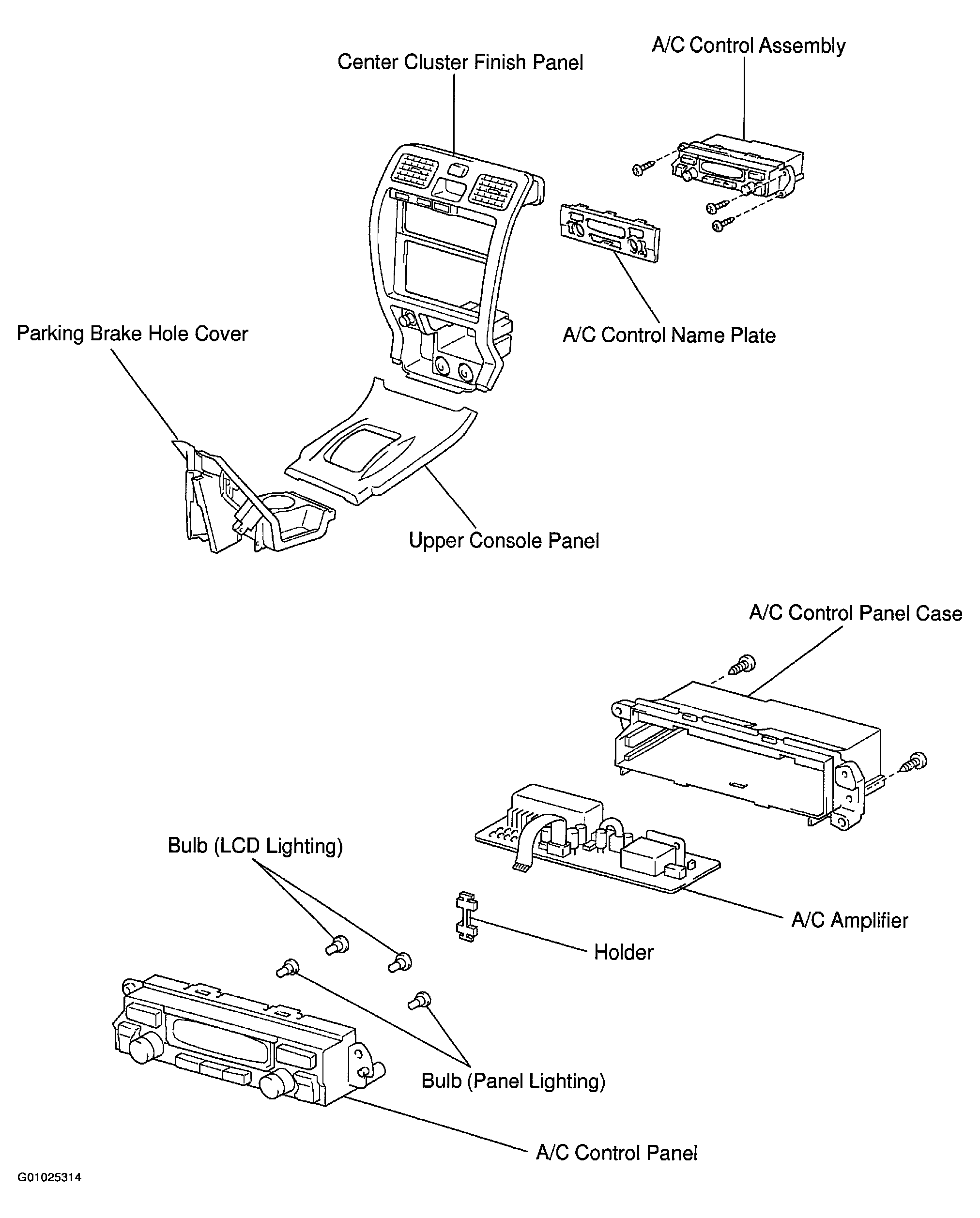

Fig 1: Displaying Air Conditioning Control Assembly Components

G01025314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
