Refrigerant Line: Replacement

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge Refrigerant From Refrigeration System
  2. Replace Faulty Tube Or Hose
    NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
  3. Torque Connections To Specified Torque
    NOTE: Connections should not be torqued tighter than the specified torque.

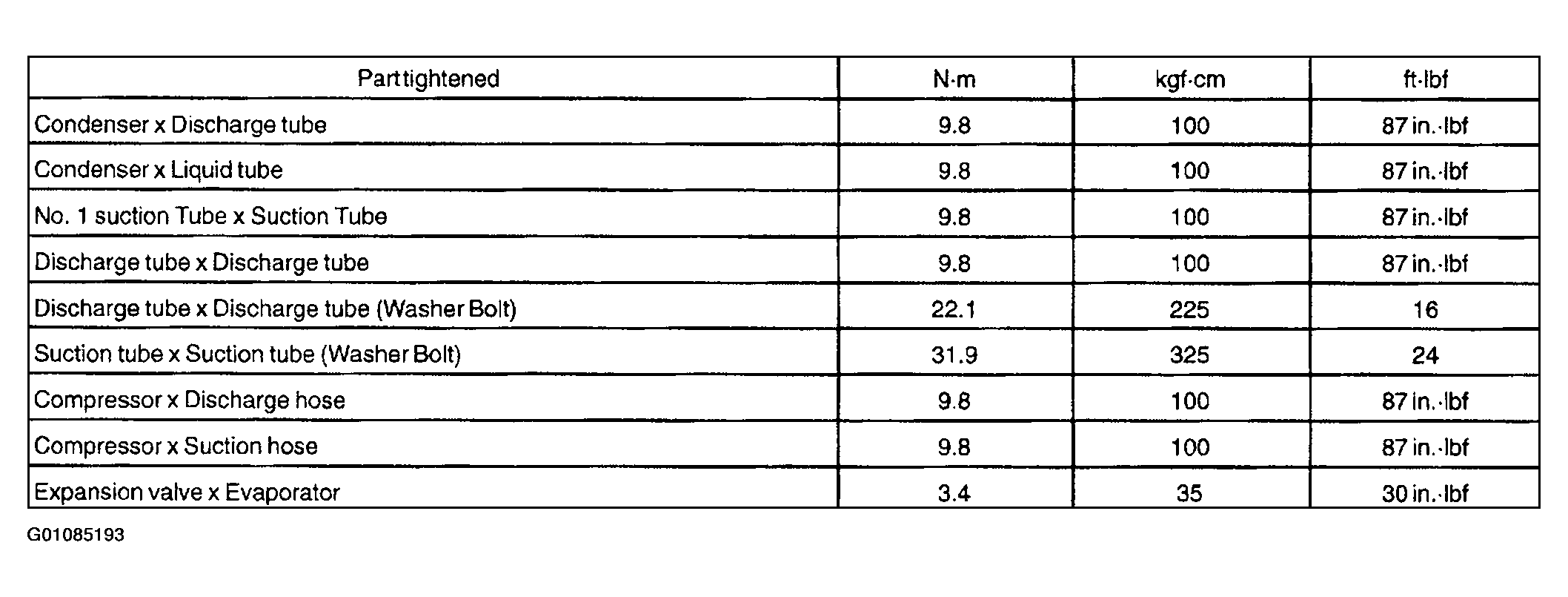

    Fig 1: Displaying Torque Measurement For Specified Part
    G01085193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Evacuate Air In Refrigeration System And Charge With Refrigerant

    Specified amount: 500 +/- 30 g (17.64 +/- 1.06 oz.)

  5. Inspect For Leakage Of Refrigerant

    Using a gas leak detector, check for leakage of refrigerant.

  6. Inspect Air Conditioning Operation
