Pressure Switch: Installation

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Pressure Switch
    1. Coat a new O-ring with compressor oil.
    2. Install the pressure switch to the liquid tube.

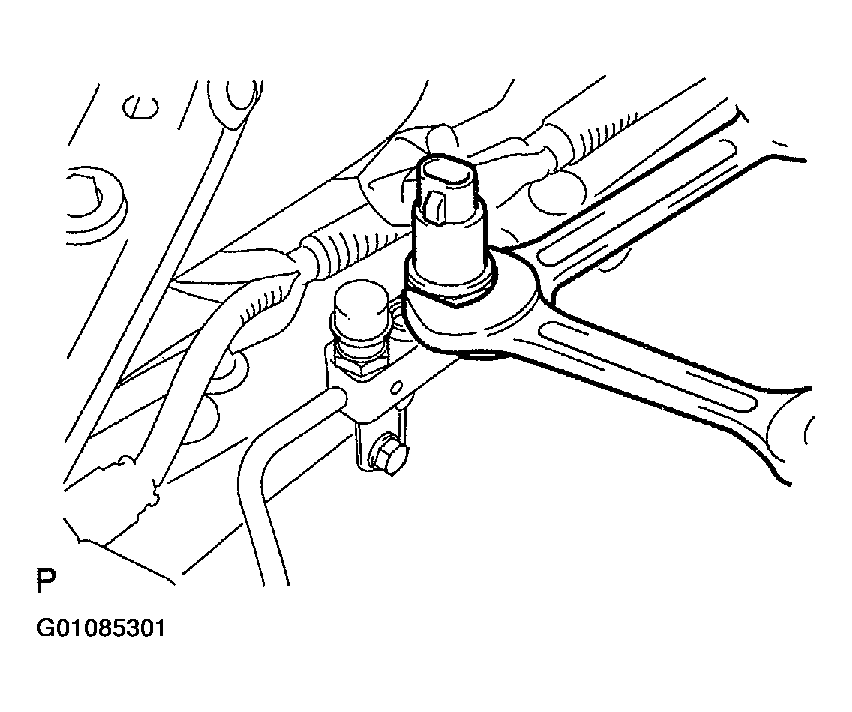

      Fig 1: Installing Pressure Switch
      G01085301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10.8 N.m (110 kgf.cm, 8 ft.lbf)

  2. Charge Refrigerant To Refrigerant System
    1. Evacuate air from refrigeration system.
    2. Charge system with refrigerant and inspect for leakage of refrigerant.

      Specified amount: 500 +/- 30 g (17.64 +/- 1.06 oz.)

  3. Install Luggage Compartment Trim Box Cover
  4. Install Tool Box Assembly
