Heater Unit: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

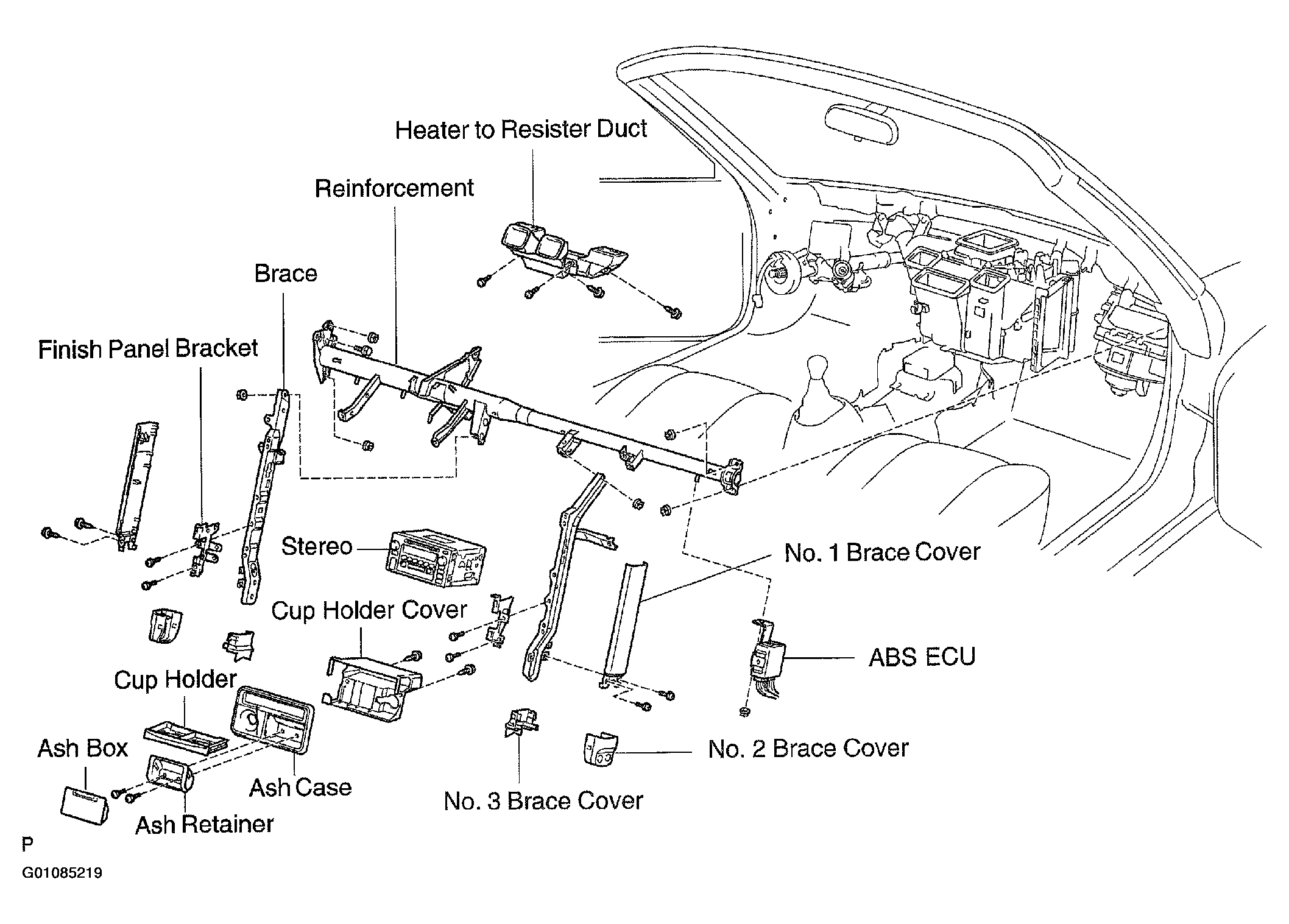

Fig 1: Displaying Heater Unit System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

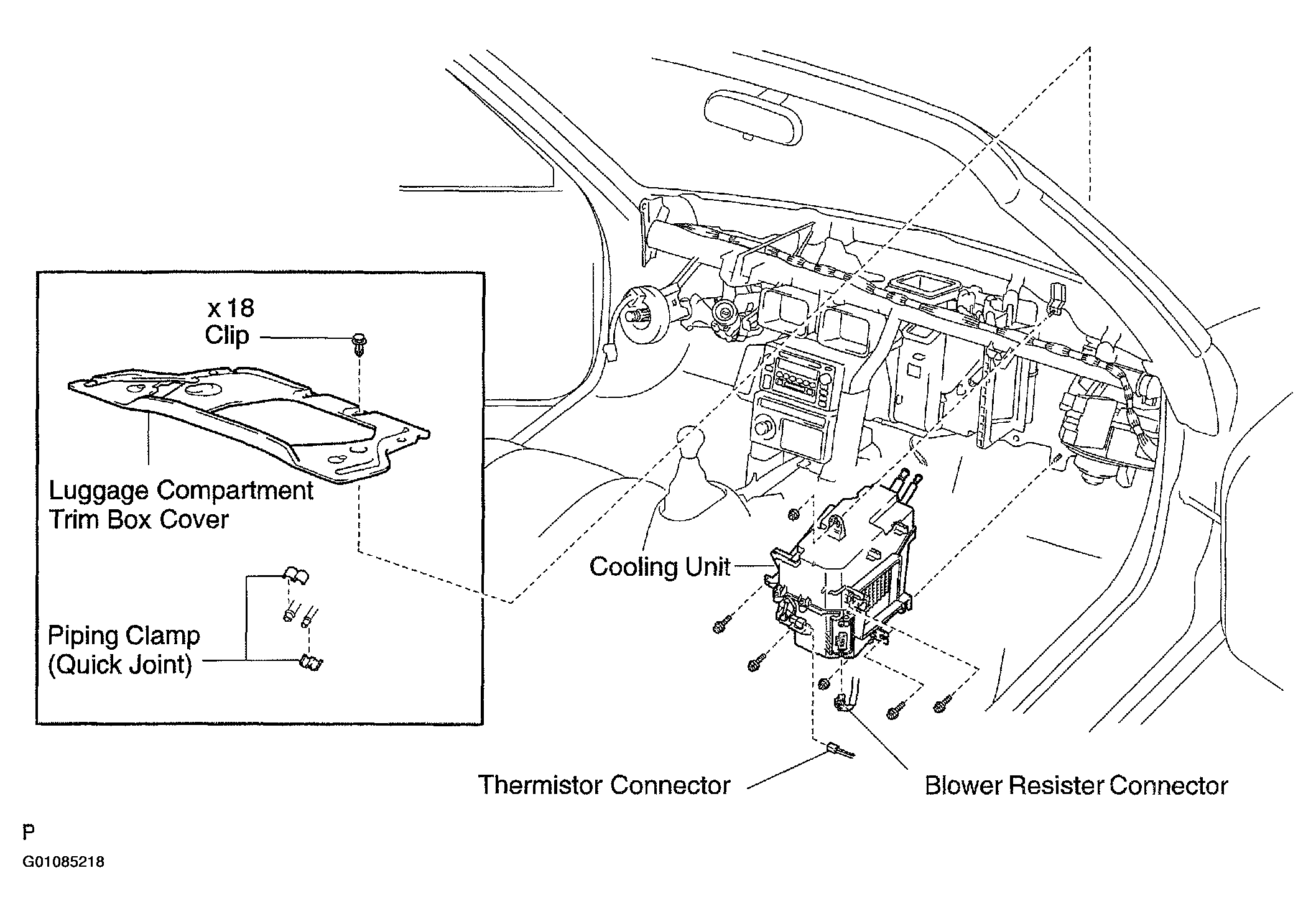

Fig 2: Displaying Placement Of Cooling Unit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

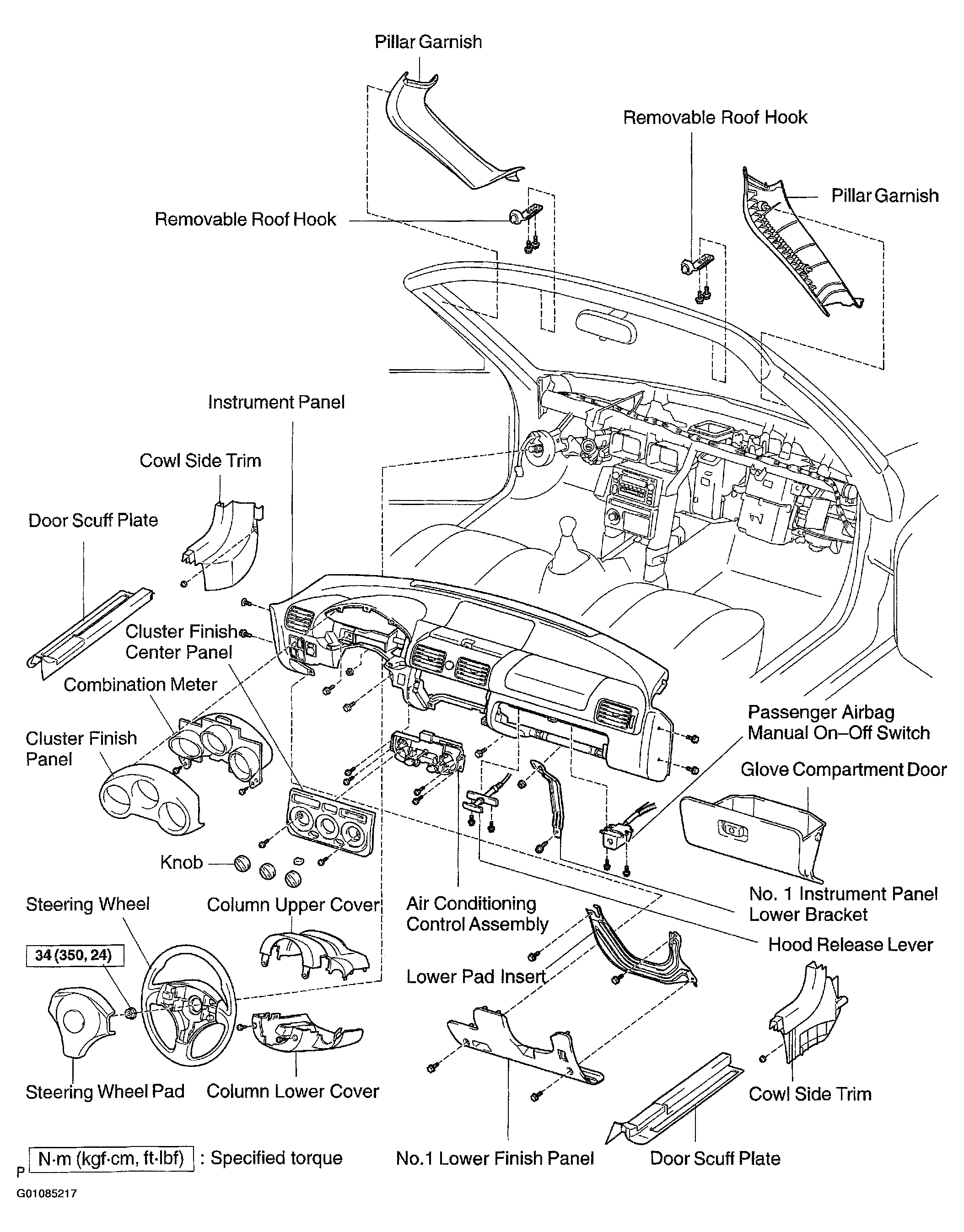

Fig 3: Displaying Instrument Panel Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

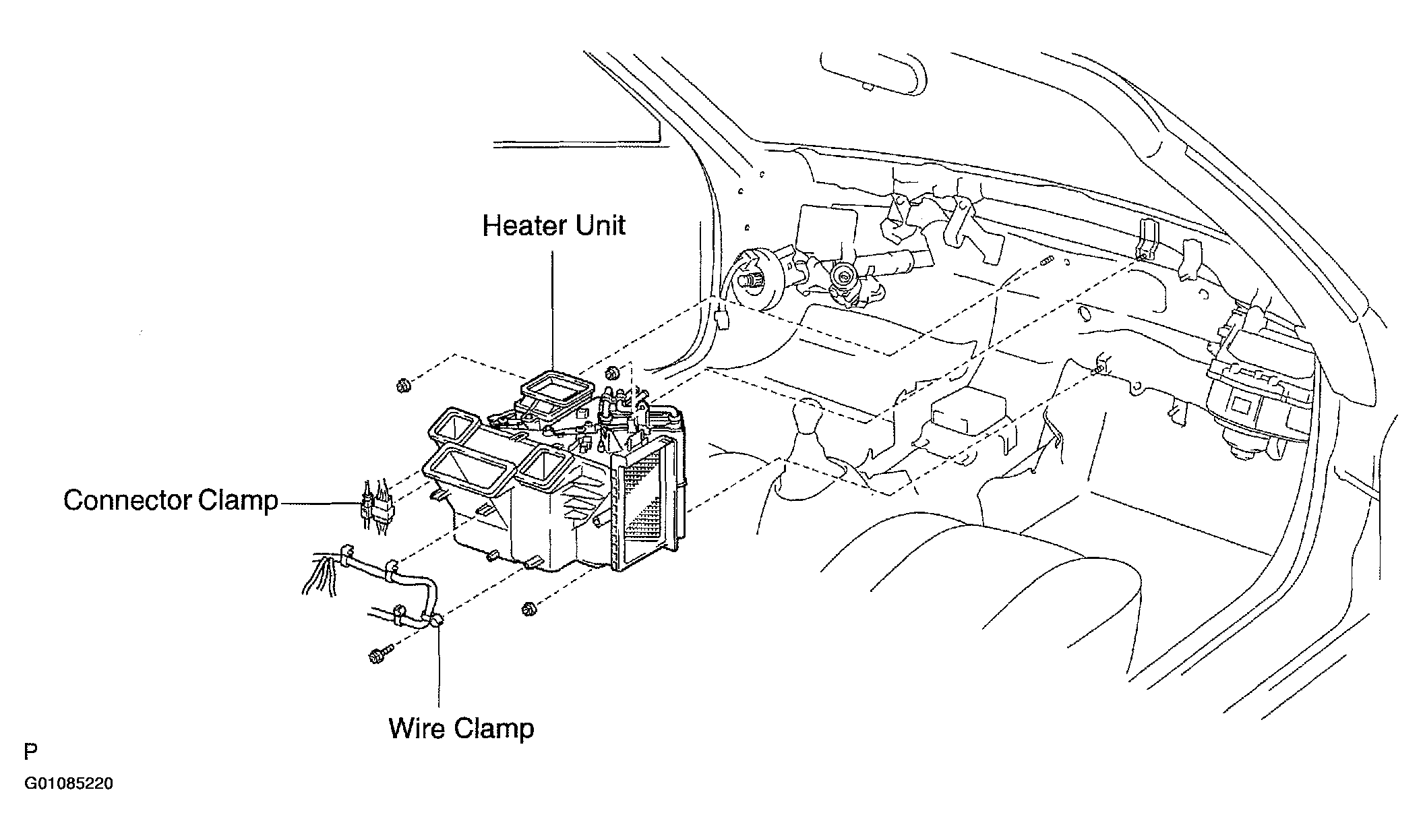

Fig 4: Displaying Heater Unit Installation

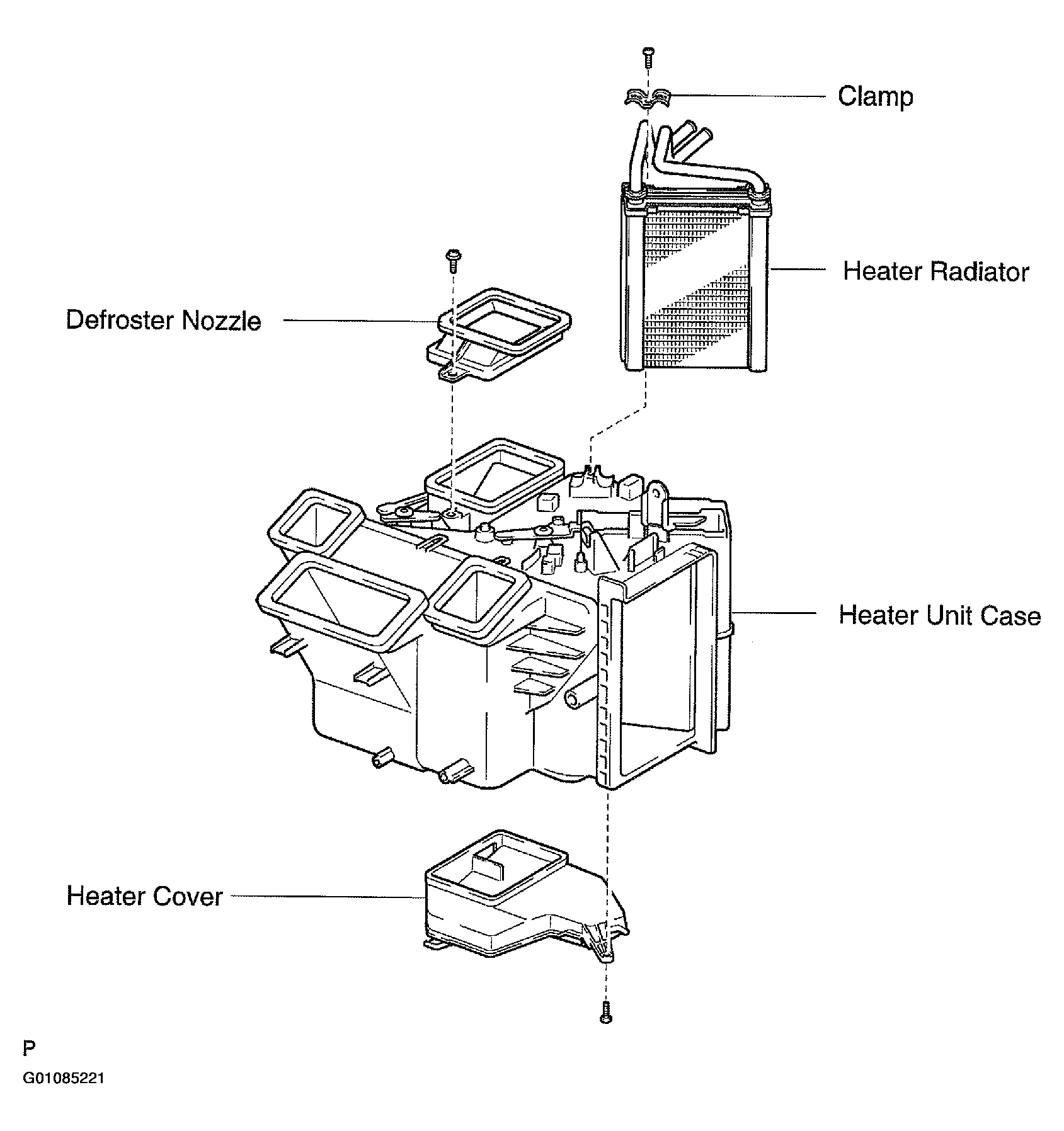

Fig 5: Displaying Heater Unit Components
