Heater Control Assembly: Installation

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Install Heater Control Assembly
1. Connect the 2 connectors to the heater control assembly.
2. Pass through the A/C control cables as shown in Fig 1.

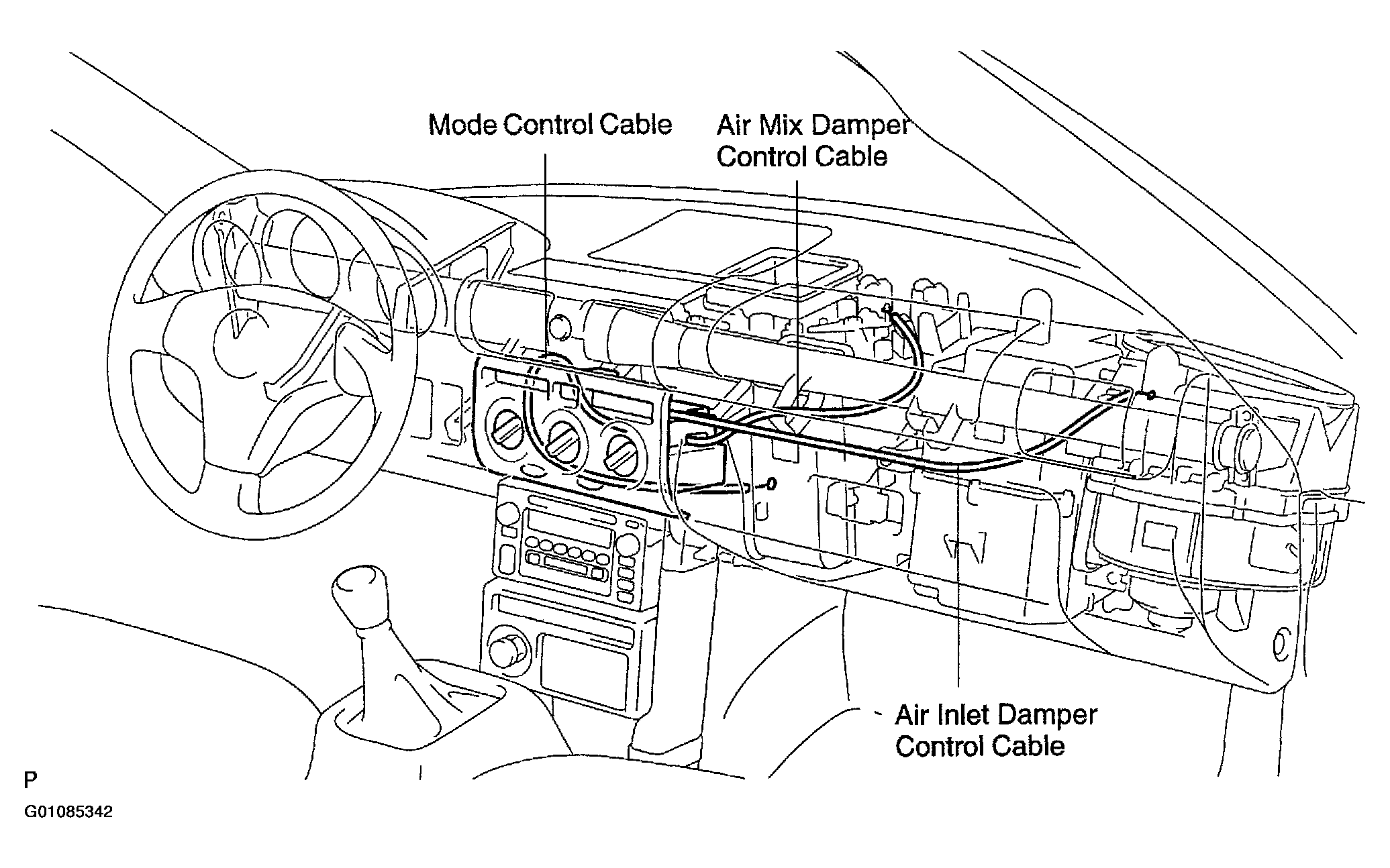

  Fig 1: Installing A/C Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the heater control assembly with the 4 screws.

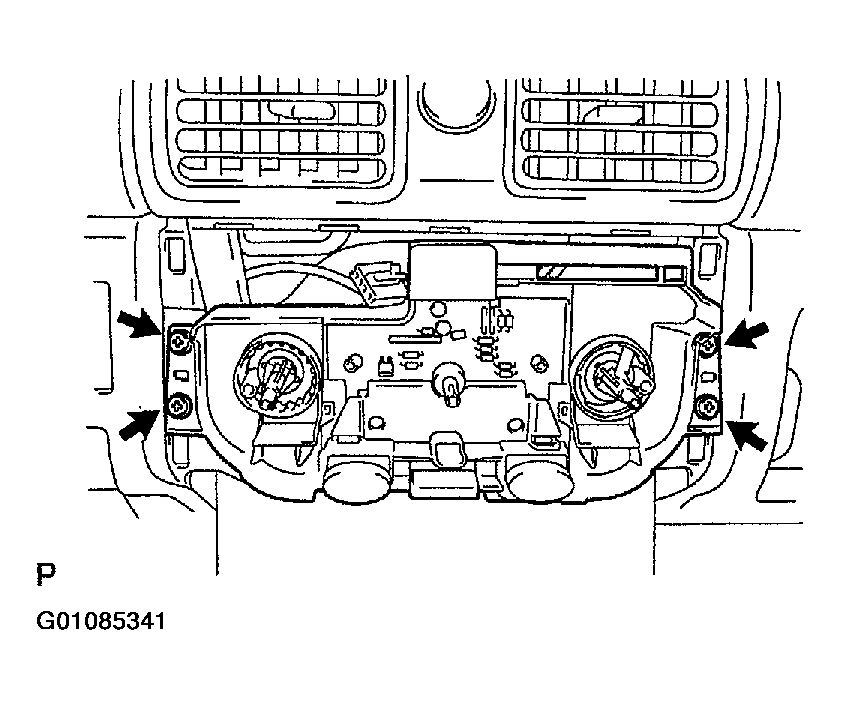

  Fig 2: Locating Screws For Installation Of Heater Control
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Center Cluster Finish Panel
1. Connect the clock connector to the clock.
2. Install the center cluster finish panel with the 2 screws.

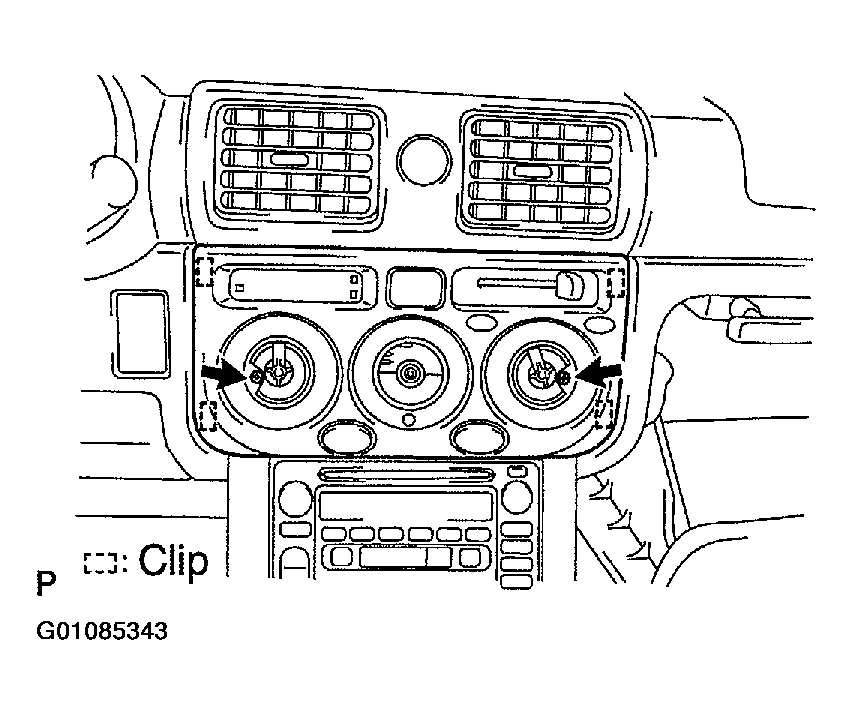

  Fig 3: Locating Screws For Installation Of Center Cluster
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 knobs.
Connect Heater Control Cables
1. Set the air inlet control lever to "RECIRC" position.
2. Set the temperature control dial to "MAX. COOL" position.
3. Set the mode control dial to "FACE" position.
4. Adjust the air inlet damper control cable.
  Set the air inlet damper control lever to "RECIRC" position and connect the inner cable to lever pin and clamp the outer cable.

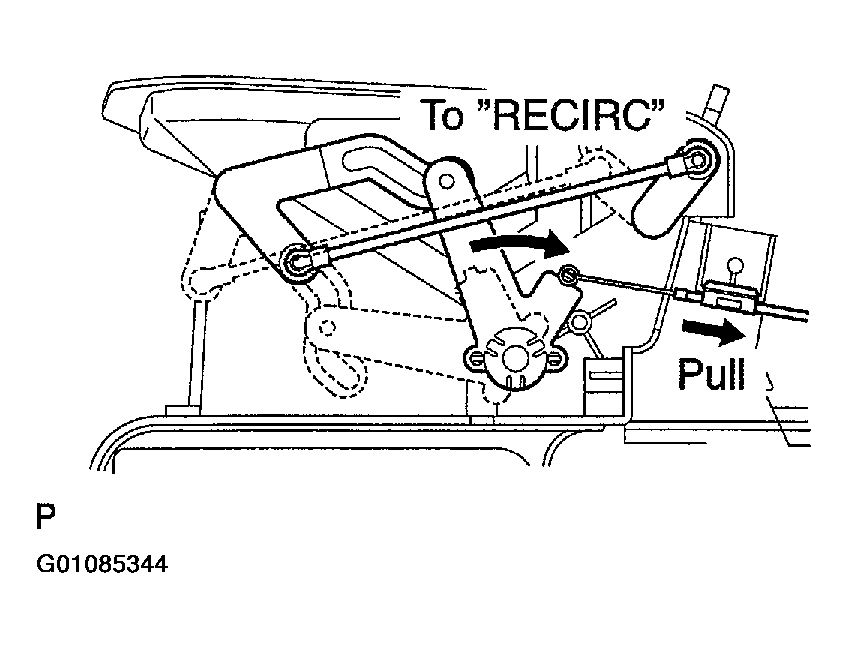

  Fig 4: Adjusting Air Inlet Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in Fig 4.
5. Adjust air mix damper control cable.
  Set the air mix damper control lever to "MAX. COOL" position and connect the inner cable to lever pin and clamp the outer cable.

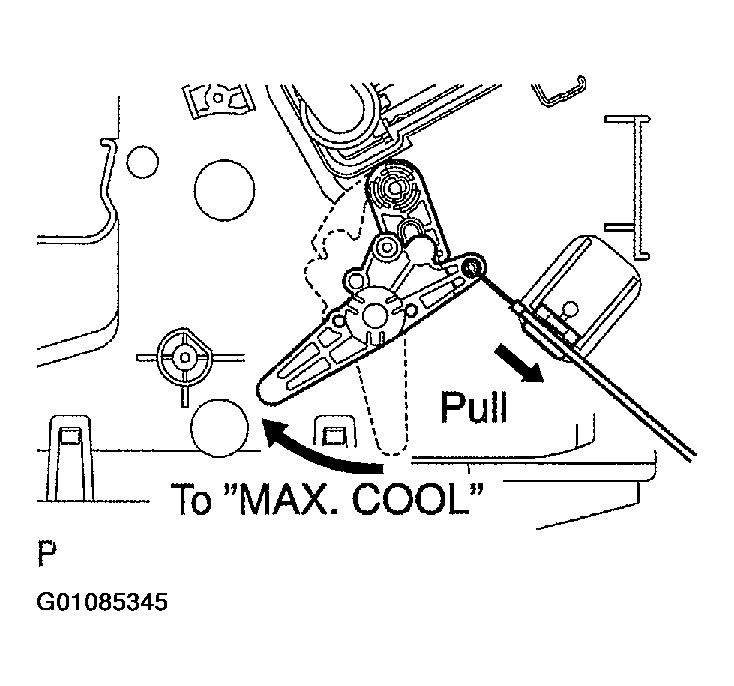

  Fig 5: Adjusting Air Mix Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in Fig 5.
6. Adjust the mode control cable.
  Pull the air outlet damper control link to "FACE" position, connect the control cable and lock the clamp.

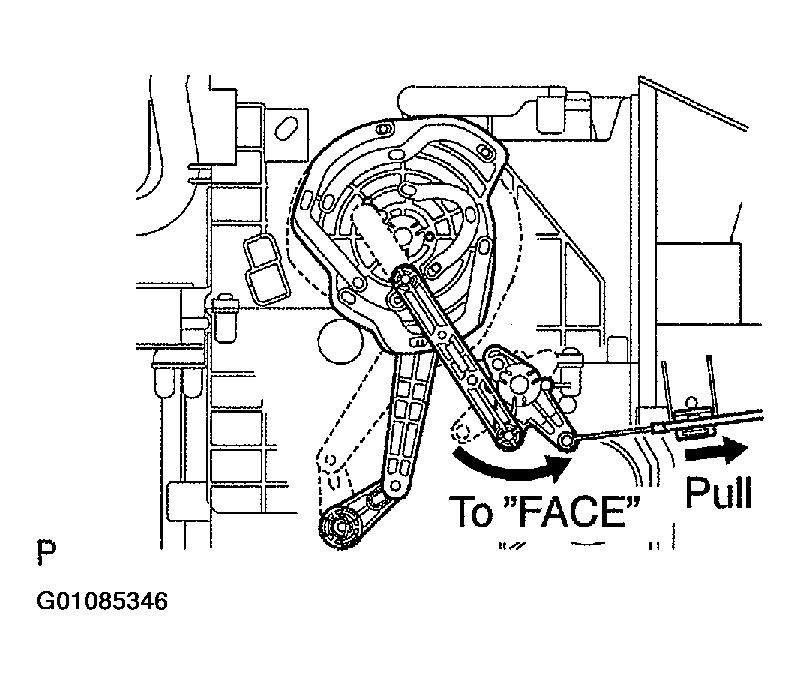

  Fig 6: Adjusting Mode Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in Fig 6.
