Heater Control Assembly: Inspection

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect Illumination Operation

    Connect the positive (+) lead from the battery to terminal 8 and negative (-) lead to terminal 10 then check that the illuminations lights up.

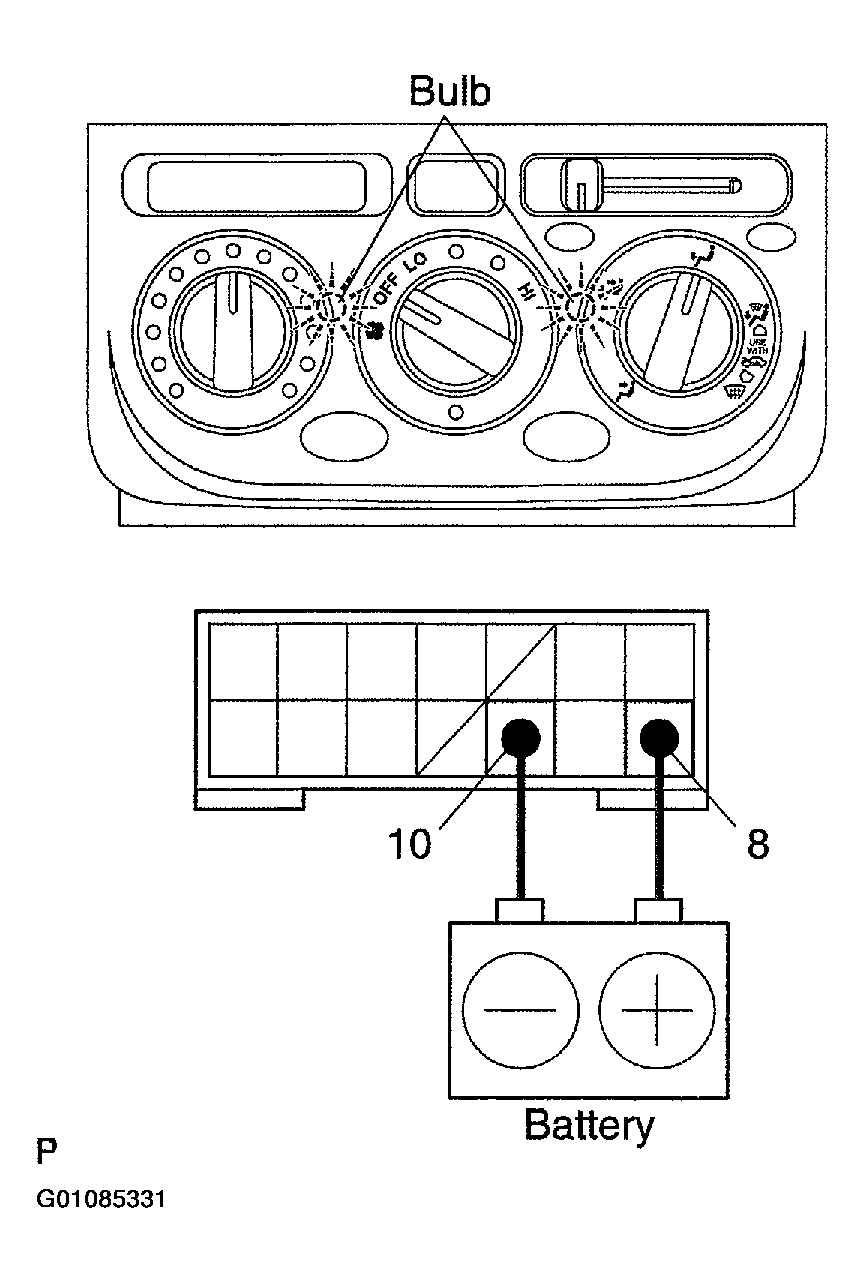

    Fig 1: Inspecting Illumination Operation
    G01085331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, check the faulty bulb.

  2. Inspect Bulb

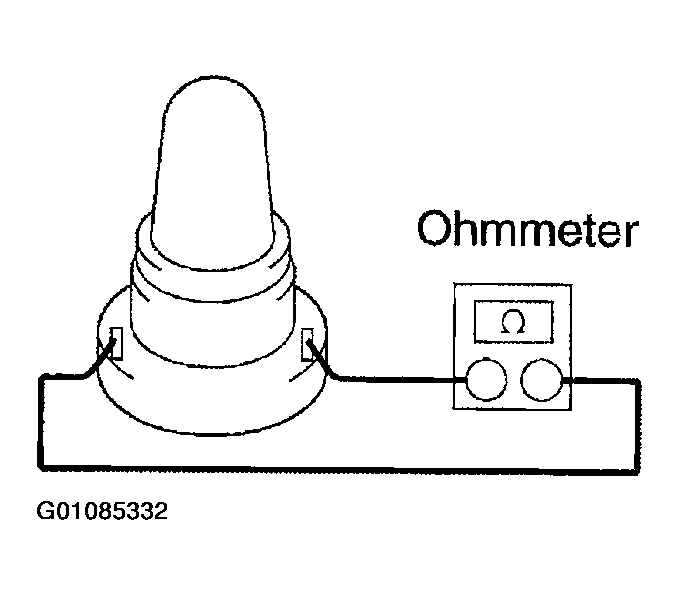

    Using an ohmmeter, apply the tester as shown in Fig 2 to test for continuity.

    Fig 2: Inspecting Bulb
    G01085332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity exists, replace the heater control.

    If no continuity exists, replace the bulb.

  3. Inspect A/C Indicator Operation
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminals 4 and 14.

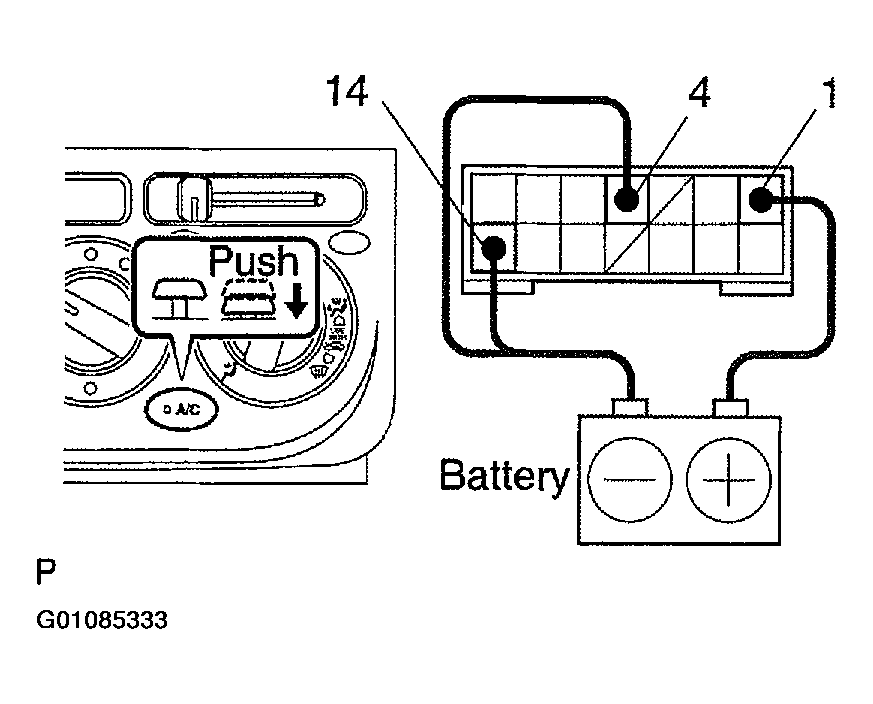

      Fig 3: Inspecting A/C Indicator Operation
      G01085333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the A/C button in and then check that the indicator lights up.

      If operation is not as specified, replace the switch.

  4. Inspect Dimming Operation
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminals 4 and 14 while pressing the switch.

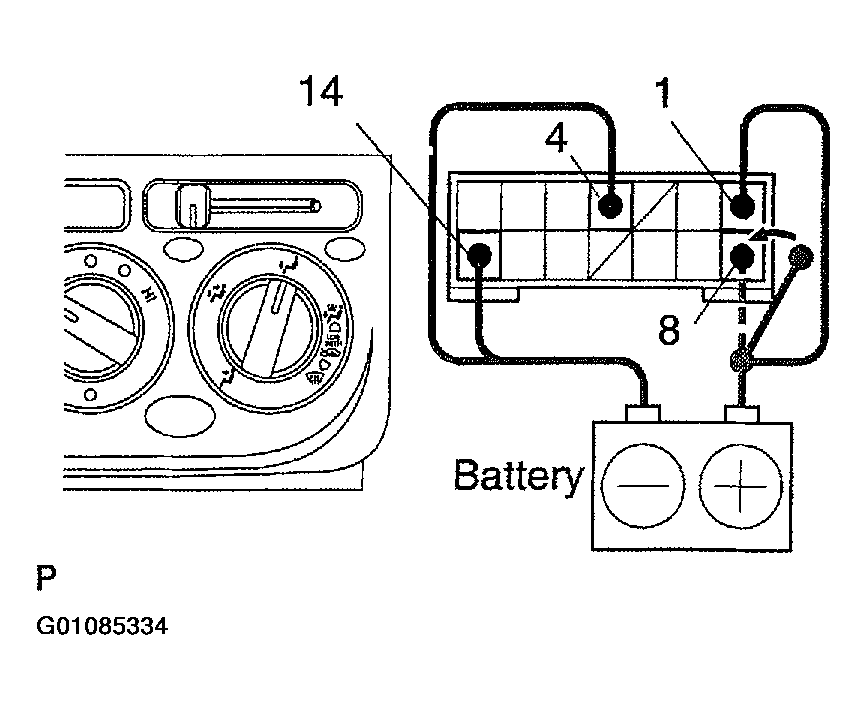

      Fig 4: Inspecting Dimming Operation
      G01085334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the positive (+) lead from battery to terminal 8 and then check that the indicator dims.

      If operation is not as specified, replace the switch.

  5. Inspect A/C Switch Continuity

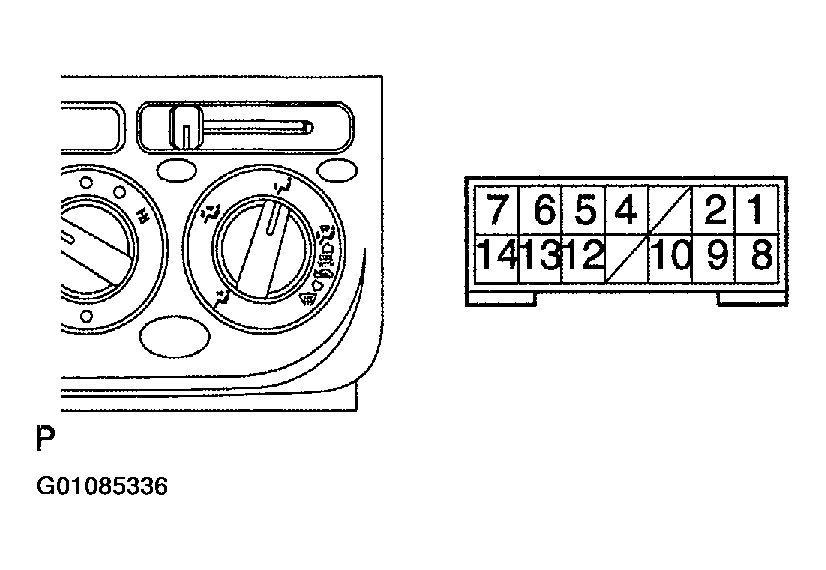

    Fig 5: Displaying A/C Switch & Terminals
    G01085336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

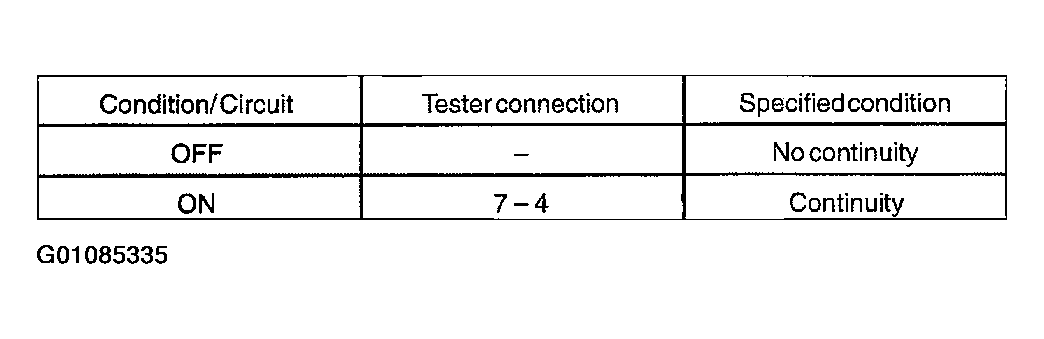

    Fig 6: Displaying A/C Continuity Based On Condition
    G01085335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Switch continuity:

      If continuity is not as specified, replace the switch.

    2. Illumination circuit:

      If continuity is not as specified, replace the bulb.

  6. Inspect Blower Speed Control Switch Continuity

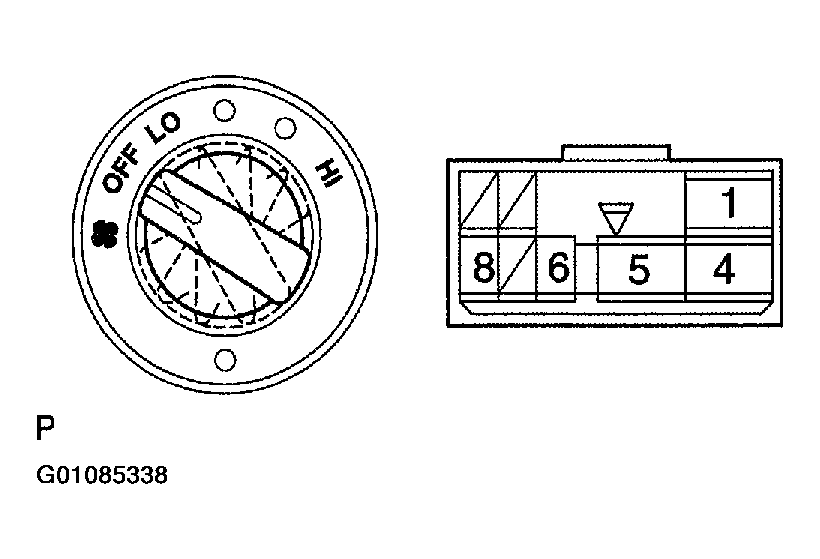

    Fig 7: Display Blower Speed Control & Terminals
    G01085338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

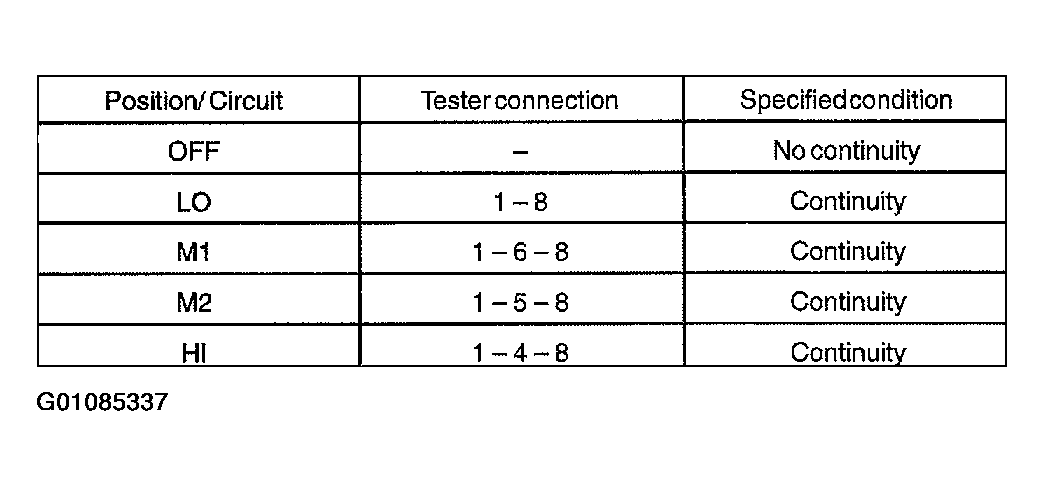

    Fig 8: Displaying Blower Speed Continuity Based On Condition
    G01085337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  7. Inspect Defroster Mode Switch Operation

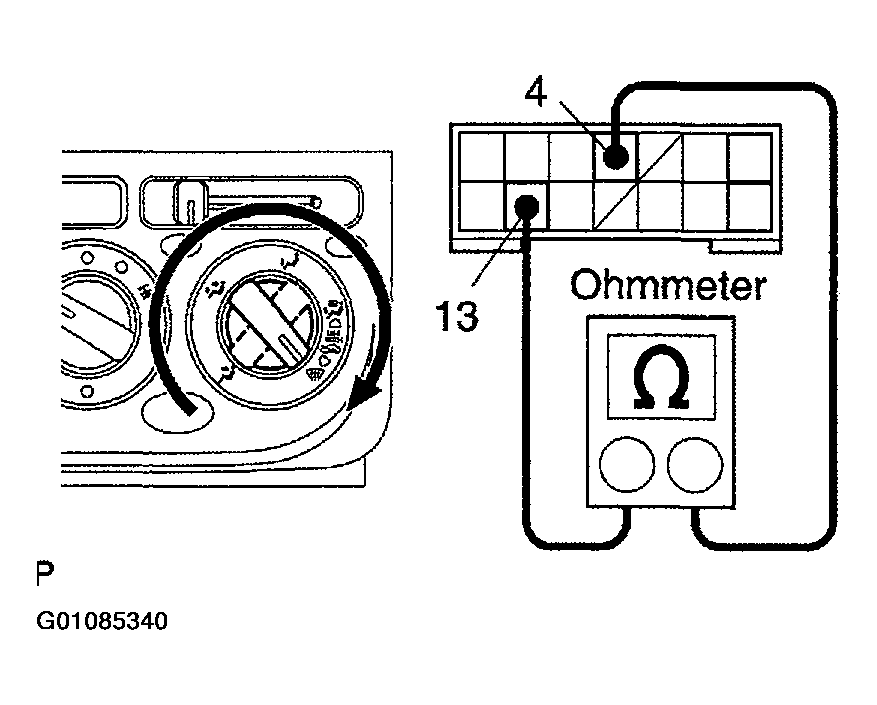

    Fig 9: Displaying Defroster Mode Switch & Circuit
    G01085340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

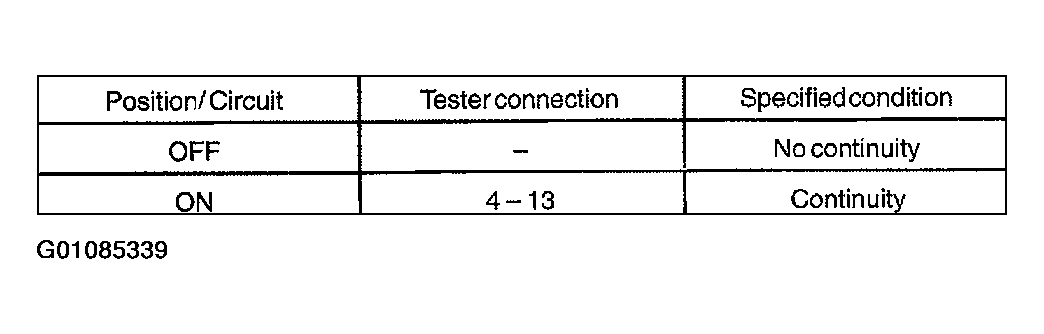

    Fig 10: Displaying Defroster Mode Operation Based On Condition
    G01085339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If no continuity exists, replace the switch.

  8. Inspect Rear Defogger Switch Operation. See  INSPECTION  .
  9. Inspect Security Indicator Light. See  SECURITY INDICATOR LIGHT CIRCUIT  .
  10. Inspect Passenger Airbag Manual On-Off Indicator Operation. See  PASSENGER-SIDE AIR BAG CUT-OFF SWITCH  .
