Heater Control Assembly: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

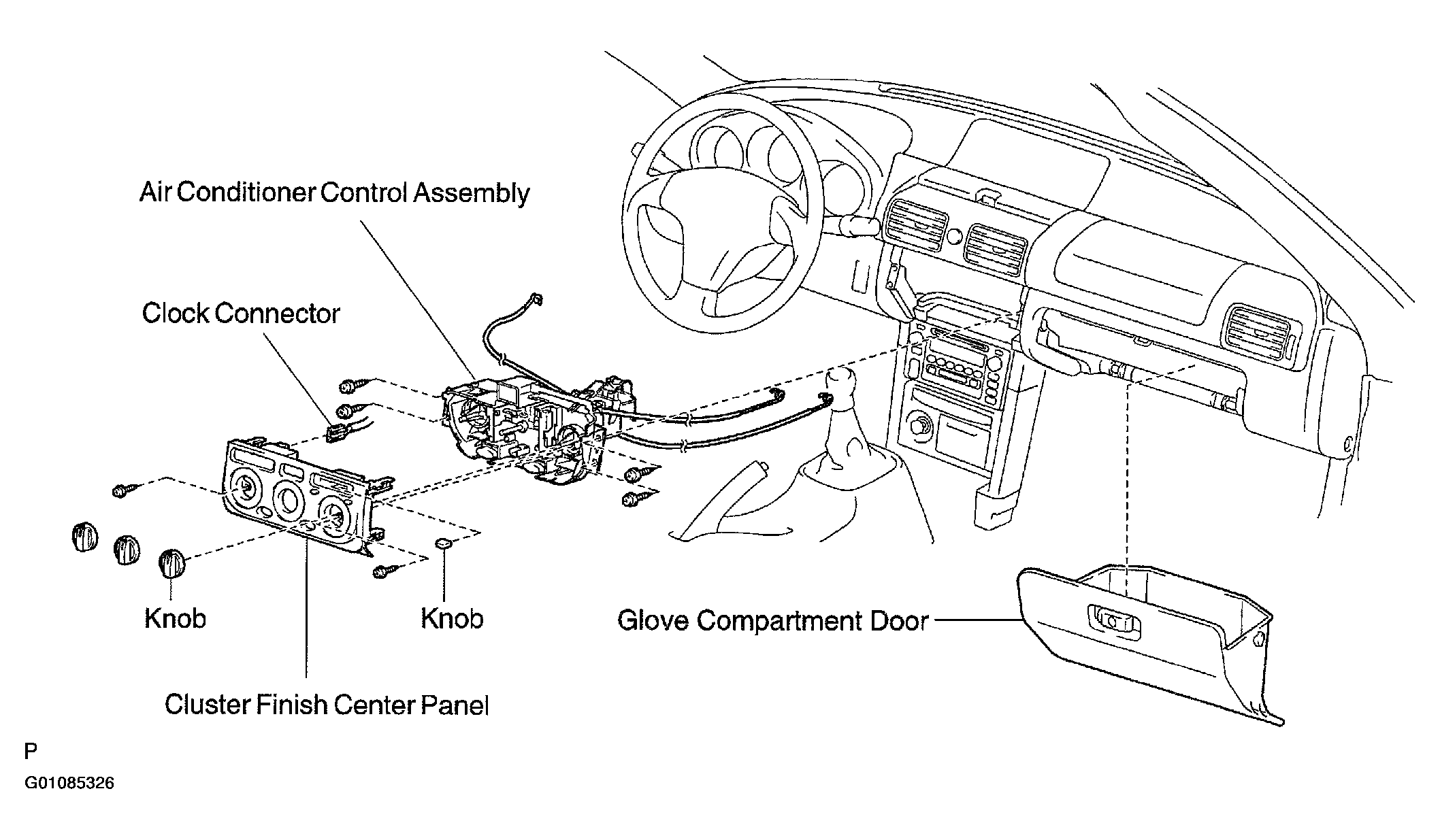

Fig 1: Displaying Air Conditioner Control Components
G01085326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

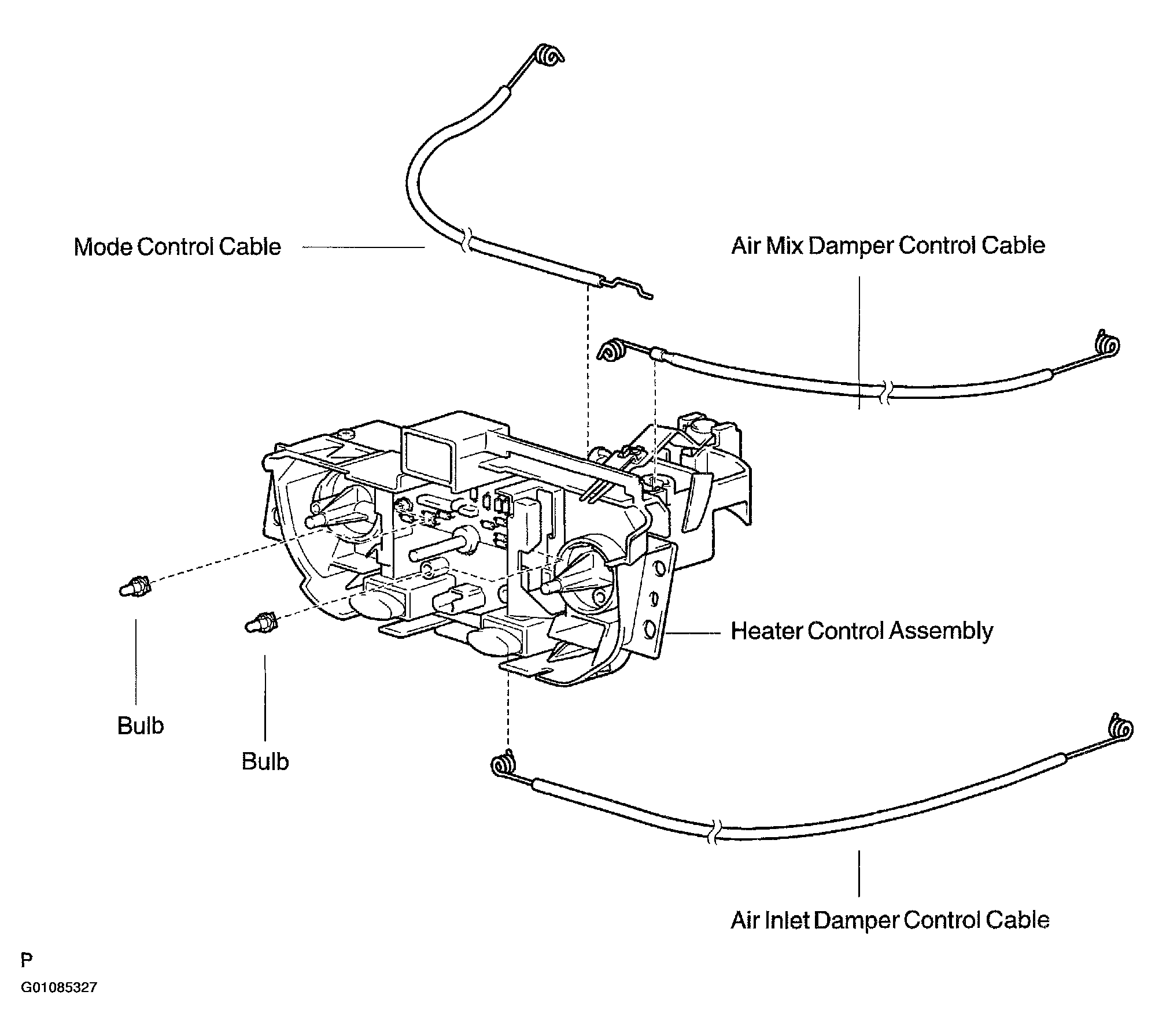

Fig 2: Displaying Heater Control Components
G01085327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
