Cooling Unit: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

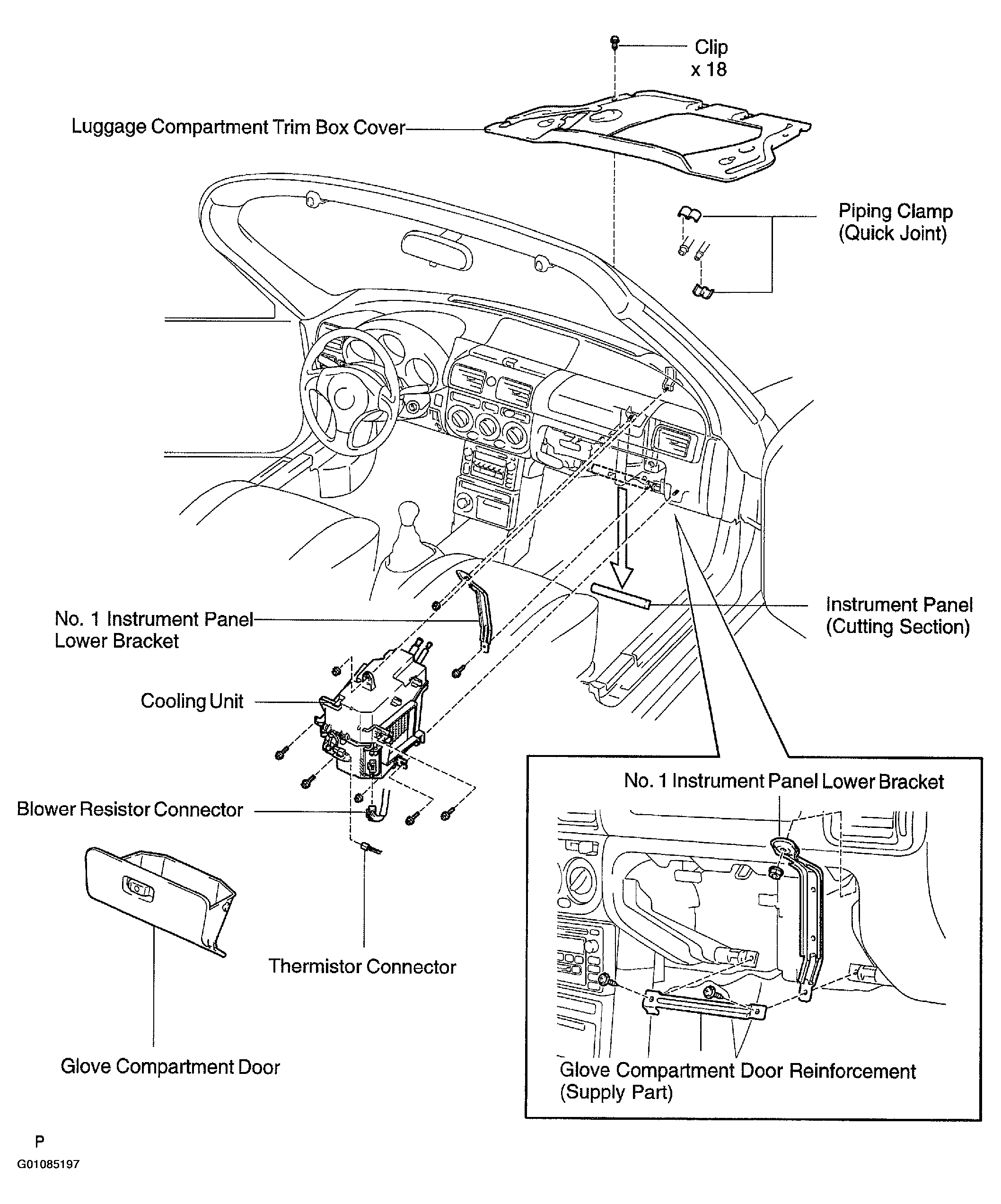

Fig 1: Displaying Location Of Cooling Unit
G01085197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

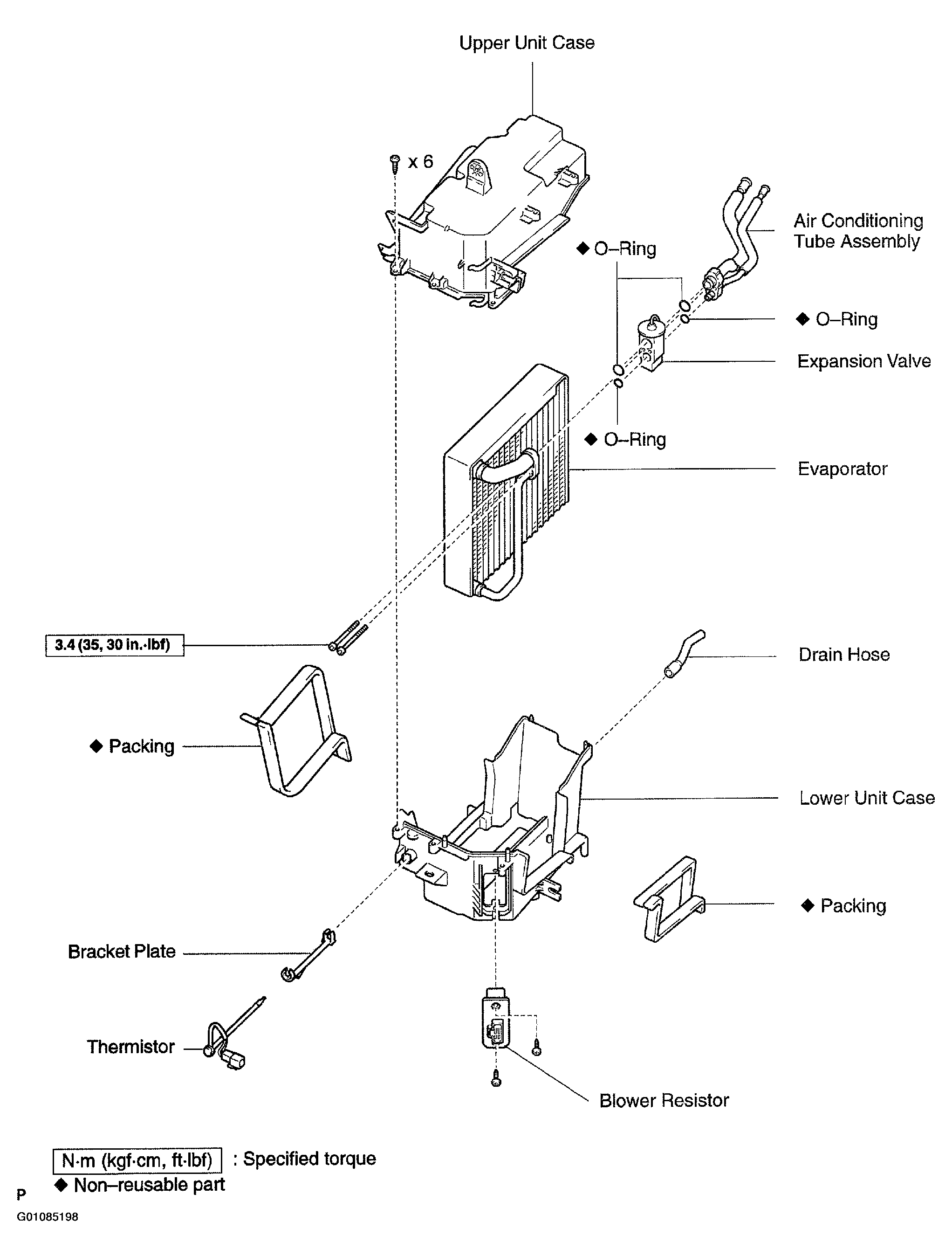

Fig 2: Displaying Cooling Unit Components
G01085198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
