Install Condenser
1. As shown in Fig 1, tilt the condenser and insert half of it.

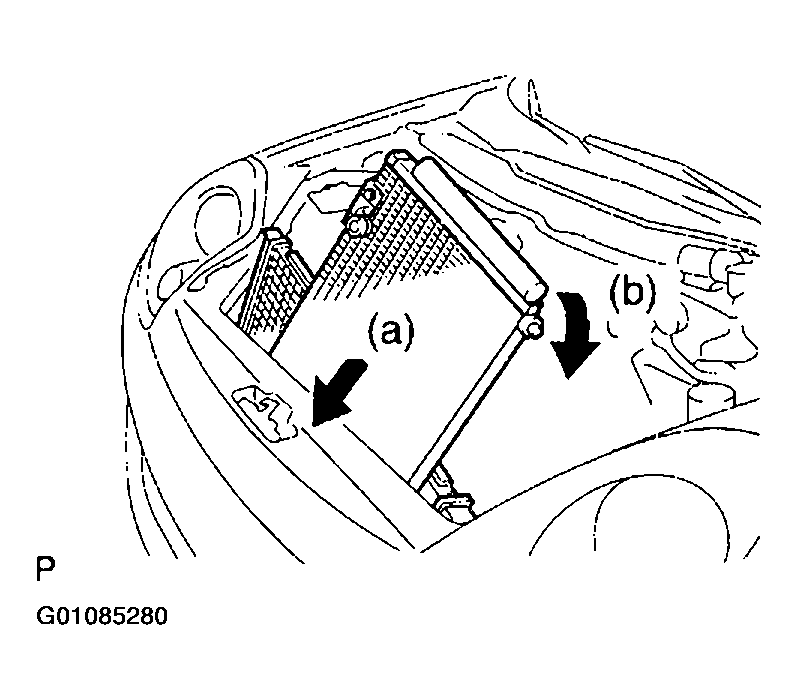

  Fig 1: Inserting Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When half of the condenser is inserted, turn it.
3. Place the condenser in the front of the radiator temporally.
  CAUTION: Be careful not to damage the condenser and radiator.
4. Install the condenser with the 2 bolts.

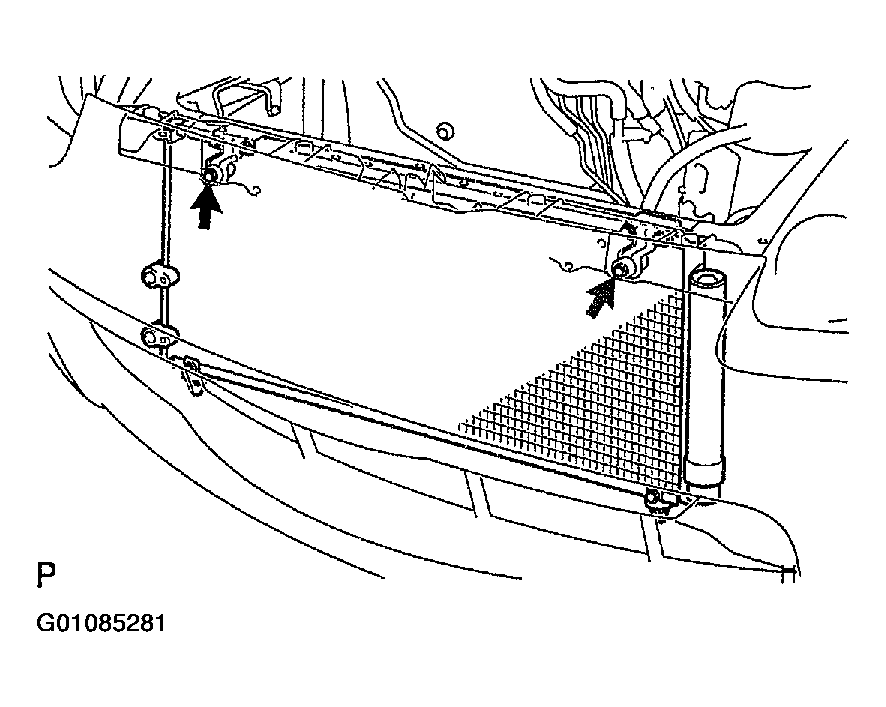

  Fig 2: Locating Bolts For Installation Of Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)
Install Liquid Tube And Discharge Tube
1. Remove the cap.
2. Coat 2 new O-rings with compressor oil.
3. Install both tubes with the 2 bolts.

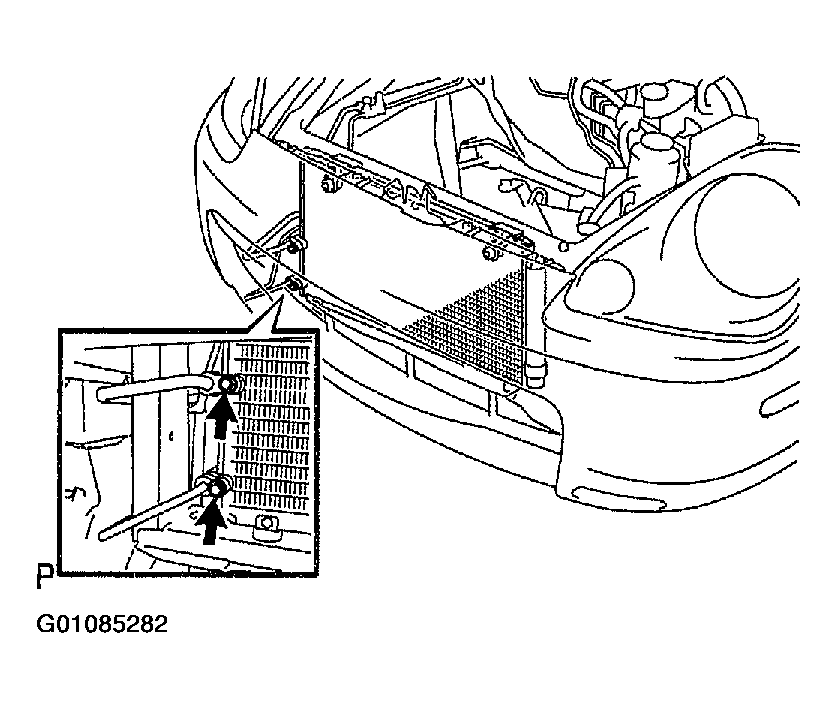

  Fig 3: Locating Bolts For Installation Of Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

  If condenser was replaced, add compressor oil to the compressor.

  Add: 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent
4. Install the RH and LH radiator grills with the 4 screws.

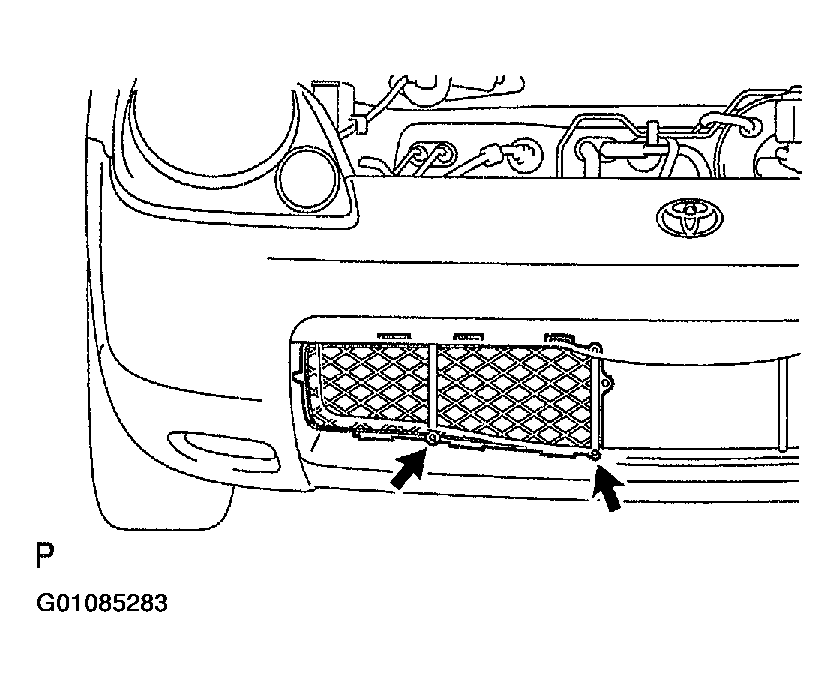

  Fig 4: Locating Screws For Installation Of Radiator Grilles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Radiator Assembly
1. Pull up the radiator on right side, install the bush at the bottom of the radiator to the existing concave, and move it forward.

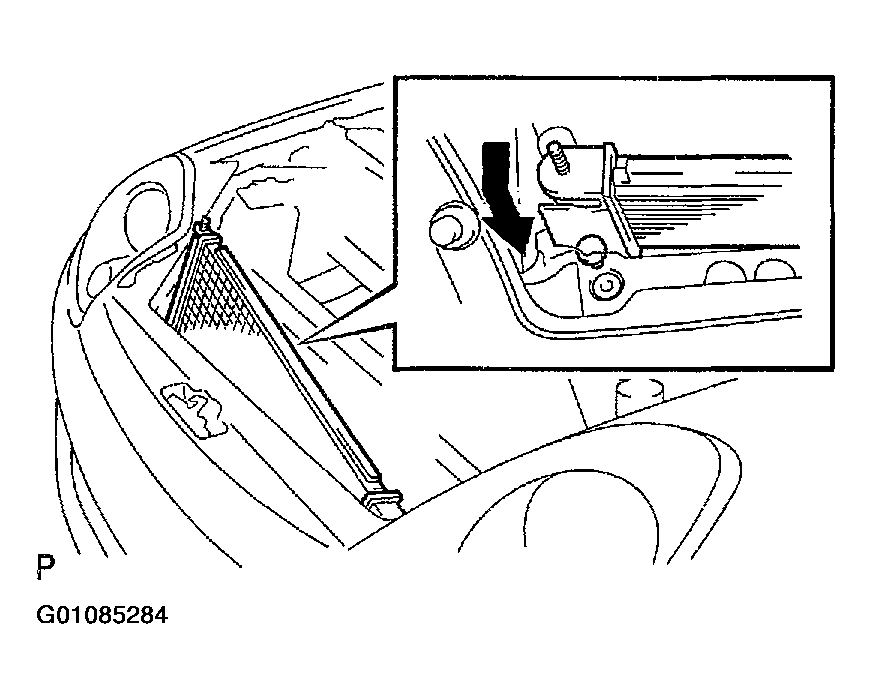

  Fig 5: Installing Radiator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 upper radiator supports with the 4 bolts.

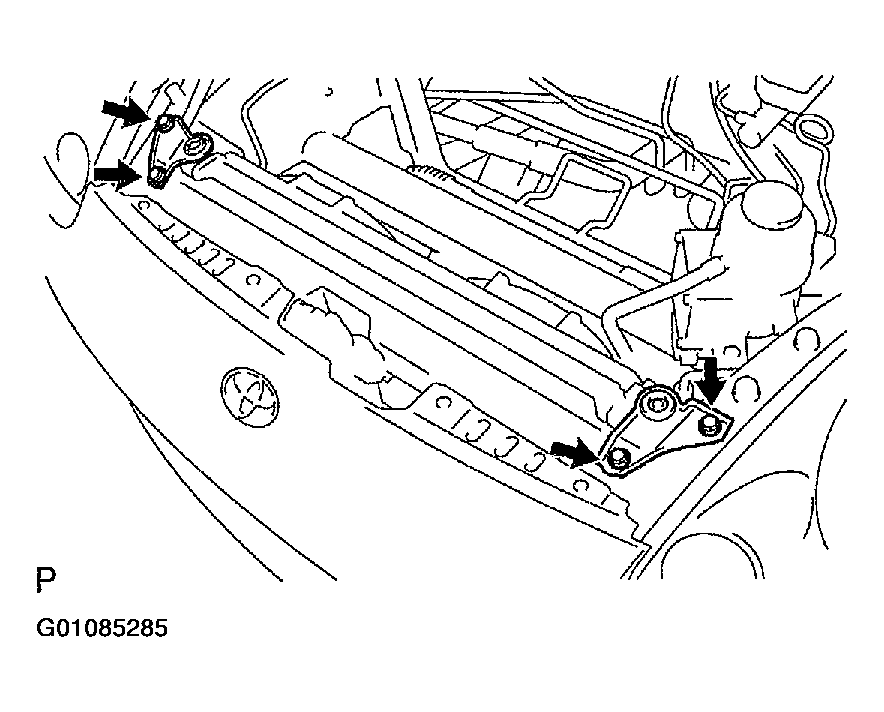

  Fig 6: Locating Bolts For Installation Of Radiator Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 spare wheel carrier extensions with the 2 nuts and 2 bolts.

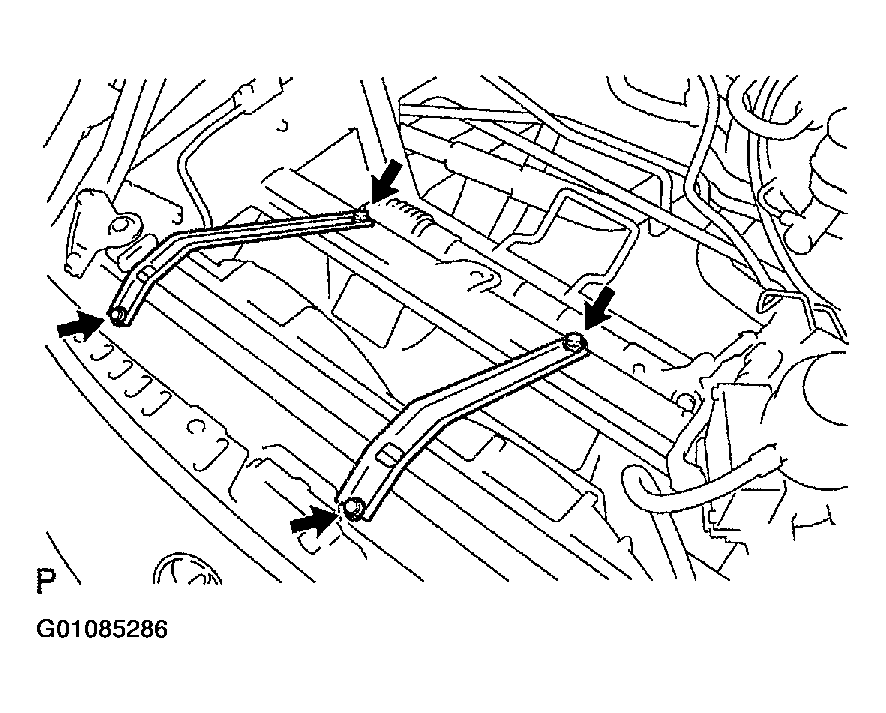

  Fig 7: Locating Nuts & Bolts For Spare Wheel Carrier Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8 N.m (82 kgf.cm, 70 in.lbf)
Charge Refrigerant To Refrigeration System
1. Evacuate air from the refrigeration system.
2. Charge system with refrigerant and inspect for leakage of refrigerant.
  Specified amount: 500 +/- 30 g (17.64 +/- 1.06 oz.)
Install Tool Box Assembly And Luggage Compartment Trim Box Cover
