Blower Unit: Installation

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Blower Unit
    1. Install the blower unit with the 2 nuts and a bolt.

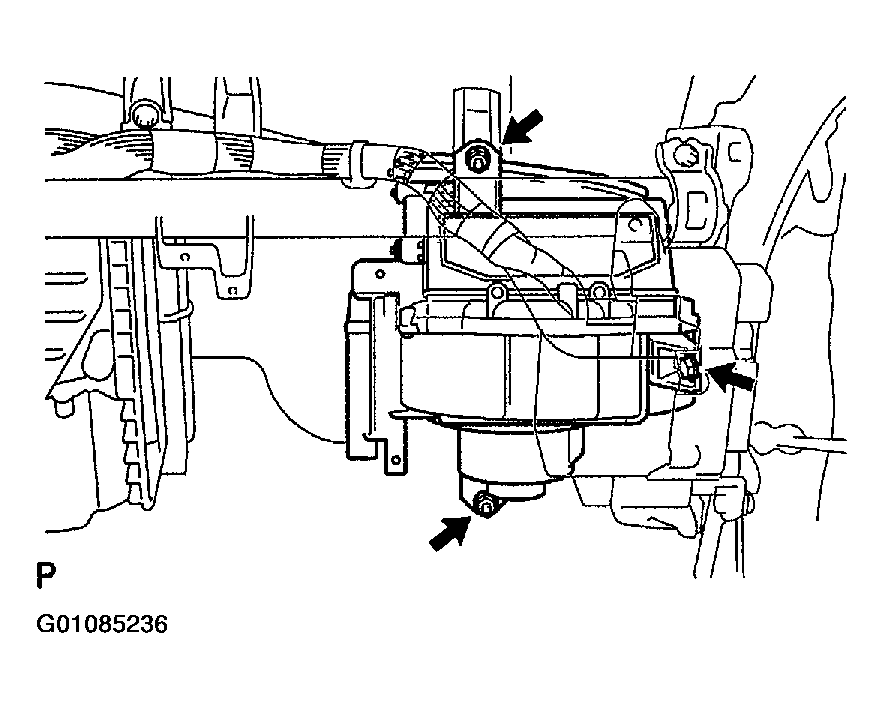

      Fig 1: Locating Nuts & Bolt For Installation Of Blower Unit
      G01085236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the ABS ECU with the bolt to the reinforcement.
    3. Connect the blower motor connector.
  2. Install Cooling Unit. See  INSTALLATION  .
  3. See  Install Instrument Panel  .
