Blower Unit: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

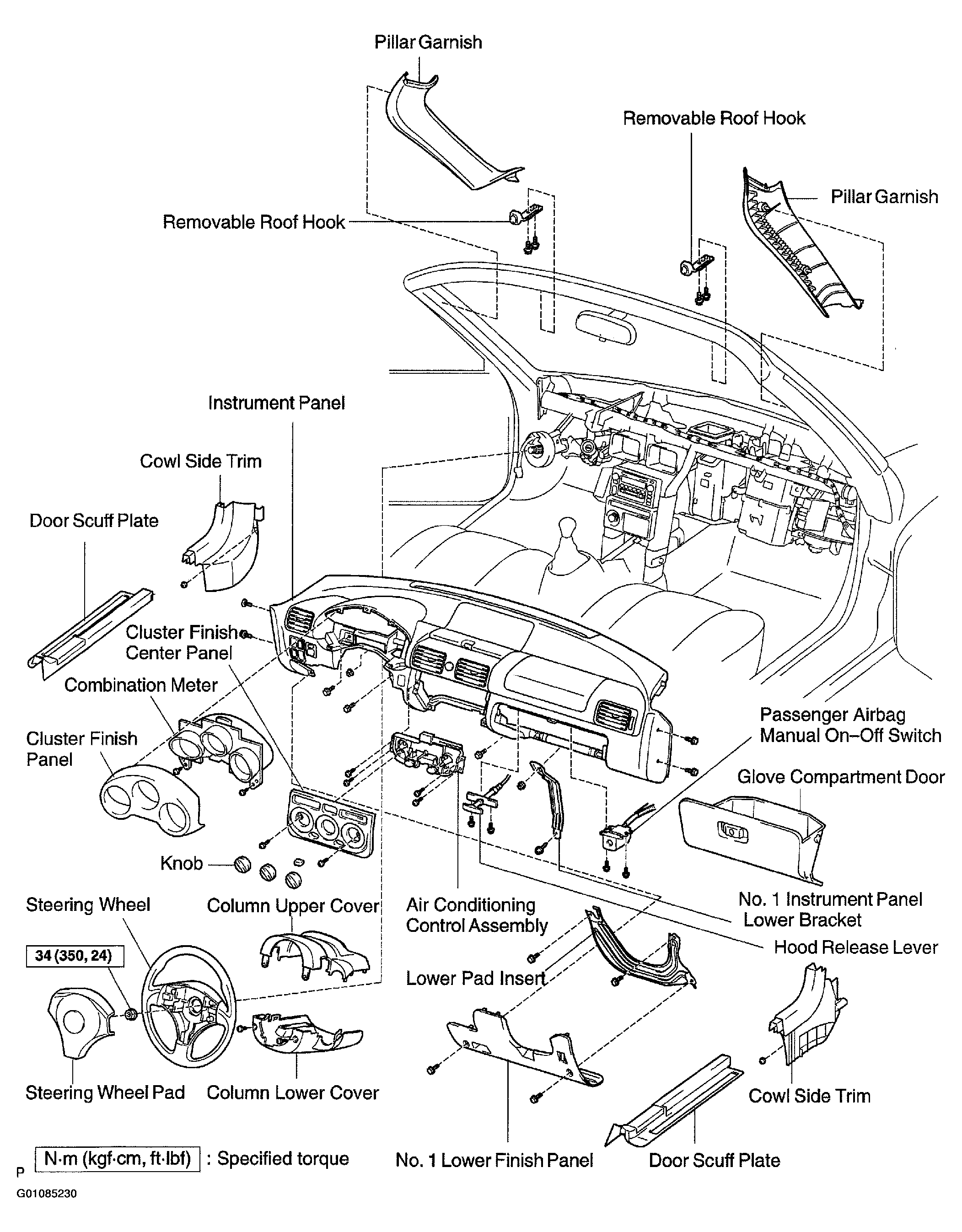

Fig 1: Displaying Blower Unit System Components
G01085230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

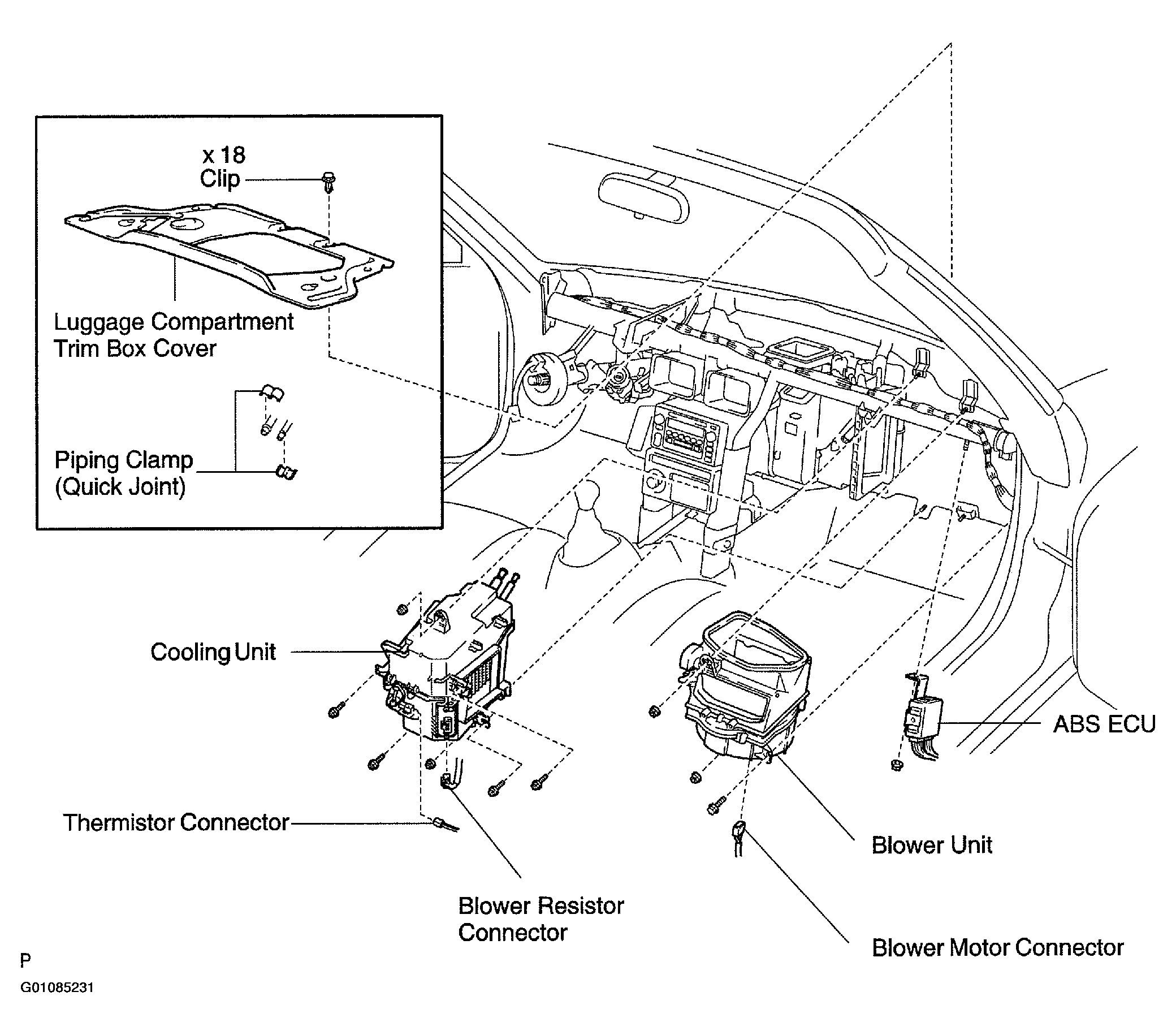

Fig 2: Displaying Blower Unit Installation
G01085231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

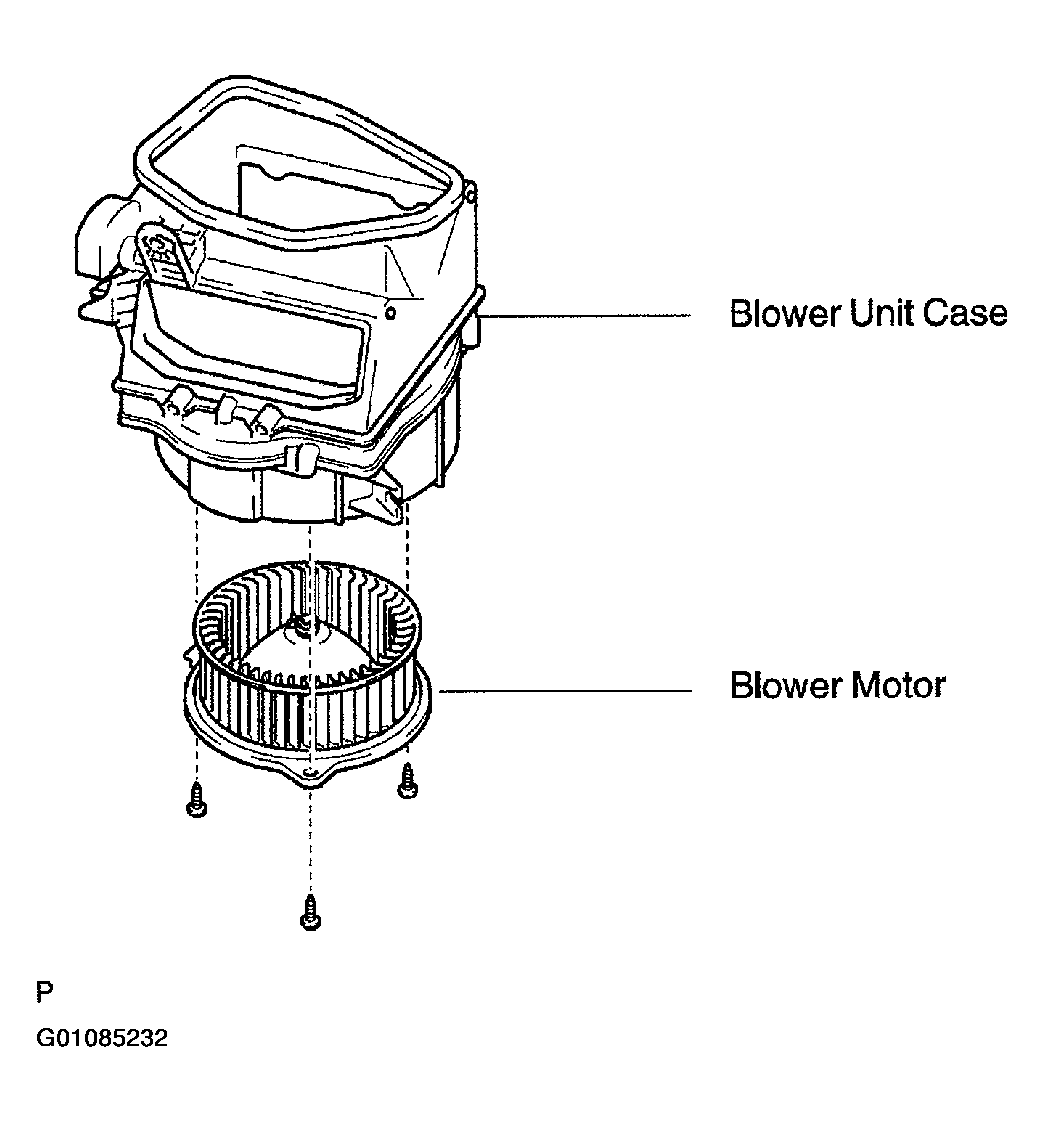

Fig 3: Displaying Blower Unit Components
G01085232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
