Air Conditioning System: Precaution

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do Not Handle Refrigerant In An Enclosed Area
  2. Always Wear Eye Protection
  3. Be Careful Not To Get Liquid Refrigerant In Your Eyes Or On Your Skin

    If liquid refrigerant gets in your eyes or on your skin:

    1. Wash the area with plenty of cool water.
      CAUTION: Do not rub your eyes or skin.
    2. Apply clean petroleum jelly to the skin.
    3. Go immediately to a physician or hospital for professional treatment.

  4. Never Heat Container Or Expose It To Open Flame
  5. Be Careful Not To Drop Container And Not To Apply Physical Shocks To It
  6. Do Not Operate Compressor Without Enough Refrigerant In Refrigeration System

    If there is not enough refrigerant in the refrigerant system oil lubrication will be insufficient and compressor burnout may occur, so care should be taken to avoid this.

  7. Do Not Open Pressure Manifold Valve While Compressor Is Operating

    If the high pressure valve is opened, refrigerant flows in the reverse direction and could cause the charging cylinder to rupture, so open and close the low pressure valve only.

  8. Be Careful Not To Overcharge System With Refrigerant

    If refrigerant is overcharged, it causes problems such as insufficient cooling, poor fuel economy, engine overheating etc.

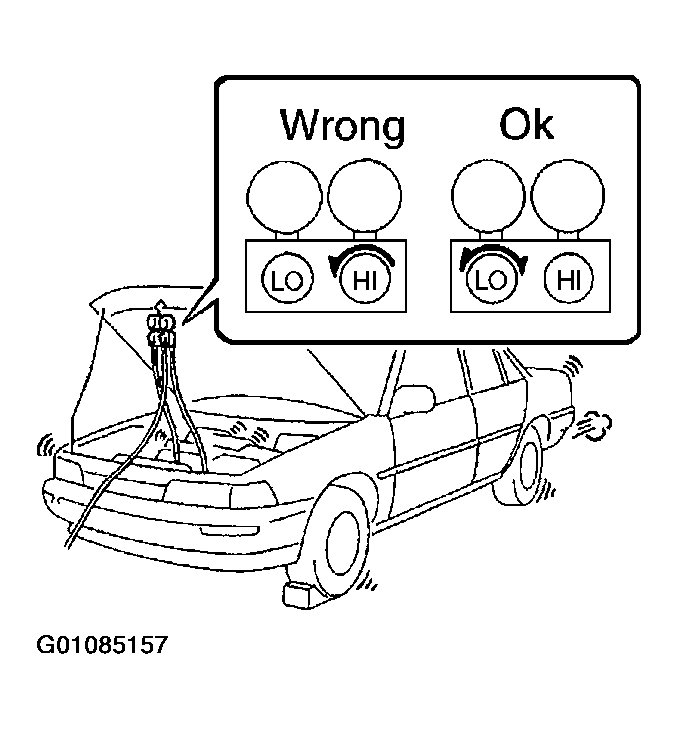

    Fig 1: Displaying Correct Usage Of Pressure Manifold
    G01085157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Supplemental Restraint System (SRS)

    The MR2 is equipped with an SRS (Supplemental Restraint System) such as the driver and front passenger airbag. Failure to carry out service operation in the correct sequence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the precautionary notices in AIR BAG SAFETY PRECAUTIONS .
