Back-Up Light System: Inspection

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. M/T Inspect back-up light switch continuity  .

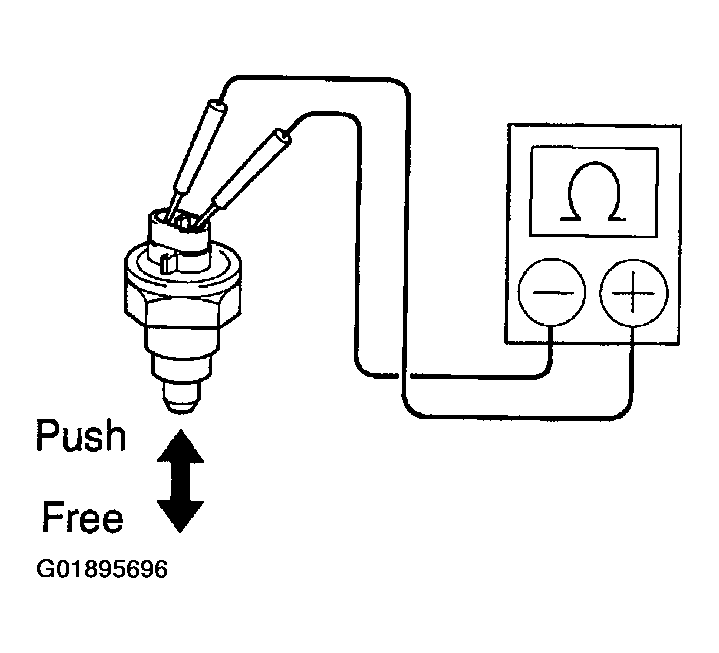

    Fig 1: Testing Back-Up Light Switch
    G01895696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

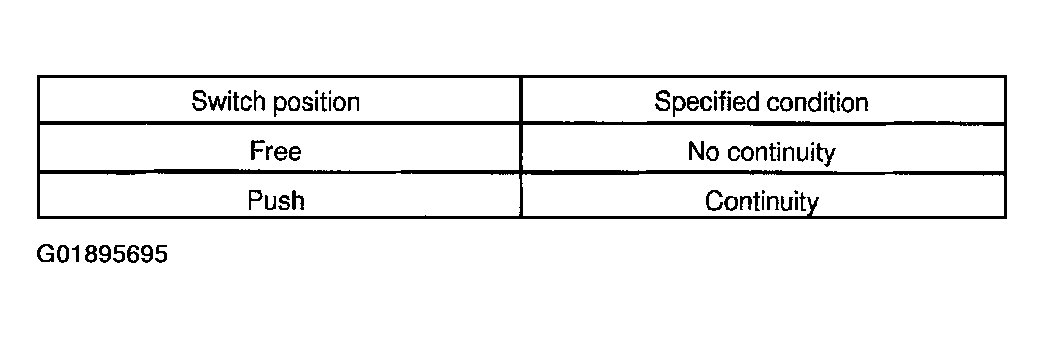

    Fig 2: Displaying Back-Up Light Switch Specifications
    G01895695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  2. A/T Inspect neutral start switch continuity (See  DTC P1780: PARK/NEUTRAL POSITION SWITCH CIRCUIT  )  .
