Removal & Installation

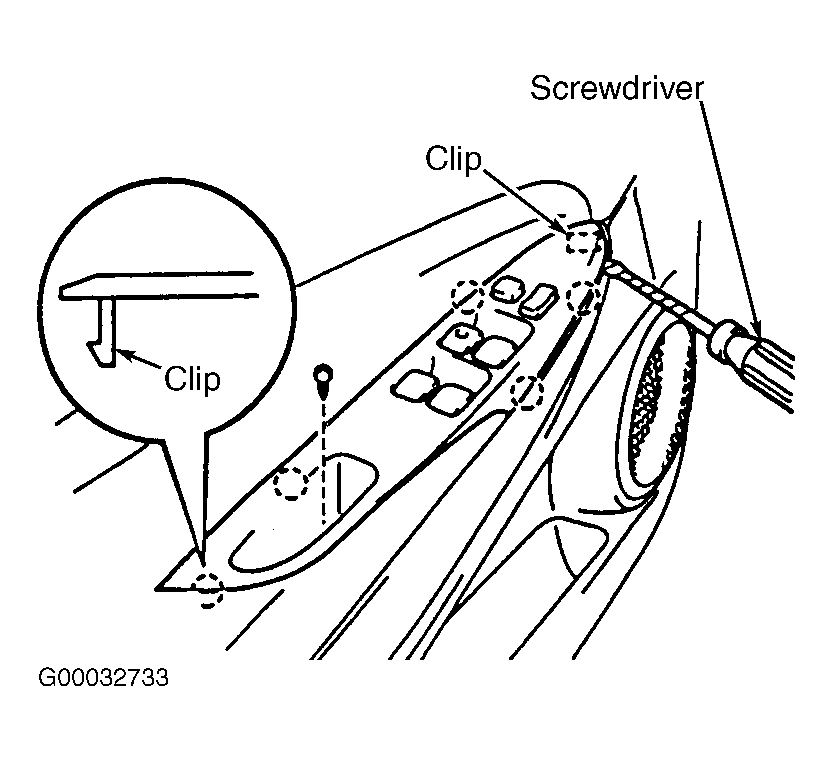

Driver's door Electronic Control Unit (ECU) is located on driver's door and is incorporated into the power window master switch. See Figure. Remove screw from end of panel for driver's door ECU. See Fig 1. Apply tape to end of screwdriver. Using screwdriver, pry upward at each clip on end of panel. See Fig 1. Disconnect necessary electrical connector and remove driver's door ECU. To install, reverse removal procedure.
