Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1.

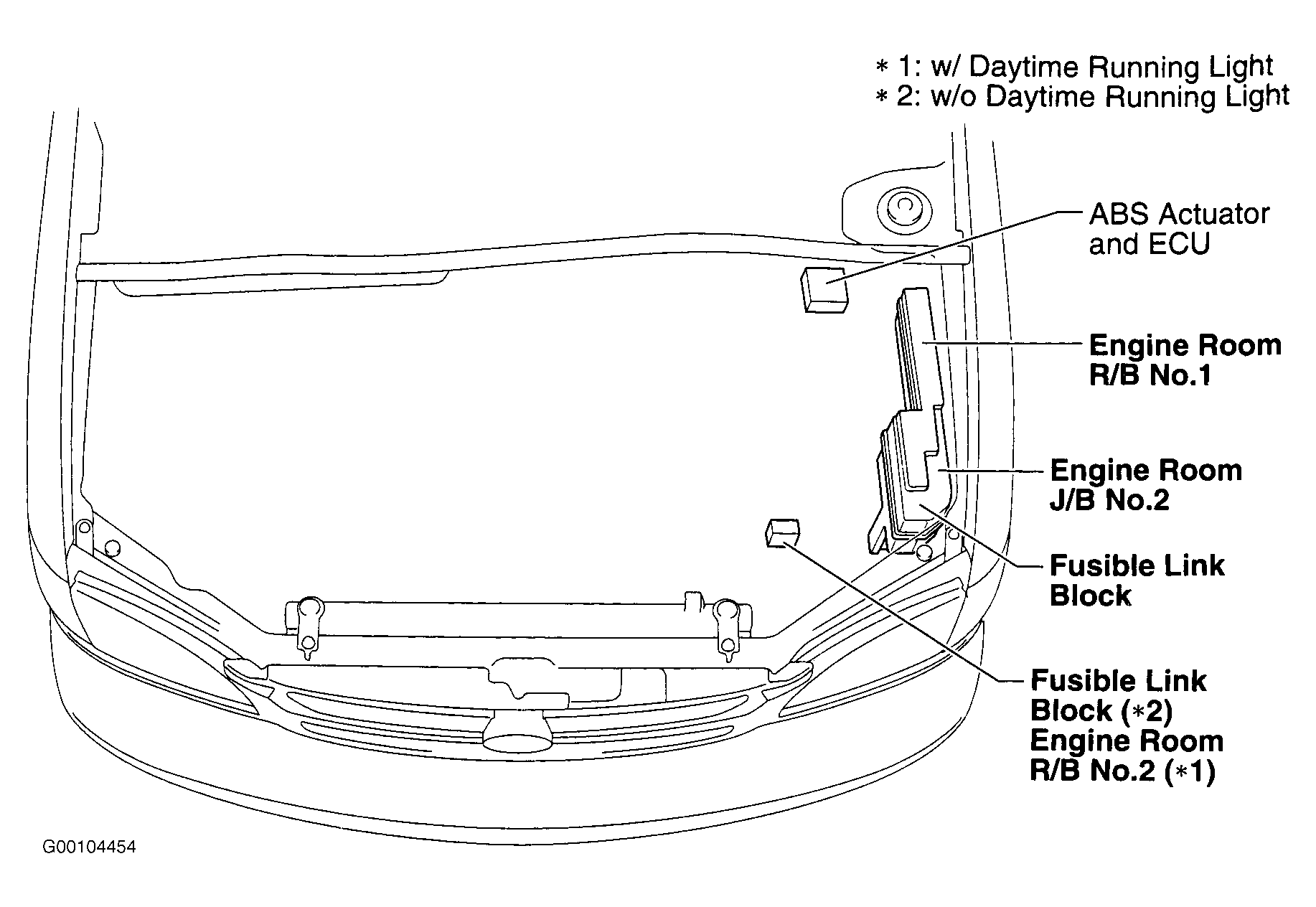

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

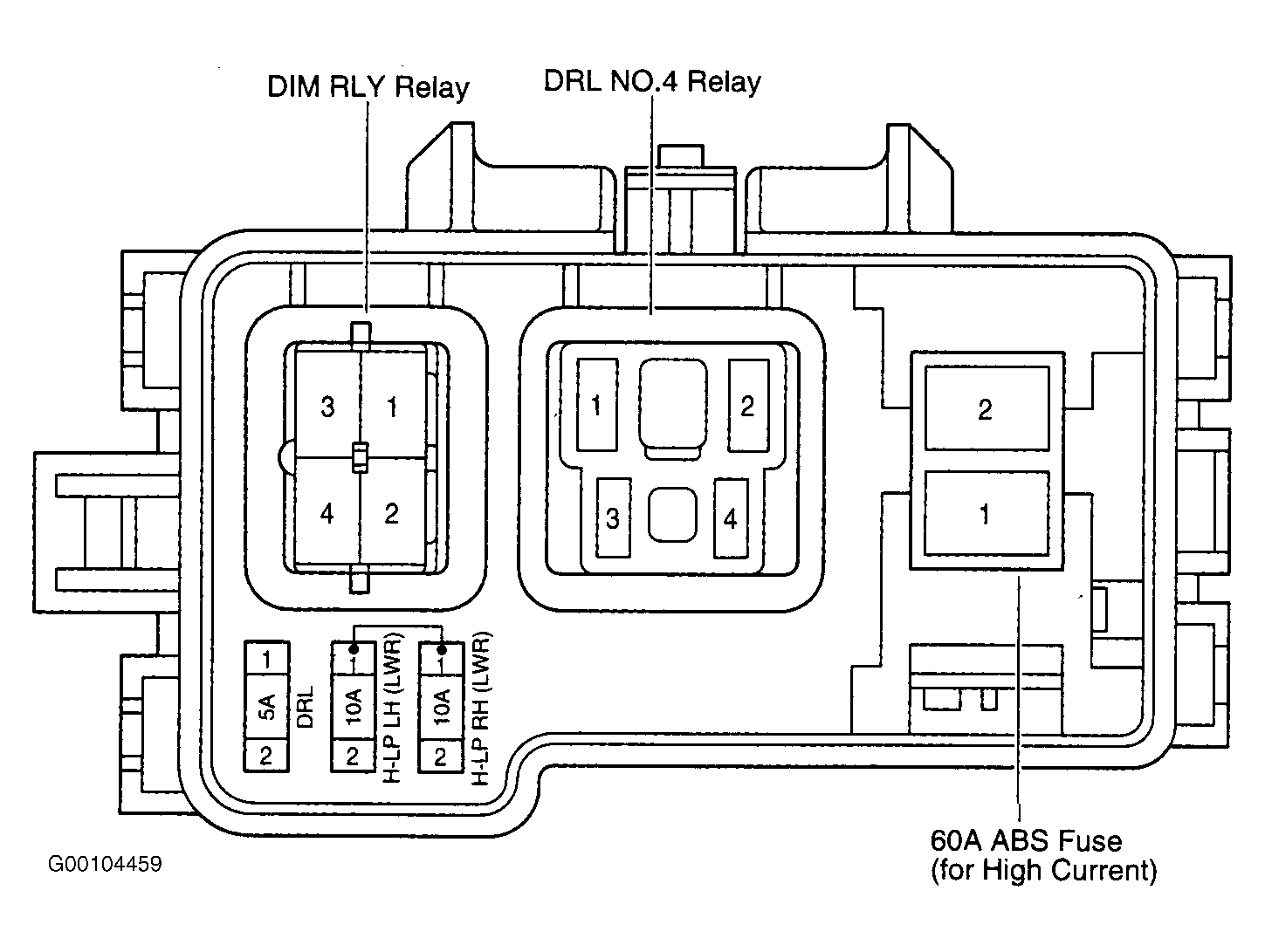

Fig 2: Identifying Engine Room J/B No. 2 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Room J/B No. 2 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

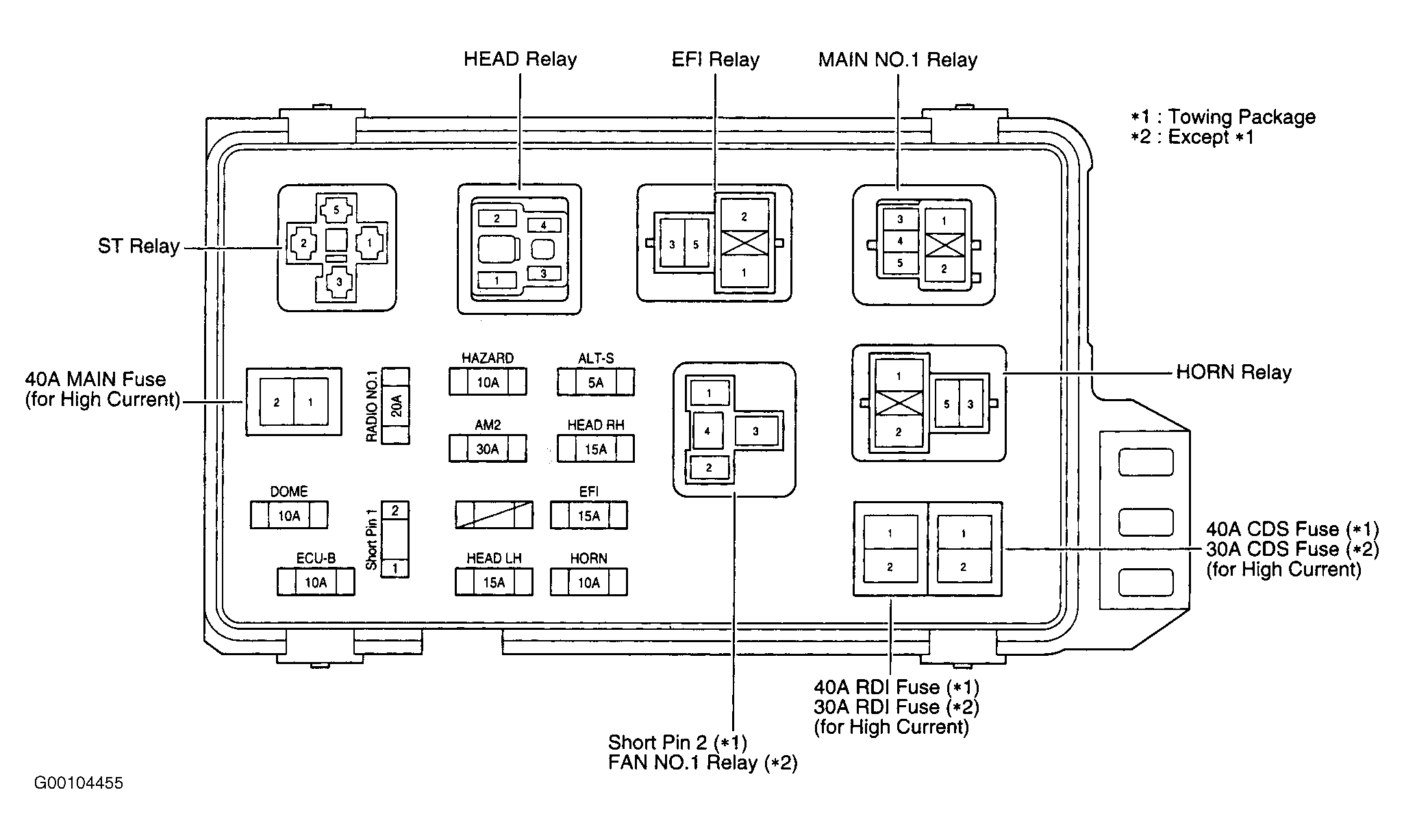

Fig 4: Identifying Engine Room R/B No. 1 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

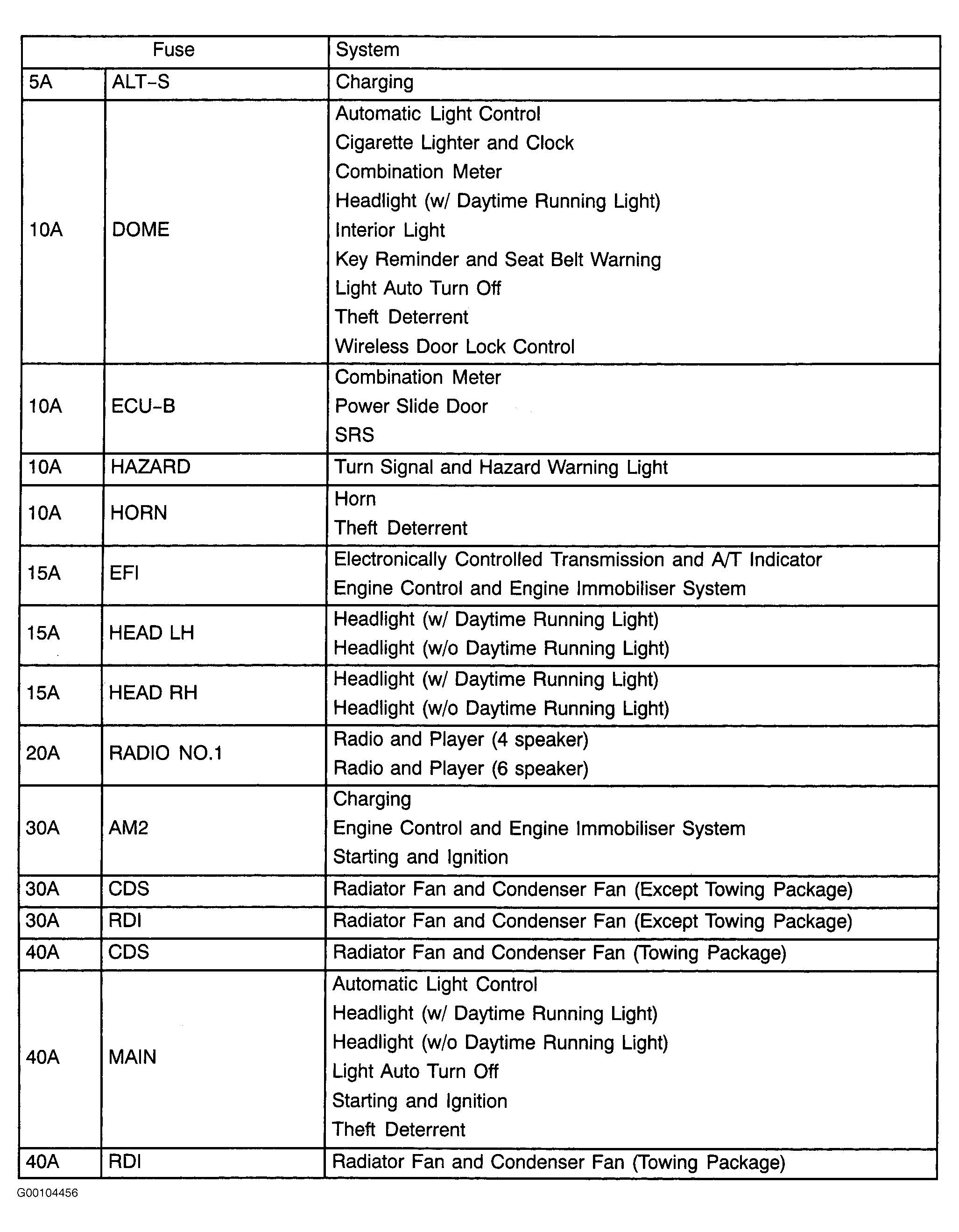

Fig 5: Engine Room R/B No. 1 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

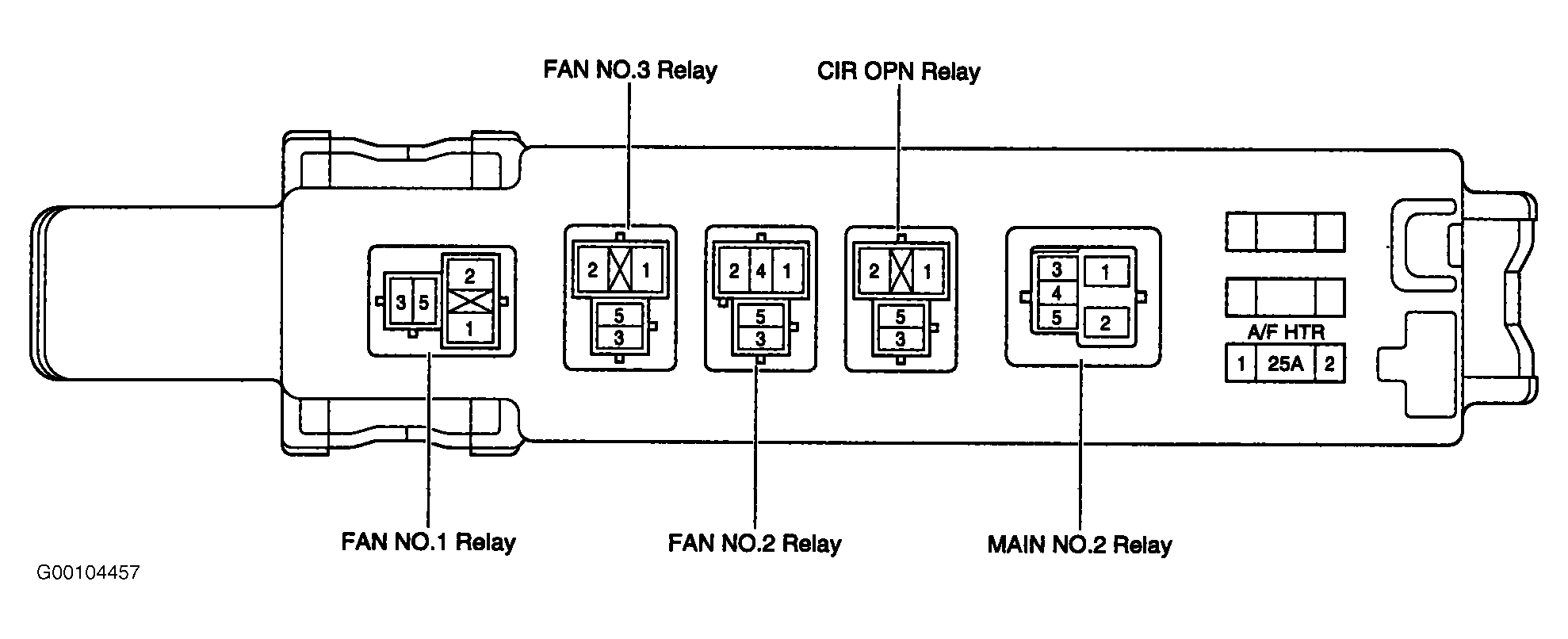

Fig 6: Identifying Engine Room R/B No. 2 Components (With Daytime Running Lights)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

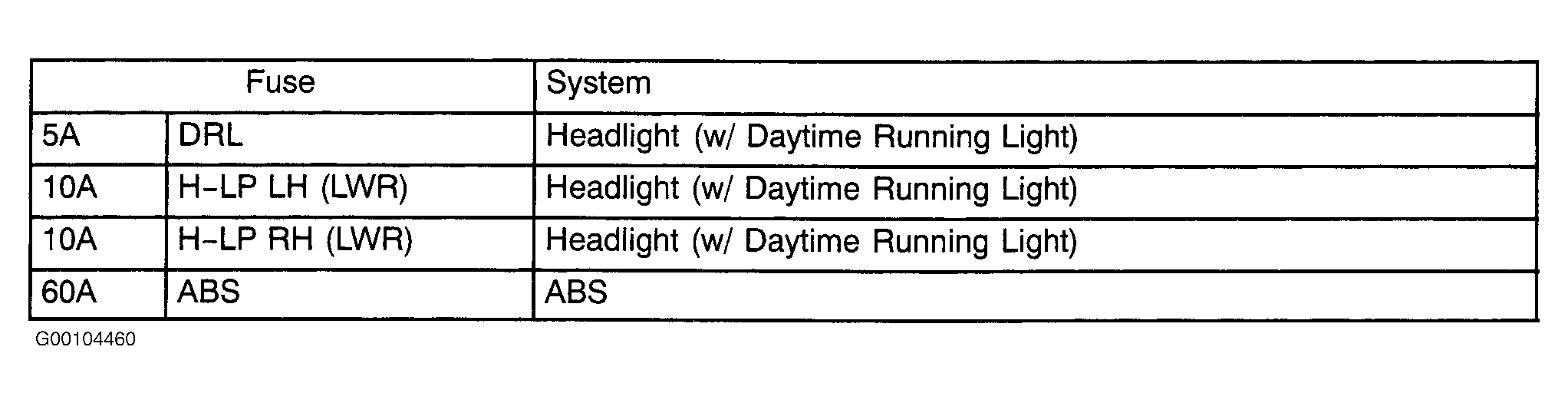

Fig 7: Engine Room R/B No. 2 Legend(With Daytime Running Lights)

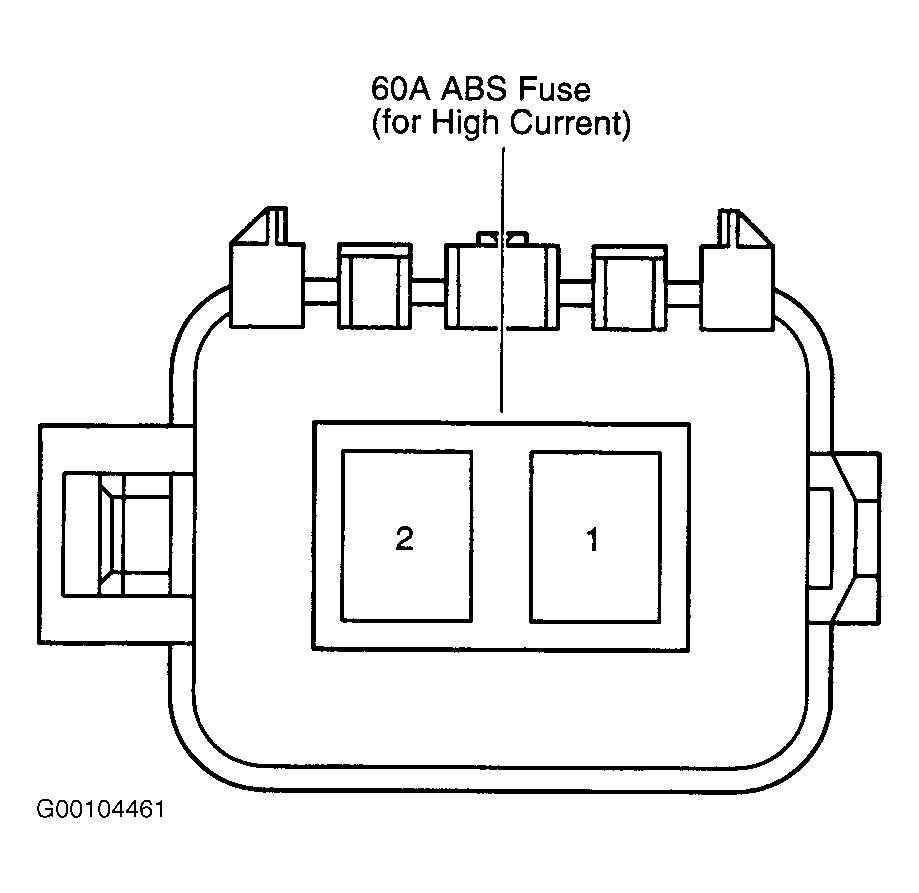

Fig 8: Identifying Fusible Link Block Components (Without Daytime Running Lights)

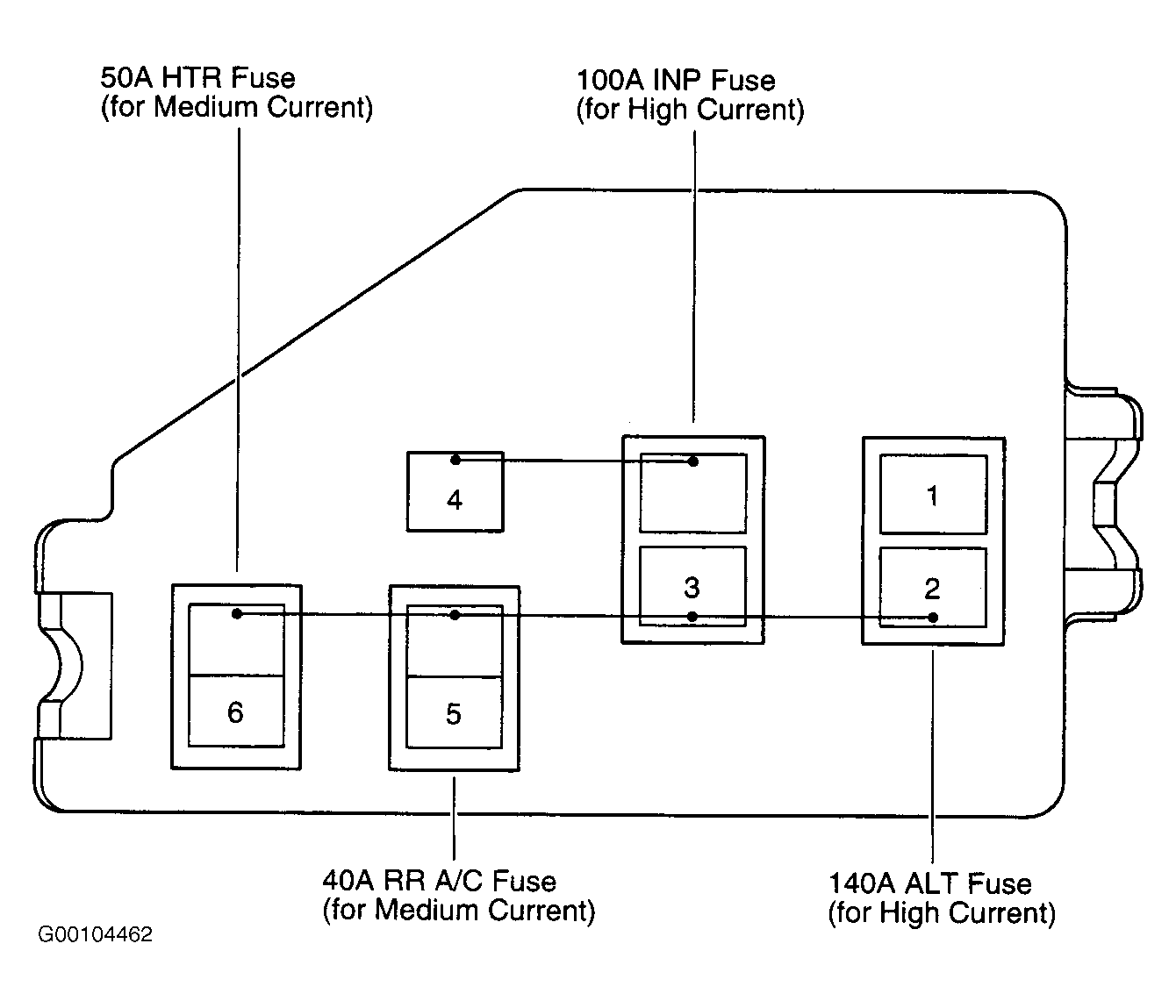

Fig 9: Identifying Fusible Link Block Components (Inside Engine Room J/B No. 2)

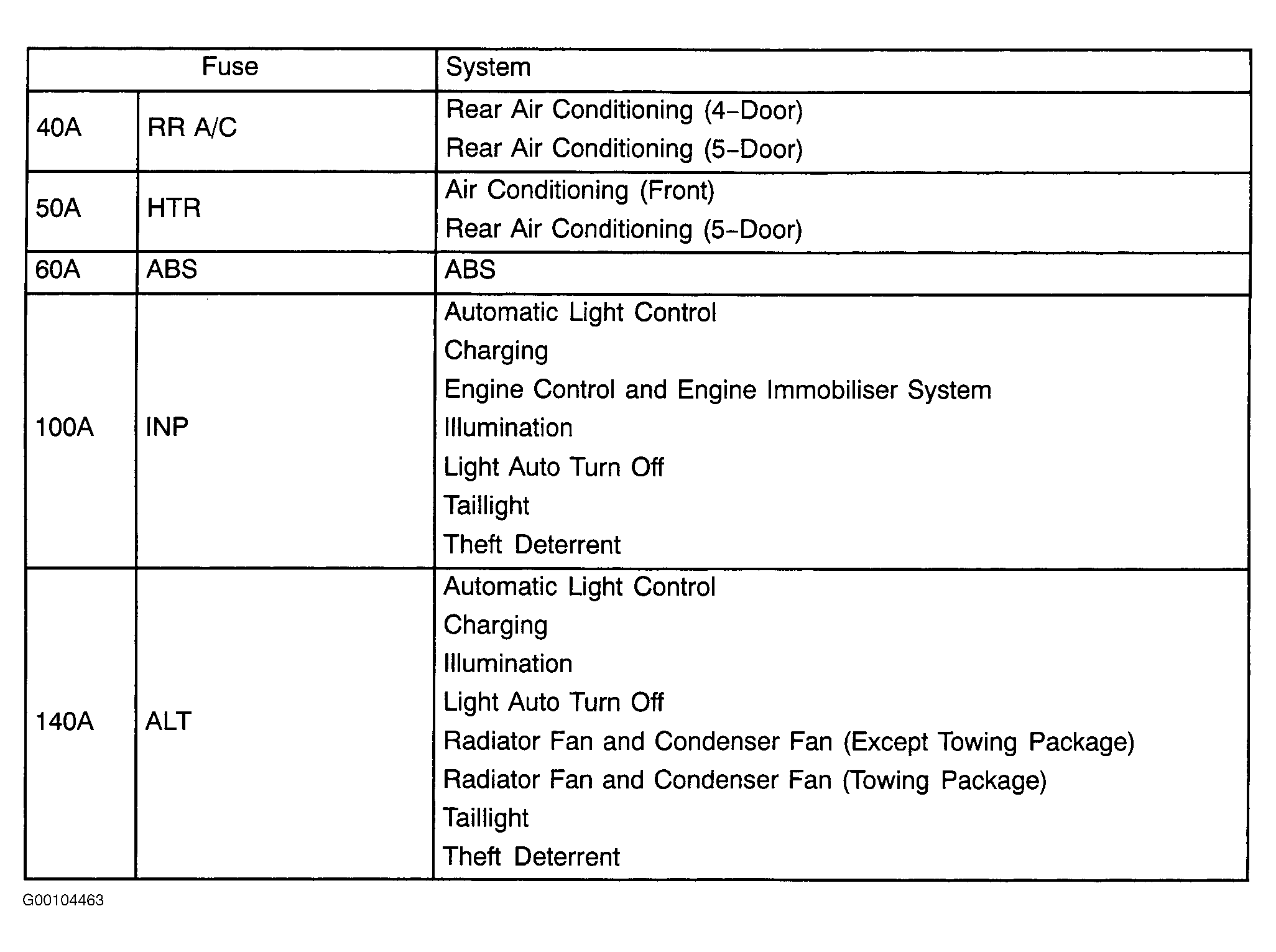

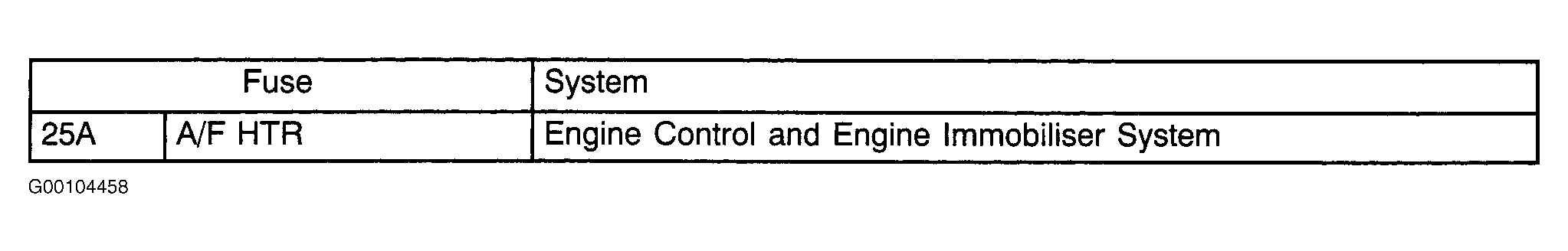

Fig 10: Fusible Link Block Legend (Inside Engine Room J/B No. 2)
