Engine Compartment Fuses

NOTE: Engine compartment fuses are located in engine compartment. . See Fig 1.

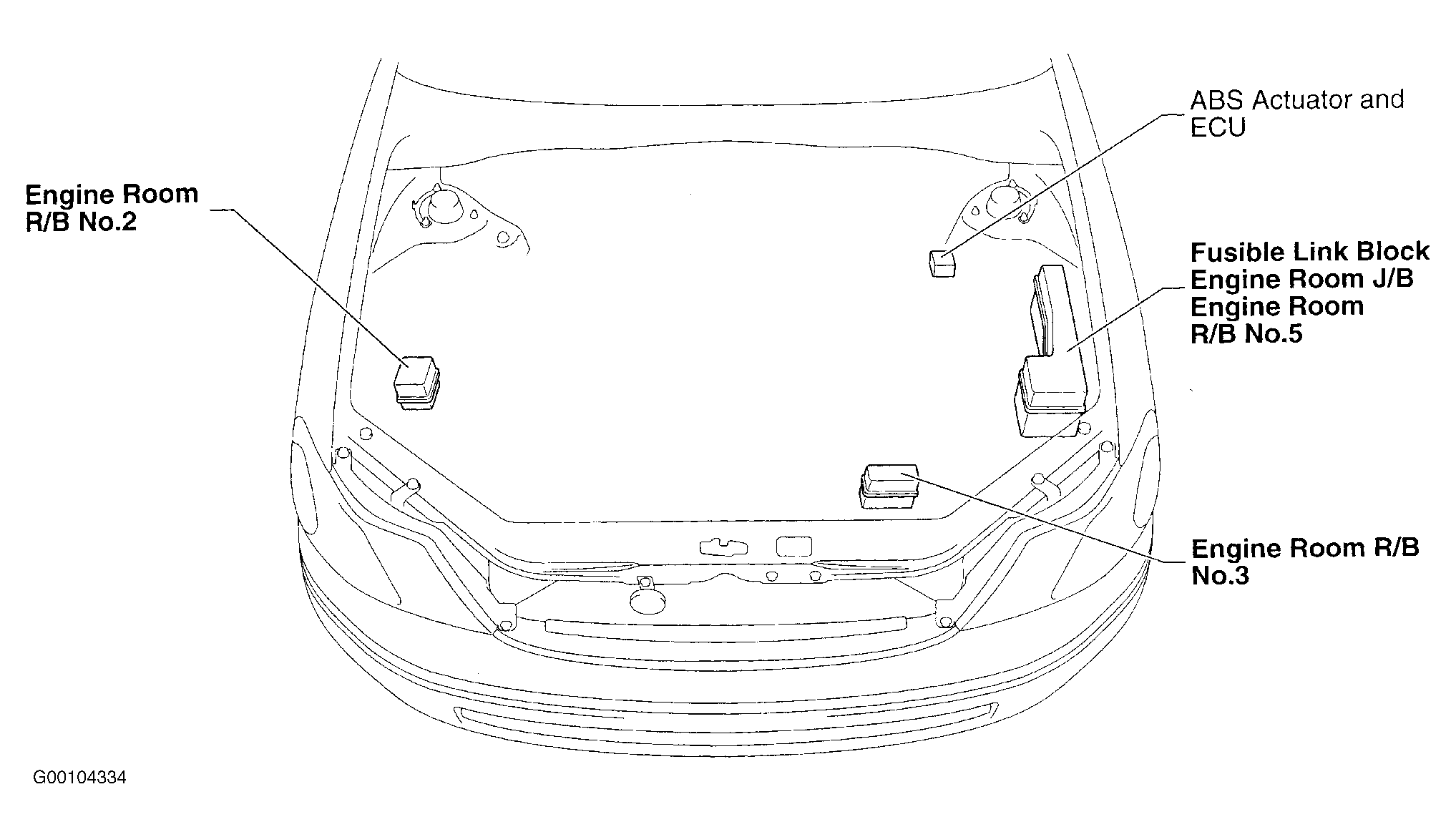

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

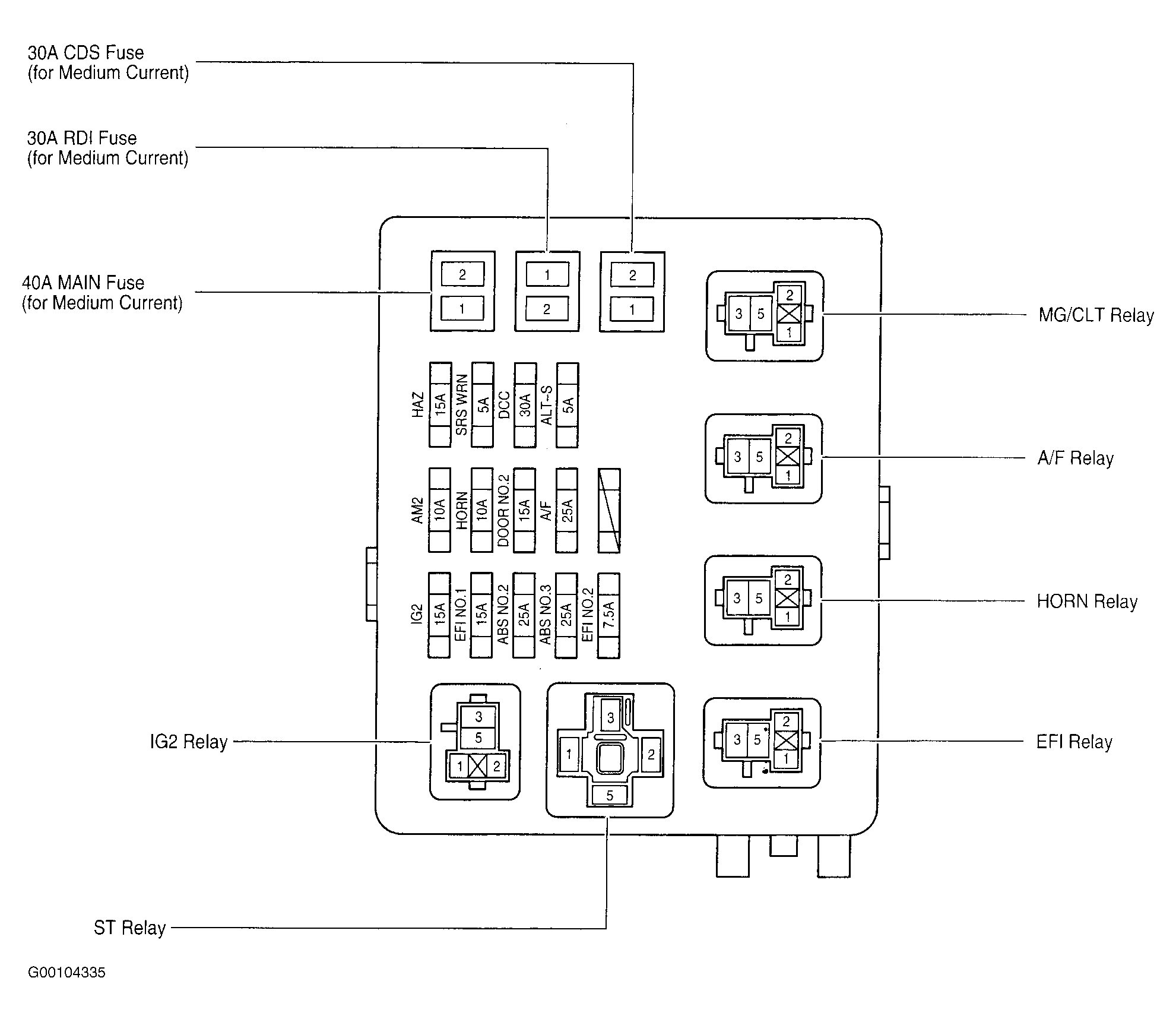

Fig 2: Identifying Engine Room J/B Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

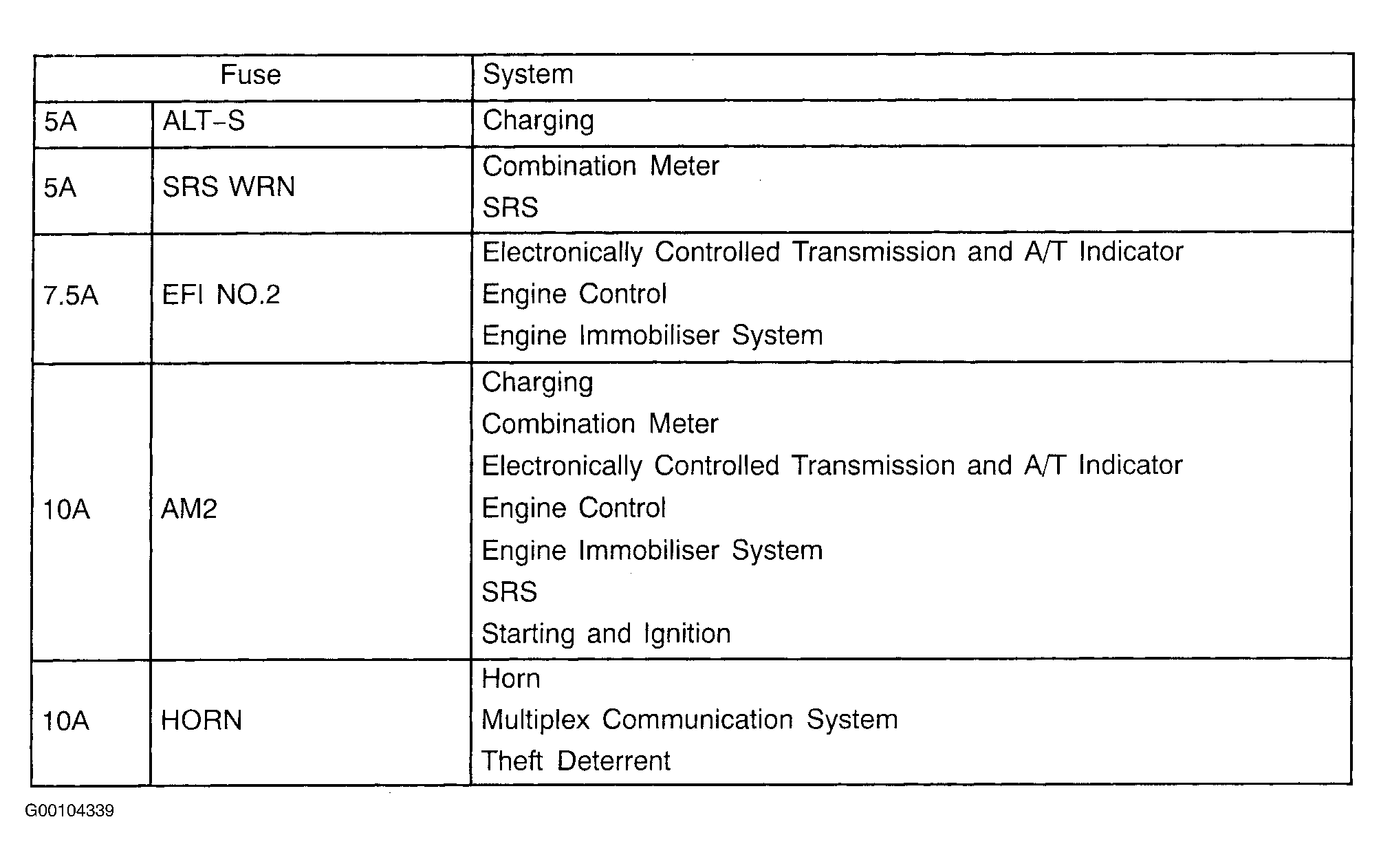

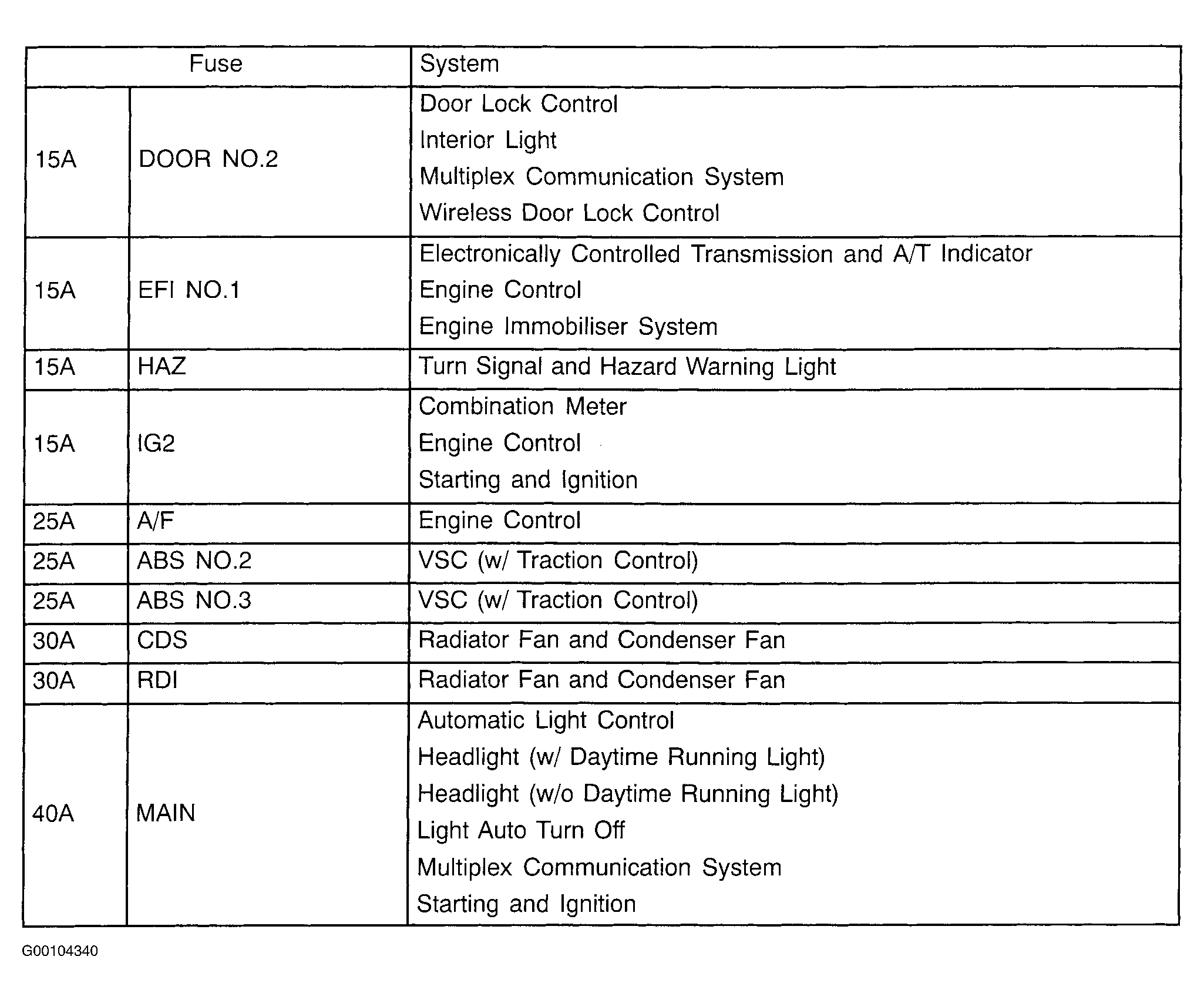

Fig 3: Engine Room J/B Legend (1 Of 2)

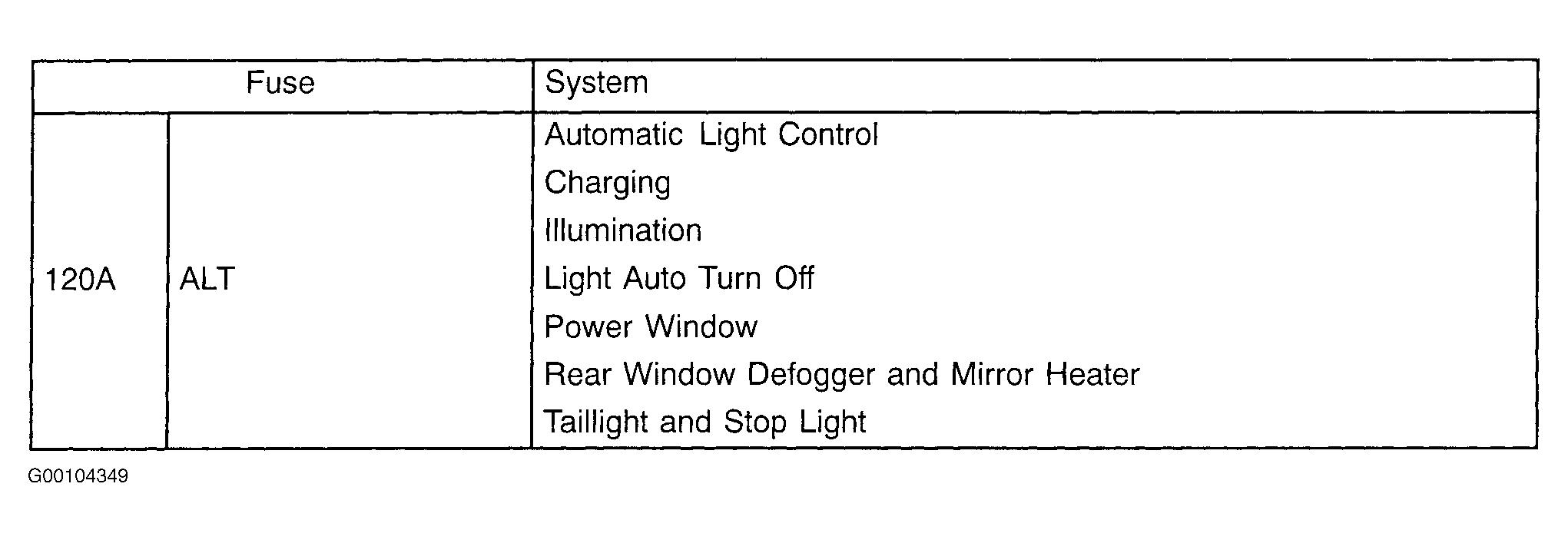

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Room J/B Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

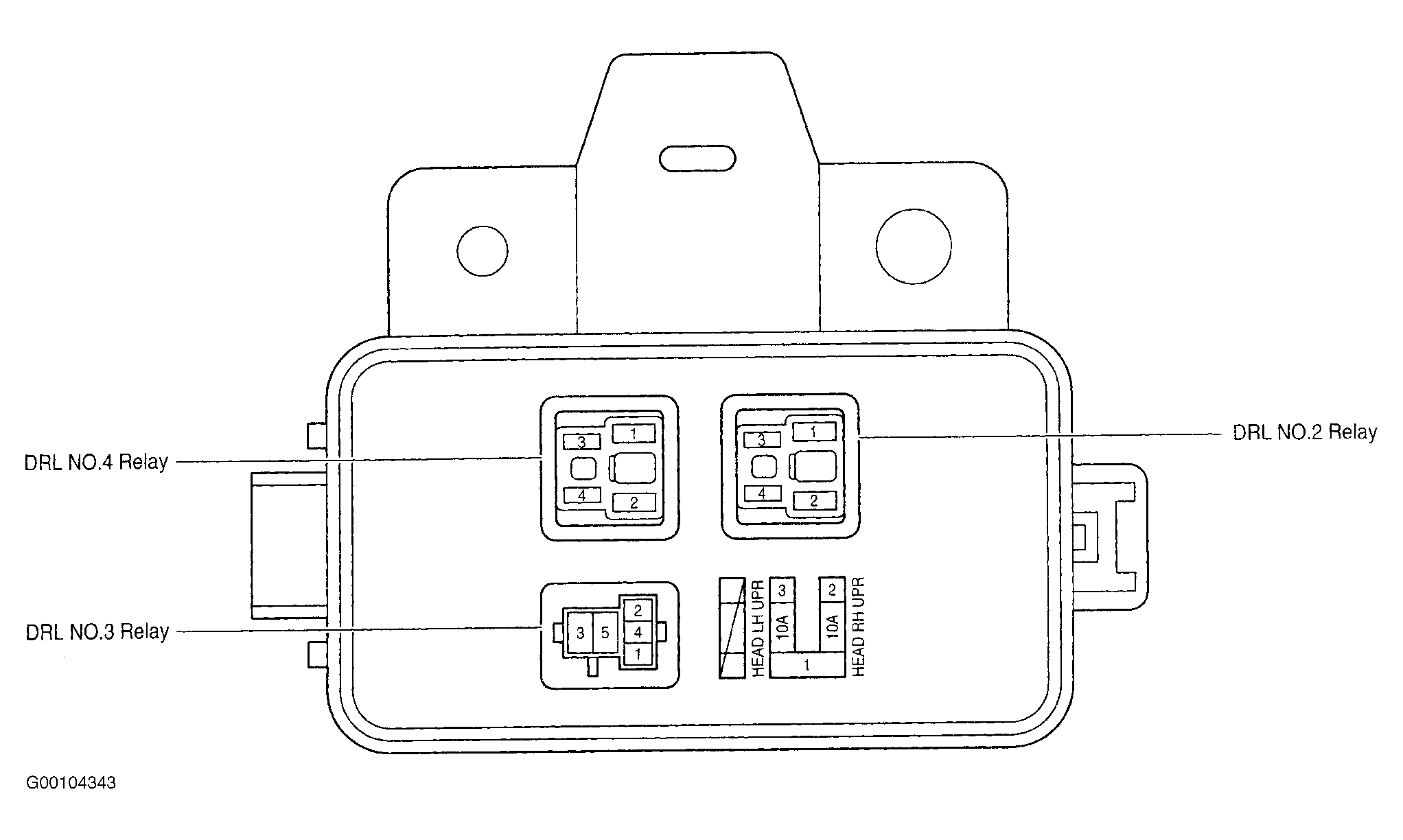

Fig 5: Identifying Engine Room R/B No. 2 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B No. 2 Legend

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

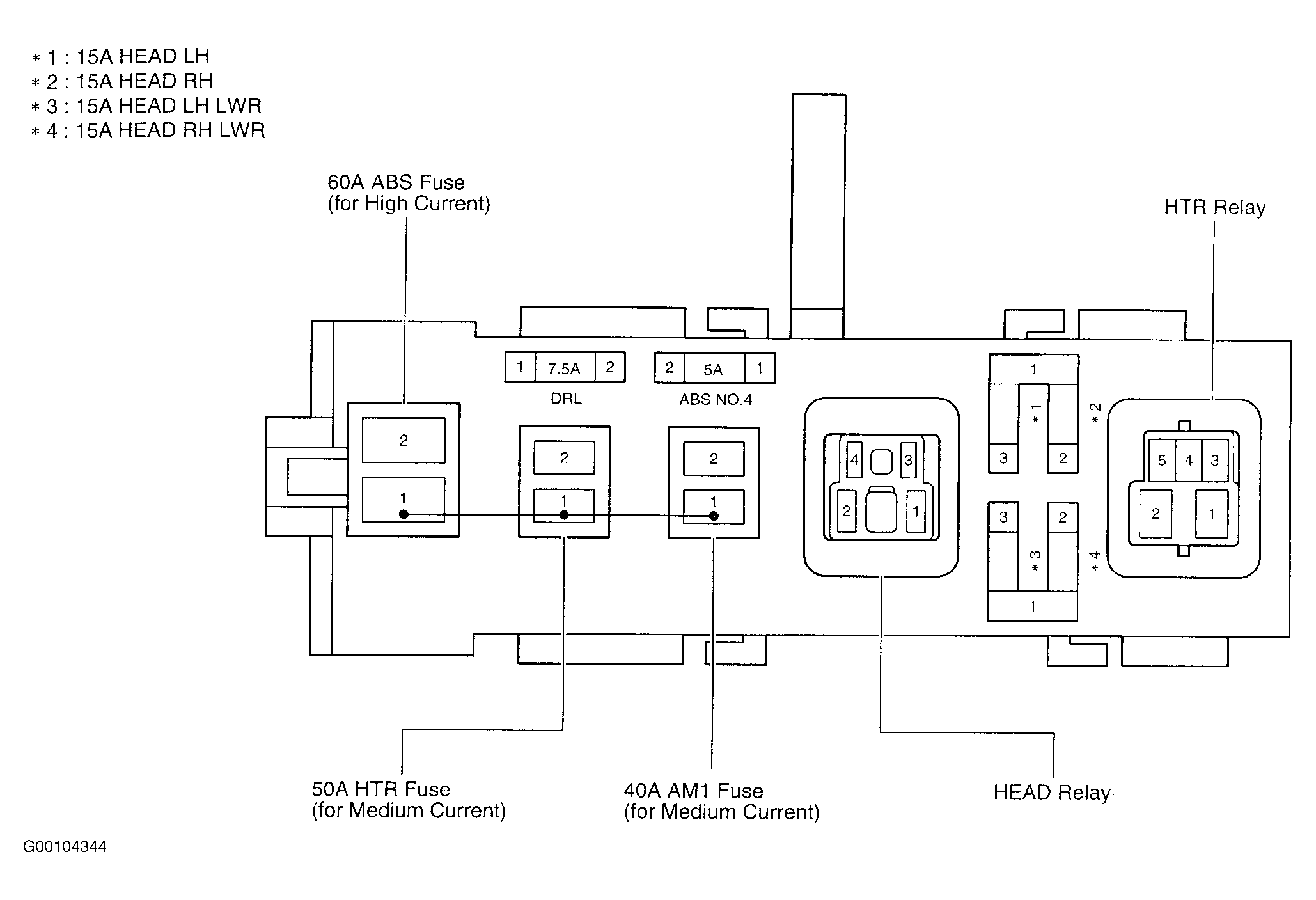

Fig 7: Identifying Engine Room R/B No. 5 Components

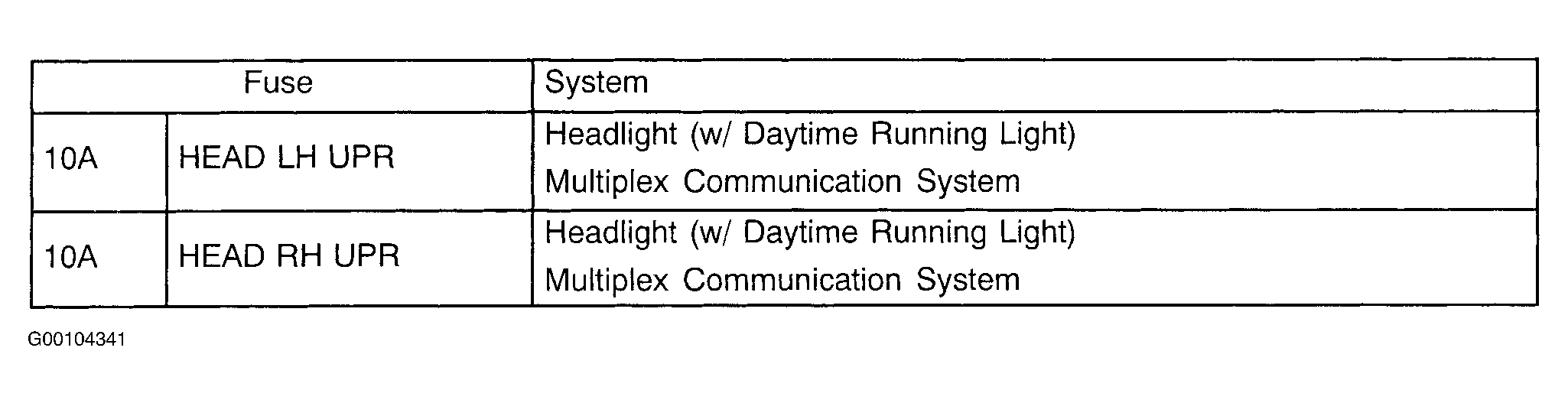

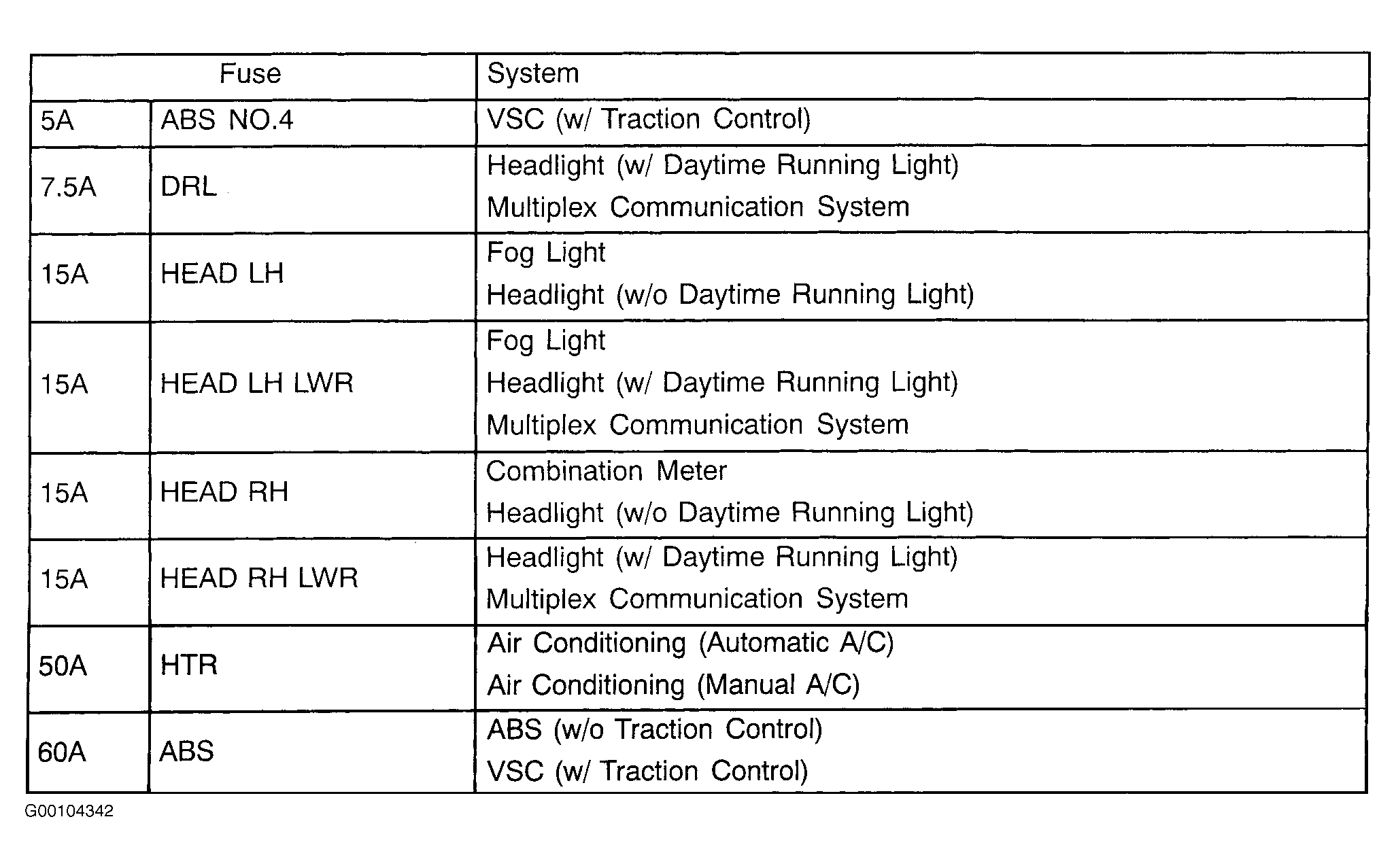

Fig 8: Engine Room R/B No. 5 Legend

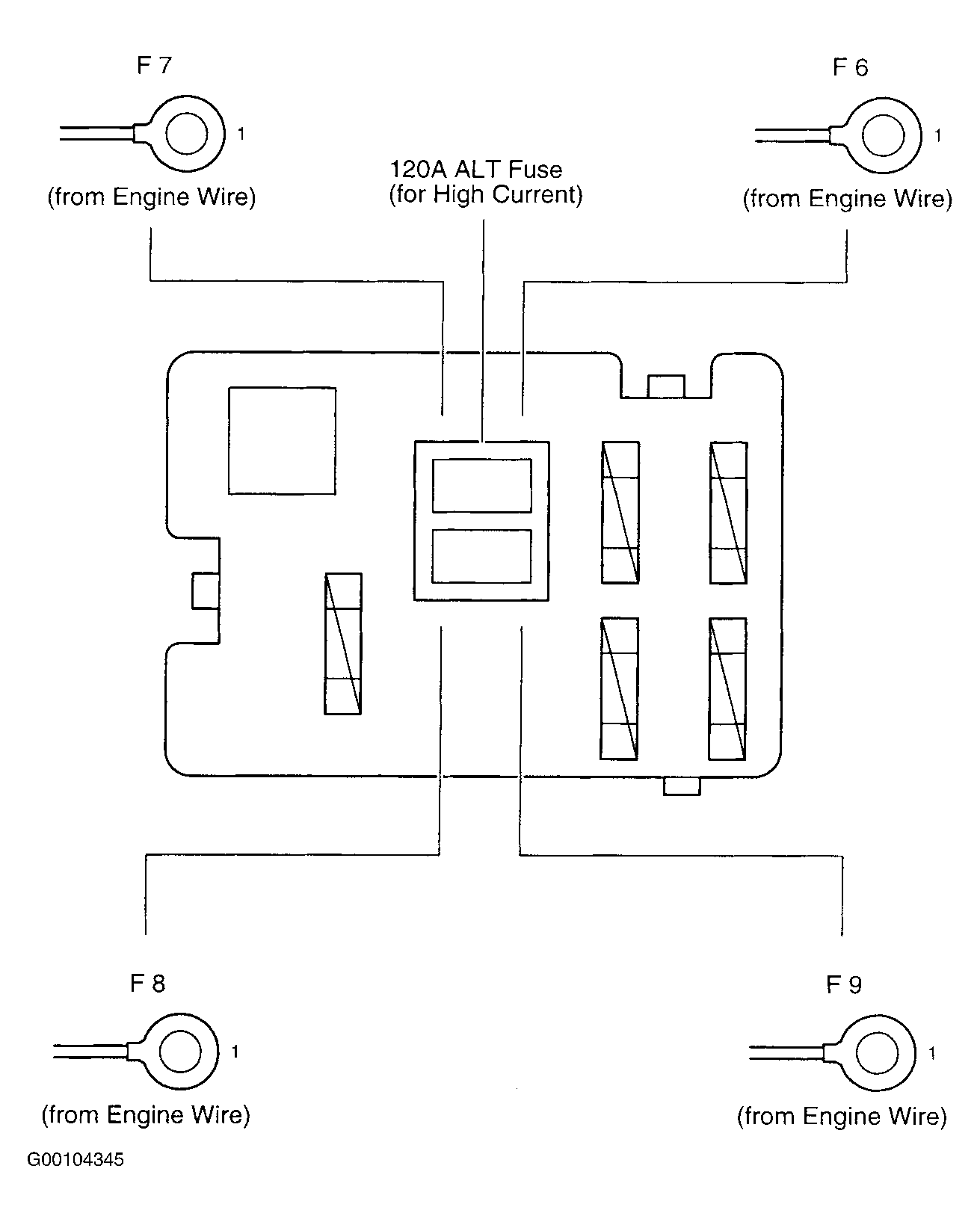

Fig 9: Identifying Fusible Link Block Components

Fig 10: Fusible Link Block Legend
