| A/C Compressor Bolt |
13 (18) |
| A/C Compressor Mounting Bracket Bolt |
35 (47) |
| Air Intake Chamber Bolt/Nut |
13 (18) |
| Air Intake Chamber Support Brace Bolt |
30 (41) |

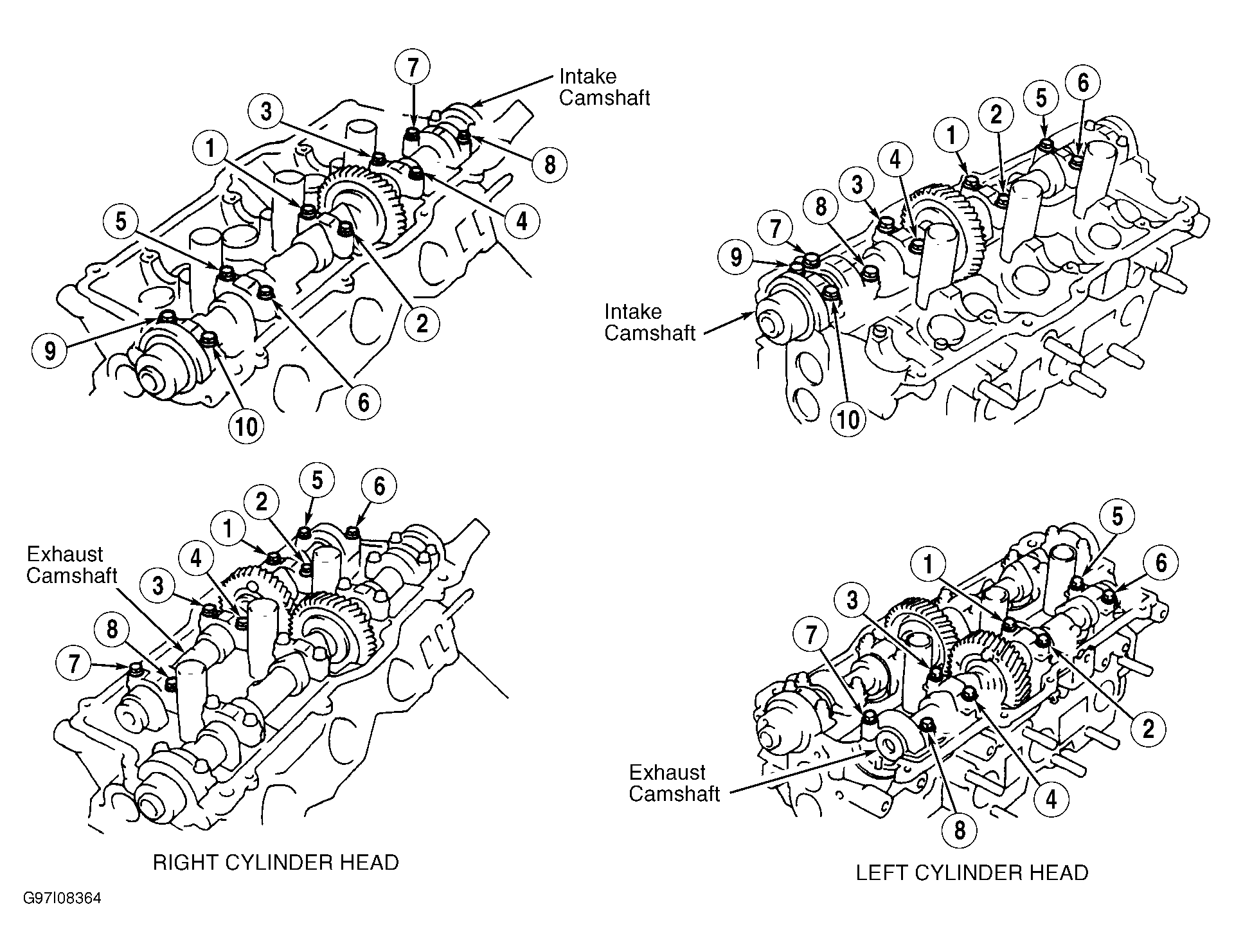

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Sprocket Retaining Bolt |
81 (110) |
| Center Bearing Support Bolt |
| Tacoma 2WD & Tundra 2WD |
27 (37) |
| Connecting Rod Nut |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
184 (249) |
| Crossover Pipe Nut |
33 (45) |

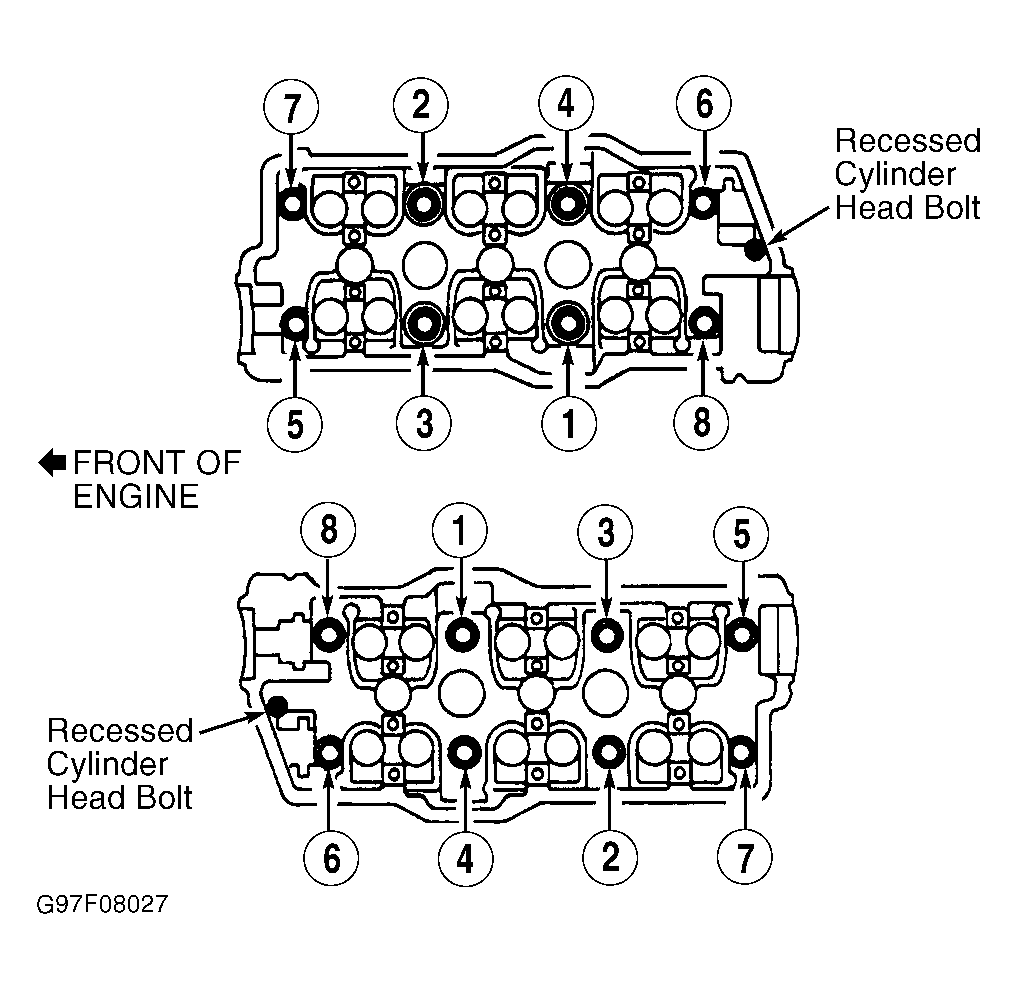

| Cylinder Head Bolt |
| 12-Point Bolt |
| Step 1 |
25 (34) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 90 Degrees |
| Recessed Bolt |
13 (18) |
| Drive Shaft Flange-To-Front Differential Flange Bolt/Nut |
54 (73) |
| Drive Shaft Flange-To-Rear Differential Flange Bolt/Nut |
54 (73) |
| Drive Shaft Flange-To-Transfer Case Flange Bolt/Nut |
54 (73) |
| EGR Pipe Nut |
| Nut At Clamp On EGR Pipe |
|
| Nut At End Of EGR Pipe |
14 (19) |
| Engine Hanger-To-Hoist Bolts |
30 (41) |
| Engine Mount-To-Frame Bolt/Nut |
28 (38) |
| Exhaust Manifold Nut |
30 (41) |
| Flywheel/Drive Plate Bolt |
| A/T |
61 (83) |
| M/T |
63 (85) |
| Front Axle Shaft Flange-To-Side Gear Shaft Flange Nut |
Tundra 4WD
|
61 (83) |
| Front Crossmember Bolt/Nut |
| Tundra 4WD |
93 (126) |
| Front Differential Mount Bolt |
| Tacoma 4WD & 4Runner 4WD |
101 (137) |
| Tundra 4WD |
123 (167) |
| Front Differential Rear Mount Bolt/Nut |
| Tundra 4WD |
108 (146) |
| Front Differential Rear Mount Nut |
| Tacoma 4WD & 4Runner 4WD |
64 (87) |
| Front Exhaust Pipe-To-Catalytic Converter Bolt |
| Tacoma & Tundra |
35 (47) |
| Front Exhaust Pipe Support Bracket Bolt |
33 (45) |
| Front Exhaust Pipe-To-Crossover Pipe Nut |
46 (62) |
| Front Exhaust Pipe-To-Rear Exhaust Bolt |
| 4Runner |
35 (47) |
| Fuel Crossover Pipe Union Bolt |
25 (34) |
| Fuel Inlet Pipe-To-Fuel Rail Union Bolt |
25 (34) |
| Generator Mounting Bracket Bolt |
14 (19) |
| Intake Air Connector Bolt/Nut |
13 (18) |
| Intake Manifold Bolt/Nut |
13 (18) |
| Intake Manifold Support Brace Bolt |
13 (18) |
| Knock Sensor |
29 (39) |

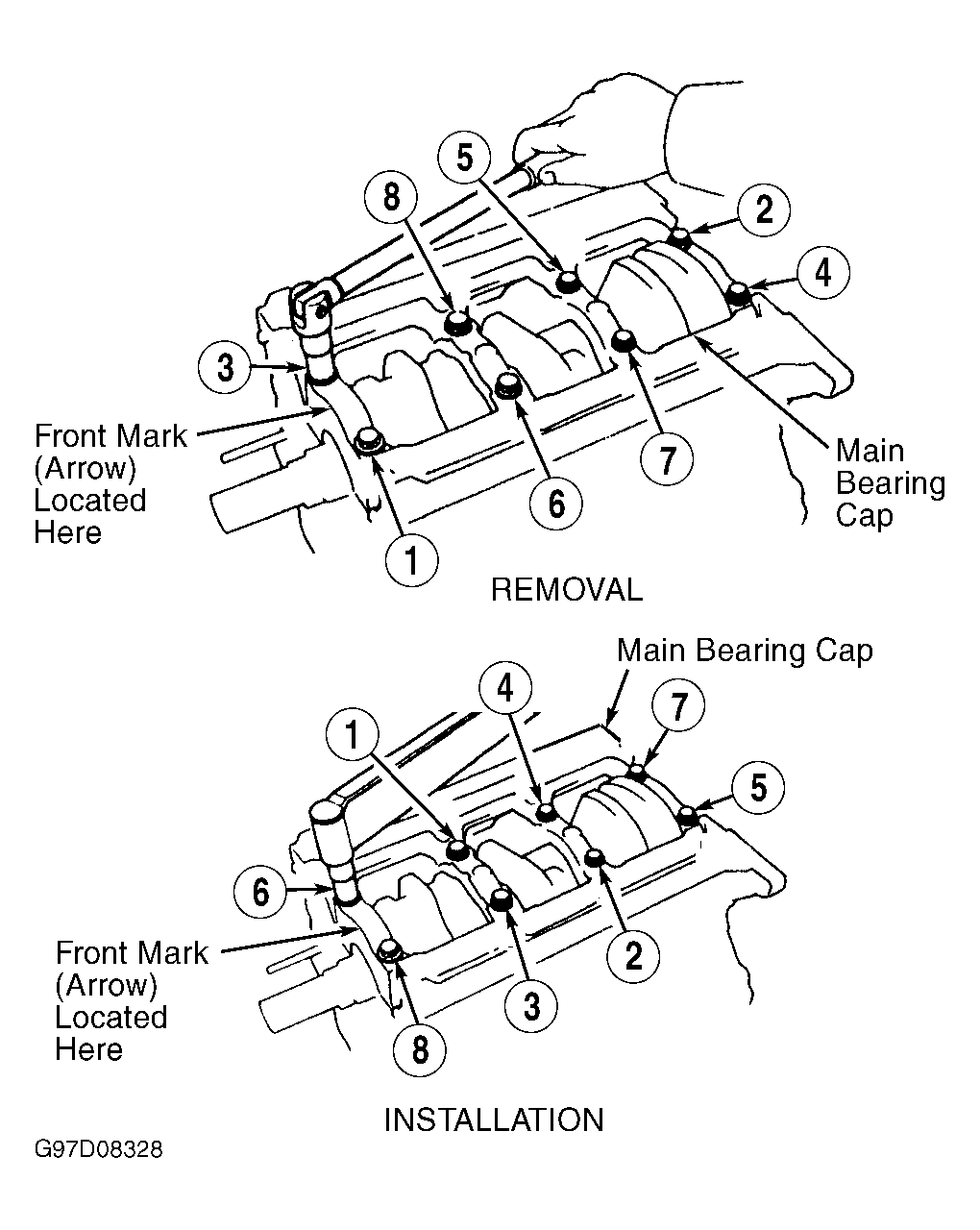

| Main Bearing Cap Bolt |
| Step 1 |
45 (61) |
| Step 2 |
Additional 90 Degrees |
| No. 1 Idler Pulley Bolt |
26 (35) |
| No. 2 Idler Pulley Bolt |
30 (41) |
| No. 2 Idler Pulley Bracket Bolts |
28 (38) |
| Oil Cooler Union Bolt |
43 (58) |
| Oil Pump Bolt |
|
| Power Steering Pump Bolt/Nut |
32 (43) |
| Power Steering Pump Mounting Bracket Bolt |
14 (19) |
| Radiator Mounting Bolts |
9 (12) |
| Rear Camshaft Bearing Cap Bolt |
12 (16) |
| Rear Engine Mount Bracket Bolts |
13 (18) |
| Rear Transmission Mount-To-Crossmember Bolt |
| Tacoma 2WD, Tundra 2WD & 4Runner 2WD |
43 (58) |
| Rear Transmission Mount Bracket-To-Transmission Mount Bolt |
| Tacoma 2WD, Tundra 2WD & 4Runner 2WD |
13 (18) |
| Right Engine Mount Bracket Bolts |
32 (43) |
| Spark Plug |
13 (18) |
| Stabilizer Bar Mount Bracket-To-Frame Bolt |
| Tundra 2WD |
22 (30) |
| Starter Bolt |
29 (39) |
| Thermostat Housing Nut |
15 (20) |
| Throttle Body Bolts/Nuts |
13 (18) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Torque Converter Bolt |
30 (41) |
| Transmission-To-Clutch Housing Bolt (M/T) |
53 (72) |
| Transmission-To-Cylinder Block Bolt (A/T) |
53 (72) |
| Water Pump Bolt |
15 (20) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor Bolt |
71 (8.0) |
| Clutch Release Cylinder Bolt (Tacoma 2WD & Tundra 2WD) |
106 (12.0) |
| Crankshaft Rear Oil Seal Housing Bolt |
71 (8.0) |
| EGR Pipe-To-Cylinder Head Nut |
71 (8.0) |
| Exhaust Manifold Heat Insulator Nut |
71 (8.0) |
| Fan Clutch-To-Fan Bracket Nut |
48 (5.4) |
| Fuel Inlet Pipe-To-Intake Manifold Clamp Bolt |
71 (8.0) |
| Fuel Pressure Regulator Bolt |
71 (8.0) |
| Fuel Rail-To-Intake Manifold Bolt |
115 (13.0) |
| Ignition Coil-To-Valve Cover Bolt |
69 (7.8) |
| Lower Timing Belt Cover Bolt |
80 (9.0) |
| Oil Pan Bolt/Nut |
67 (7.6) |
| Oil Pump Body Cover Screw |
89 (10.1) |
| Oil Pump Pick-Up Tube Bolt/Nut |
66 (7.5) |
| Rear Plate-To-Cylinder Head Bolt/Nut |
71 (8.0) |
| Rear Timing Belt Cover Bolt |
80 (9.0) |
| Stabilizer Bar-To-Lower Control Arm Bolt (Tundra 2WD) |
115 (13.0) |
| Upper Timing Belt Cover Bolt |
80 (9.0) |
| Valve Cover Bolt |
53 (6.0) |
