Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1. For engine room No. 5 and engine room R/B legends, see POWER SOURCE (CURRENT FLOW CHART) .

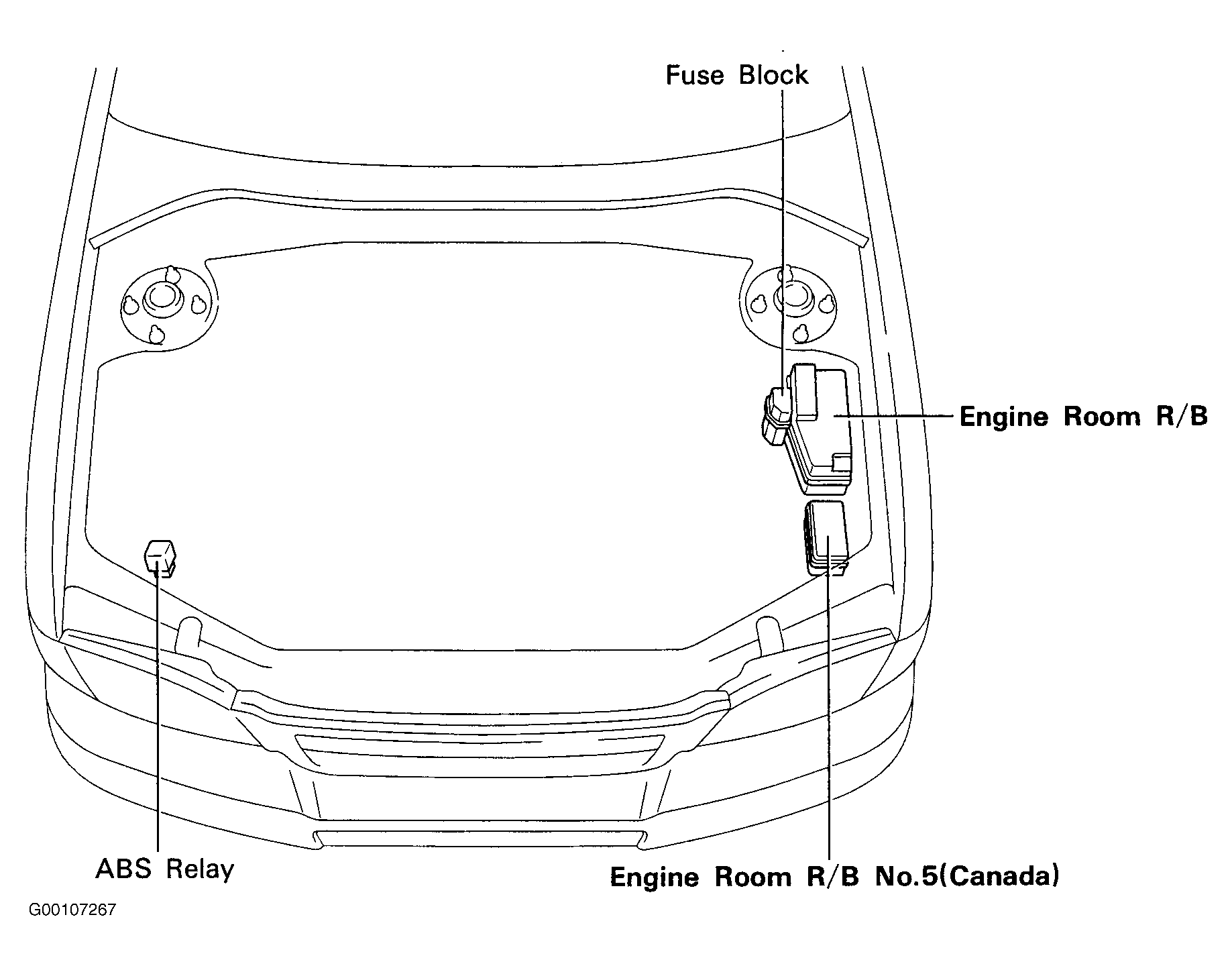

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Engine Room R/B No. 5 Components (Canada Only)

Fig 3: Identifying Engine Room R/B Components
