SCANTOOL DATA LIST ERROR - CALIFORNIA SPEC.
TECHNICAL SERVICE BULLETIN
Reference Number(s): SS002-98, Date of Issue:
August 21, 1998
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
SCANTOOL DATA LIST ERROR
Model(s): 1998 Toyota RAV4 California Spec.
Section: Special Service Tools
Bulletin No.: SS002-98
Date: August 21, 1998
INTRODUCTION

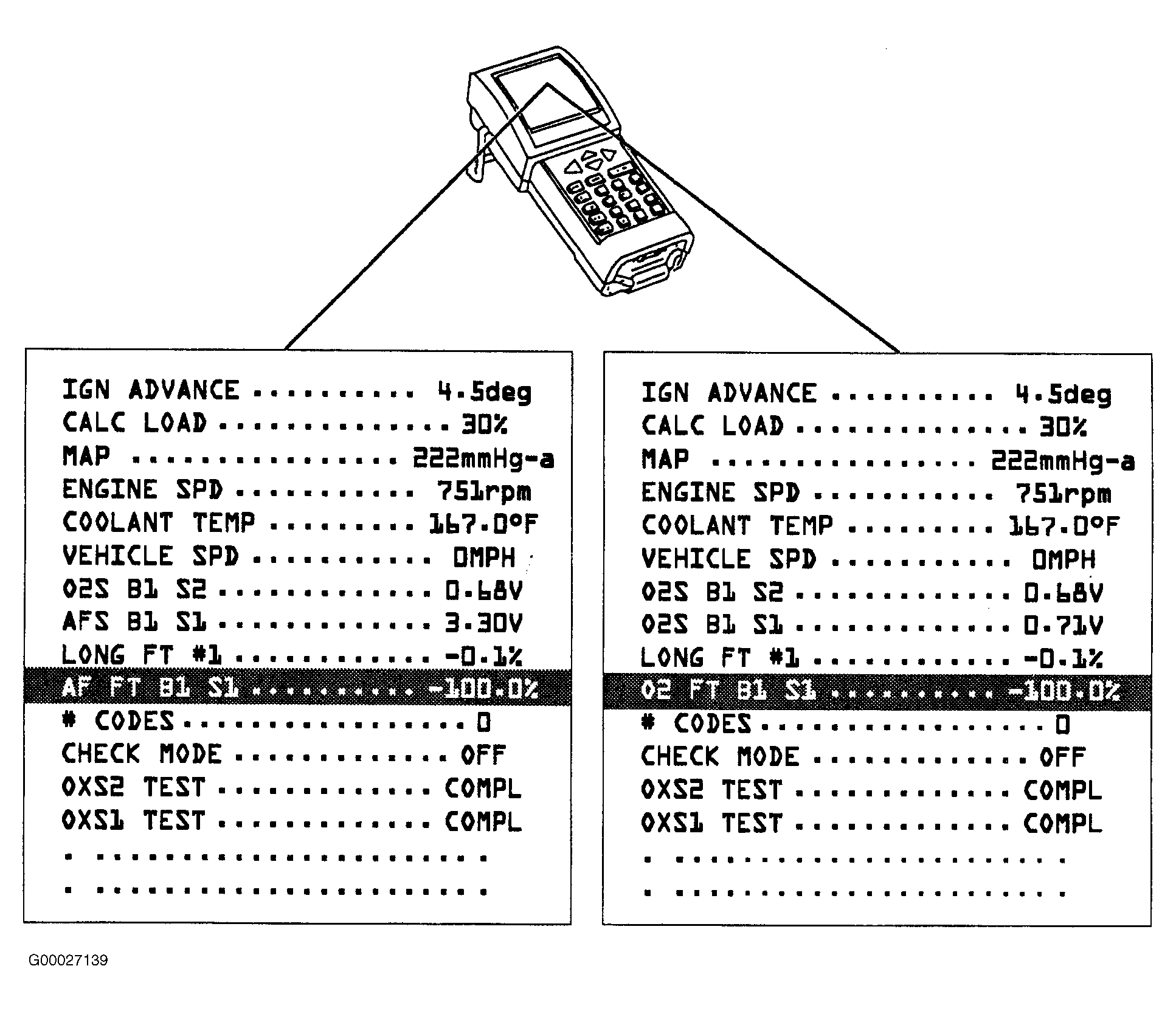

Due to an internal ECU data transmission error, the Toyota Diagnostic Tester will always display -100% for the AF FT B1 S1 and the O2 FT B1 S1 when viewing the data list on 1998 RAV4 with California Emissions. See Fig 1. Please use the SHORT FT #1 data instead.
NOTE:
This condition has no effect on actual vehicle performance.
AFFECTED VEHICLES
1998 model year RAV4 with California Emissions built before
- VIN JT3* P10V* W0181684 (plant code 0) or
- VIN JT3* P10V* W7033736 (plant code 7)
WARRANTY INFORMATION
WARRANTY INFORMATION
| OPCODE | Description | Time | OPN | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | ---- | --- | -- | -- |
SERVICE PROCEDURE

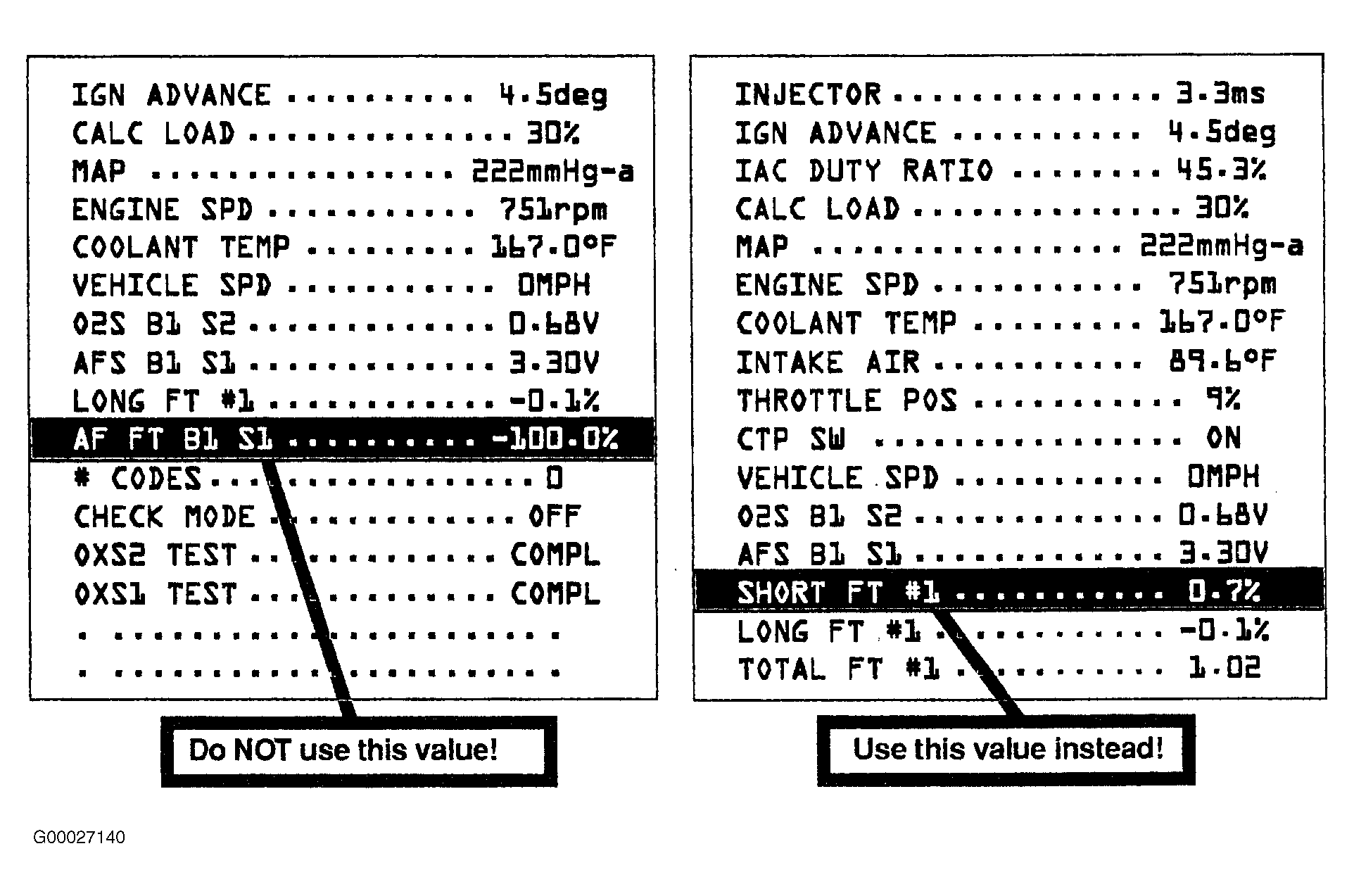

- For AF FT B1 S1 (left on screen in Fig 2) use SHORT FT #1 (right screen in Fig 2) instead.
- For O2 FT B1 S1 (left on screen in Fig 3) use SHORT FT #1 (right screen in Fig 3) instead.
