Ts TERMINAL CIRCUIT

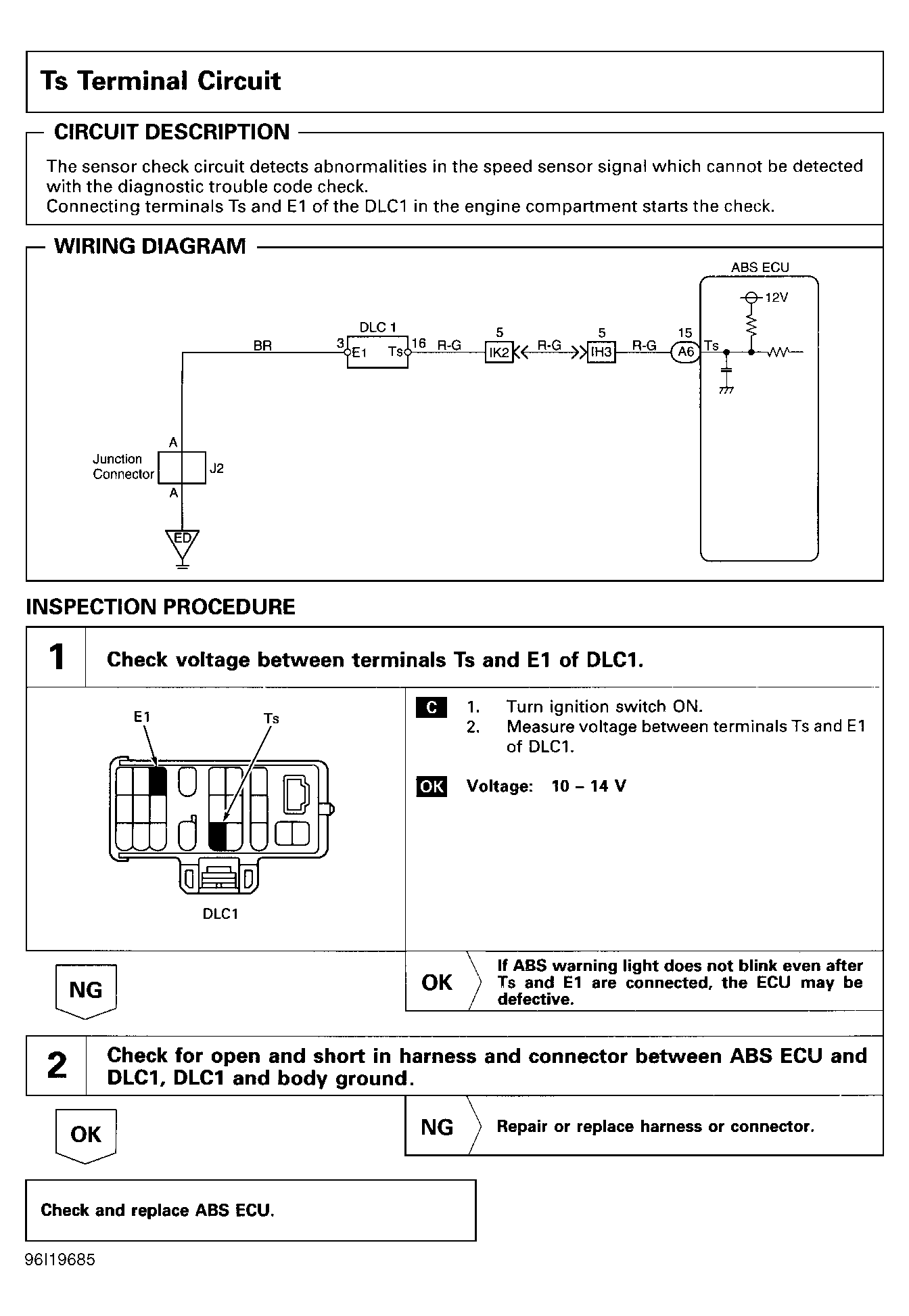

Fig 1: Ts TERMINAL CIRCUIT CHART

G96I19685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
