Clutches
>>
Removal & Installation
>>
Clutch Assembly
>>
Notes
Clutch Assembly: Notes

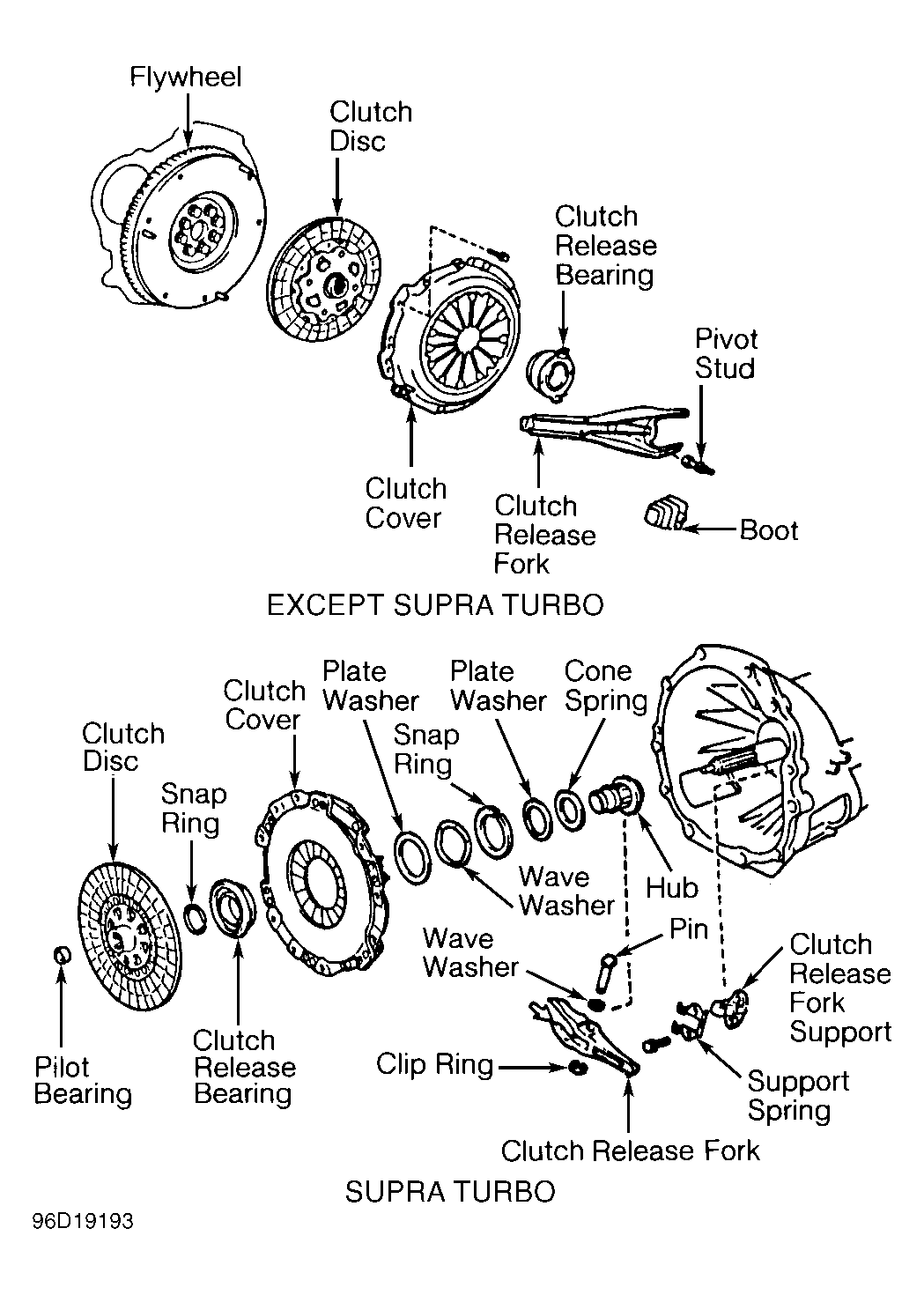

Fig 1: Exploded View Of Clutch Assembly (Typical)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

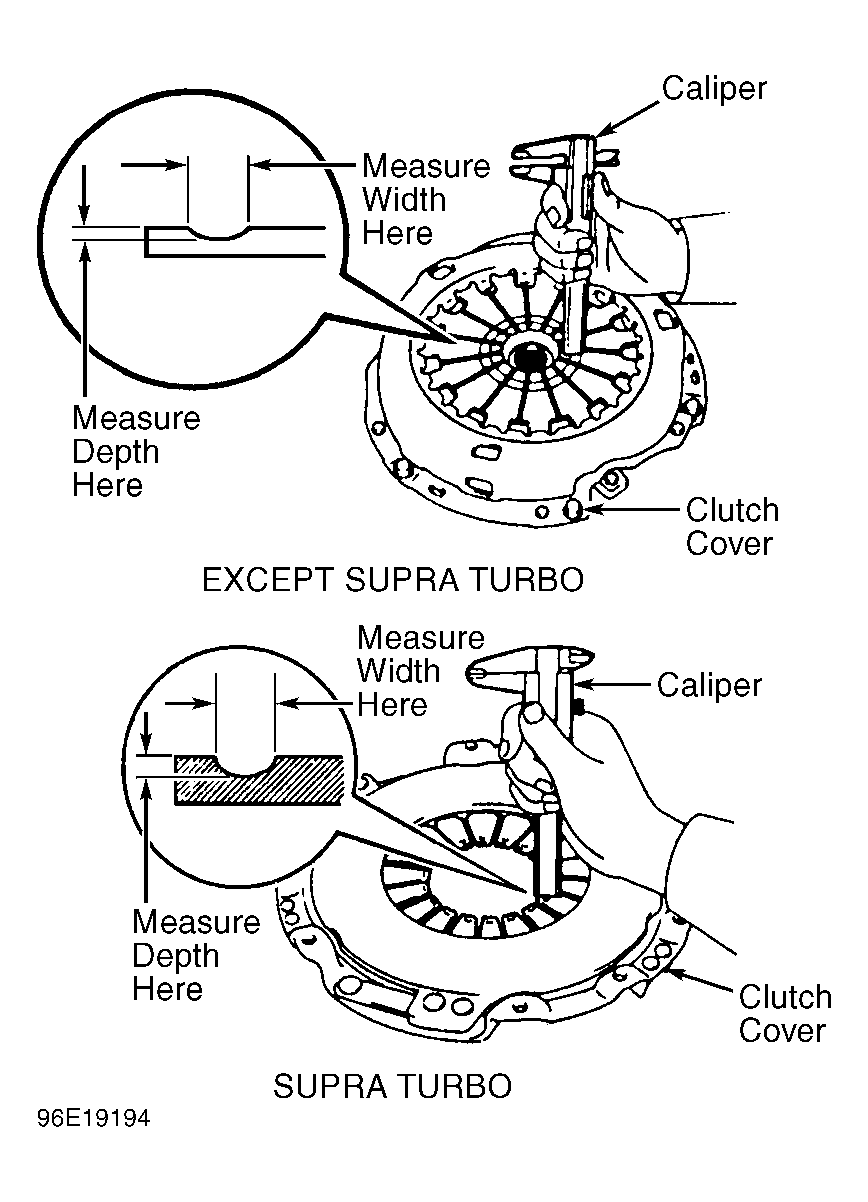

Fig 2: Checking Diaphragm Spring Depth & Width (Typical)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

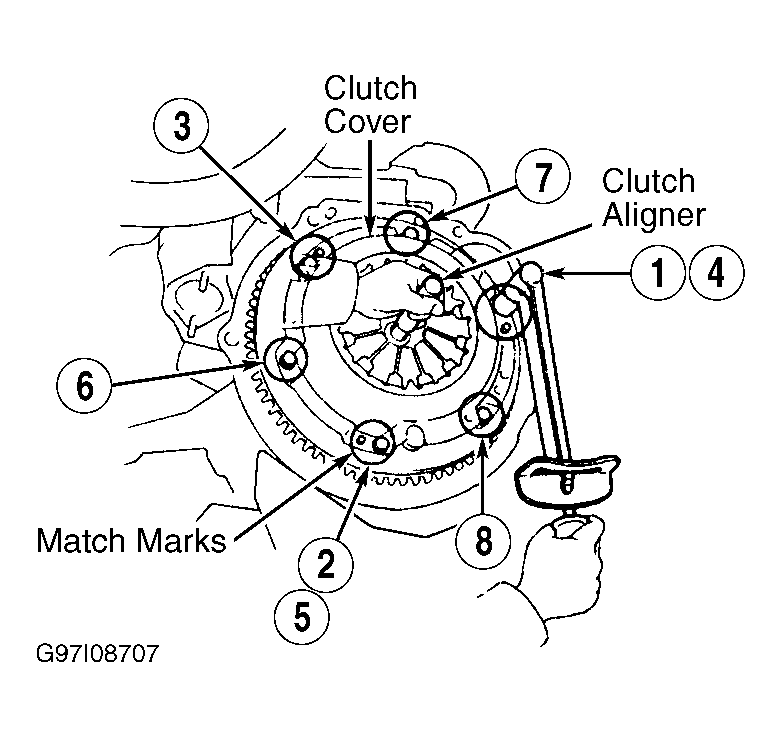

Fig 3: Identifying Clutch Cover Tightening Sequence (Typical)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
