Pattern Select Switch

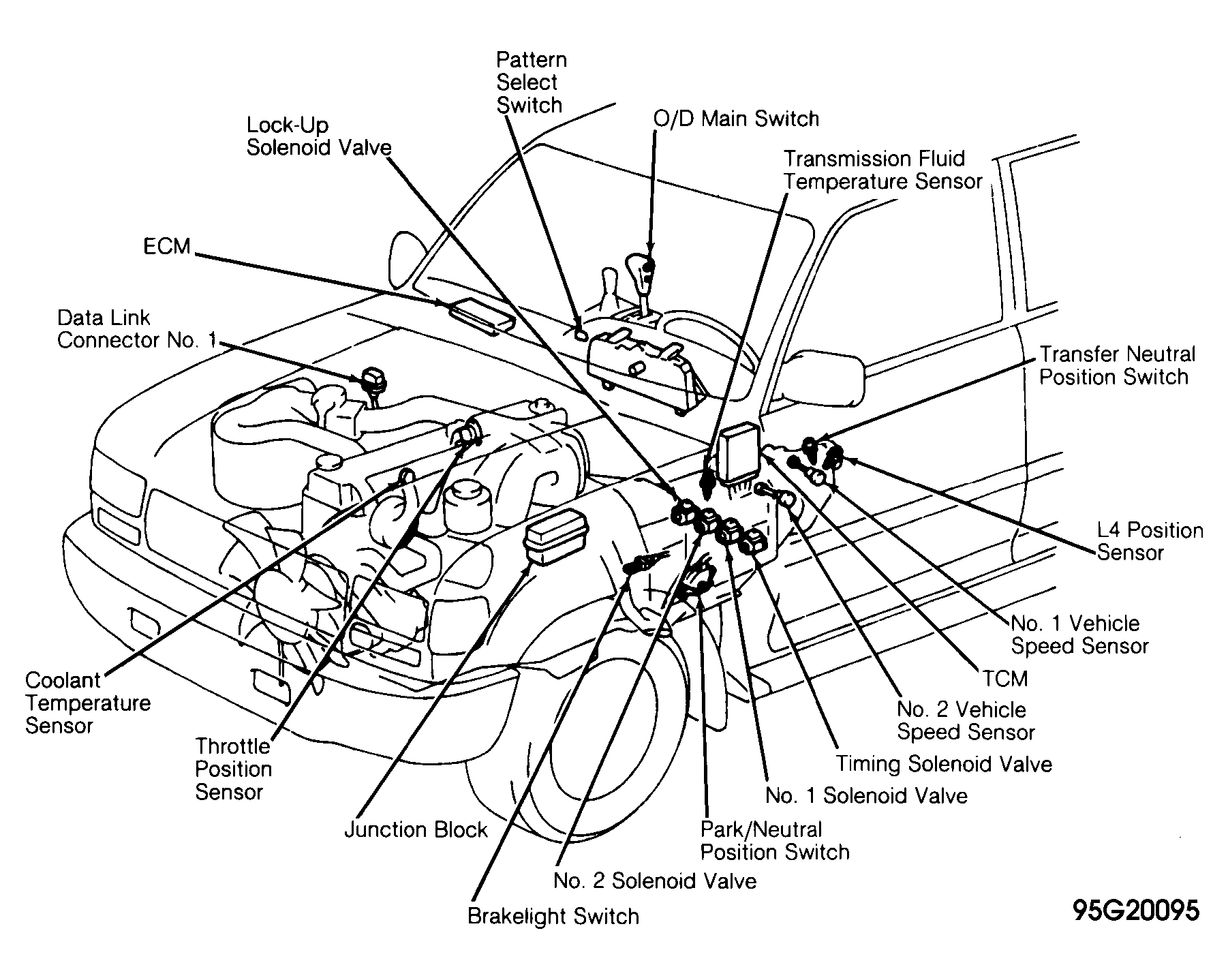

Pattern select switch delivers an input signal to TCM to indicate transmission shift points selected by the operator. Pattern select switch is located on dash. See Figure.
