Clutch Assembly: Notes

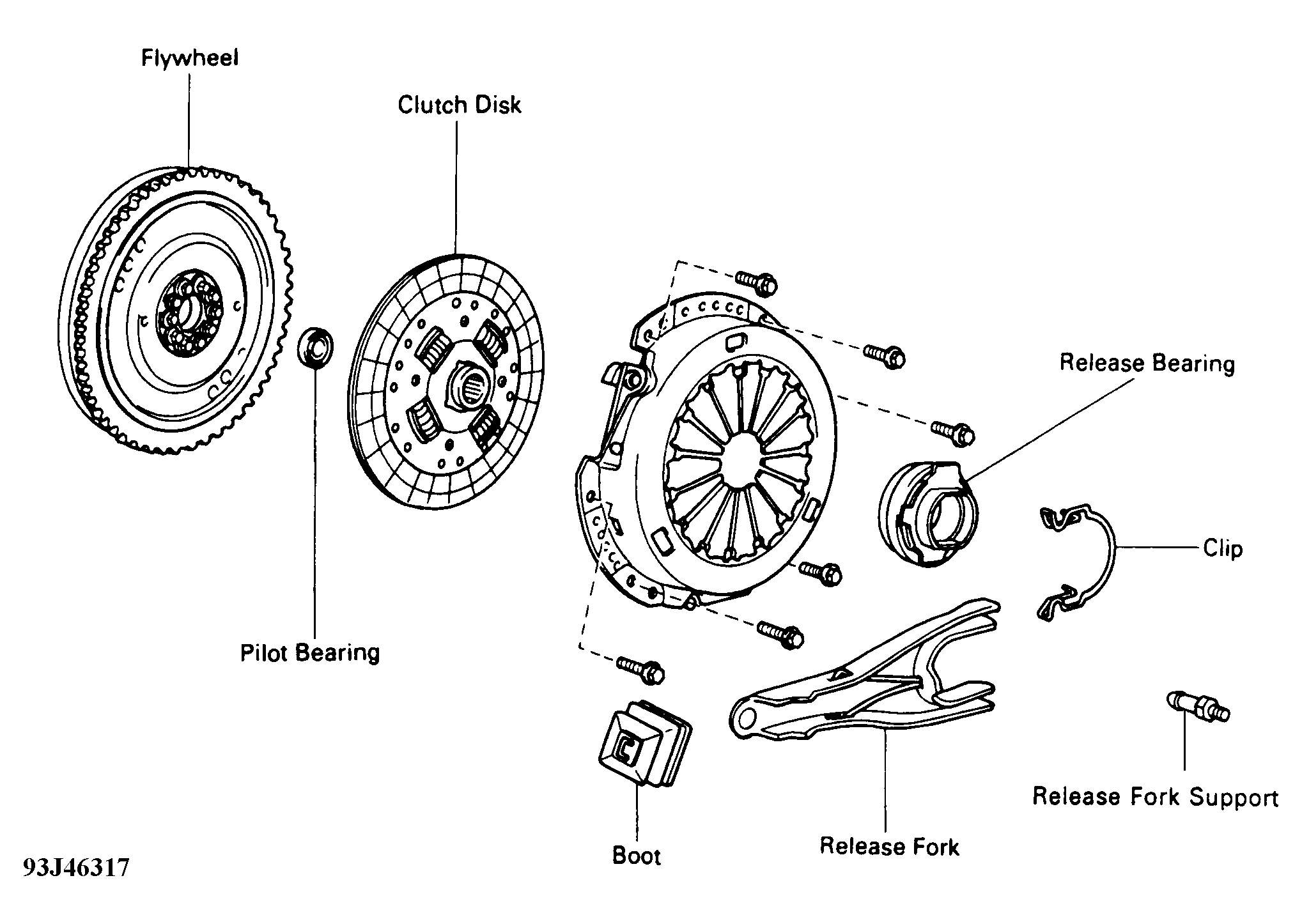

Fig 1: Exploded View Of Clutch Assembly (Similar)

G93J46317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
