Front Washer Switch Test

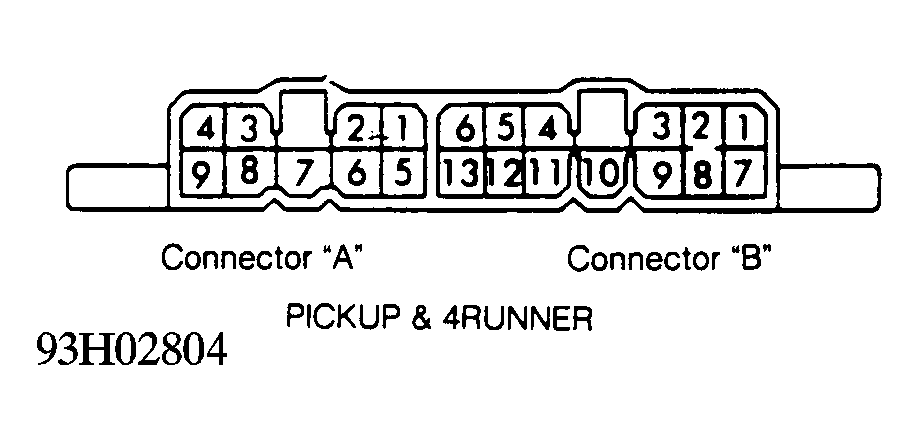

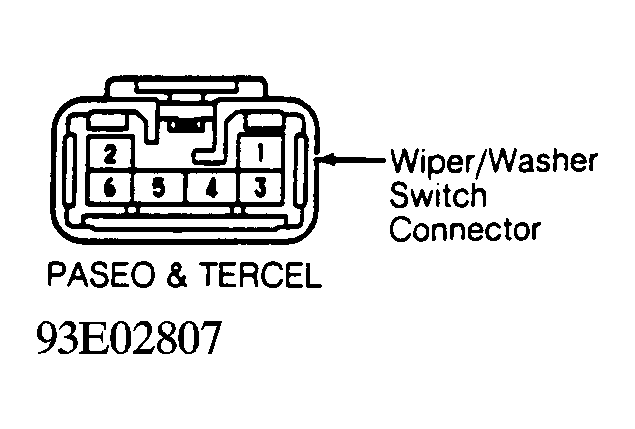

With washer switch in specified position, ensure continuity exists between terminals listed. See WASHER SWITCH CONTINUITY TEST table. See Fig 1, Fig 2 and Fig 3 . Replace complete wiper switch assembly if continuity is not as specified.
WASHER SWITCH CONTINUITY TEST
| Switch Position | (1) Terminals | Continuity | |||
|---|---|---|---|---|---|
| Paseo & Tercel | |||||
| Off | 1, 2, 3, 4, 5 & 6 | No | |||
| On | 3 & 4 | Yes | |||
| Pickup & 4Runner | |||||
| Off | A1 & A2 | No | |||
| On | A1 & A2 | Yes | |||
| Except Pickup, Tercel & 4Runner | |||||
| Off | B8 & B16 | No | |||
| On | B8 & B16 | Yes | |||
|
|||||

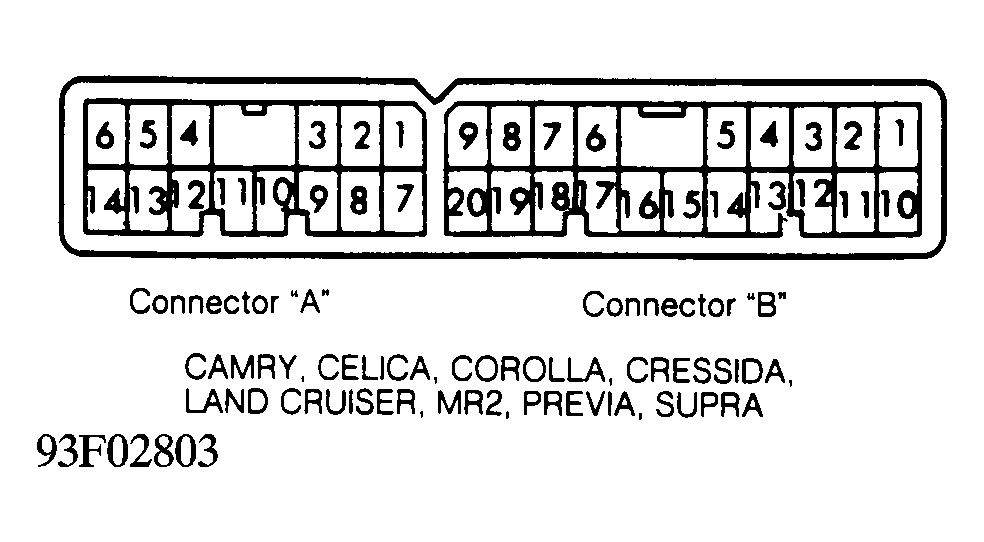

Fig 1: Combination Switch Connector ID For Wipers (Camry, Celica, Corolla, Cressida, Land Cruiser, MR2, Previa, Supra)
