Manually Operating Headlight Doors

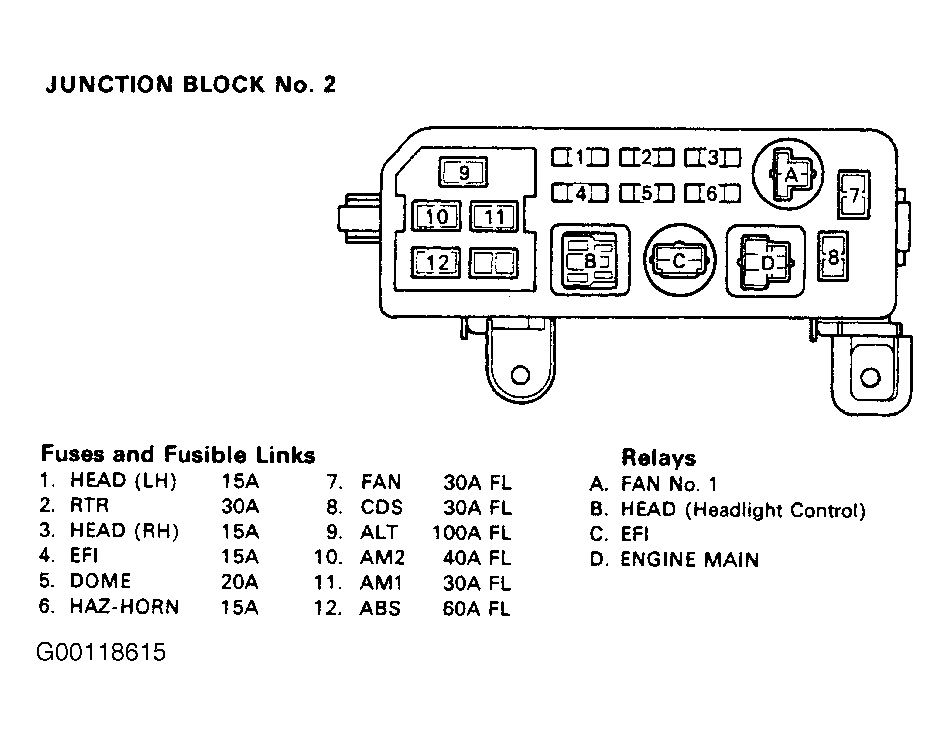

To operate headlight doors manually, remove the RTR fuse. See Figure. Operate the headlight doors with the knob located under the faulty headlight, in front of the front wheel. See Fig 1.

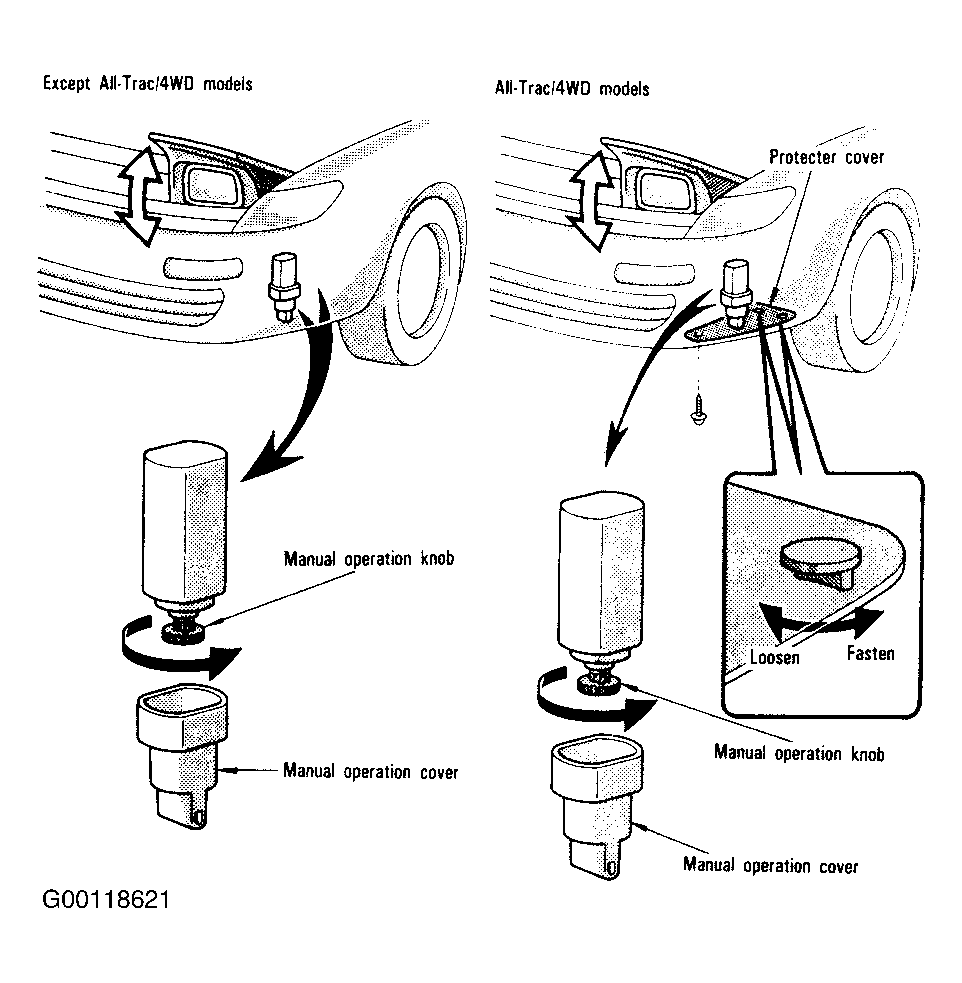

Fig 1: Manually Operating Headlight Door
G00118621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
