Control Switch: Continuity

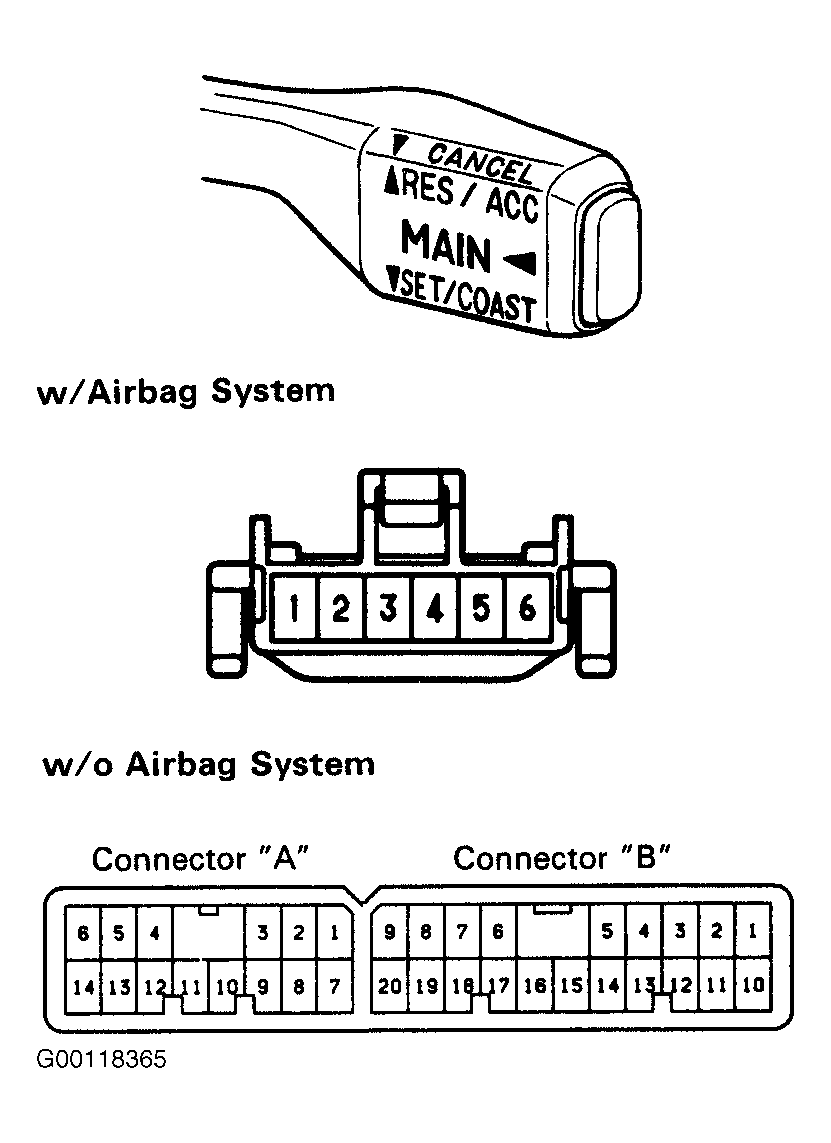

Check continuity between terminals 3 (B-17) and 5 (B-15). See CONTROL SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace control switch.
CONTROL SWITCH CONTINUITY
| Main Switch Position | Condition |
|---|---|
| "OFF" | No Continuity |
| "ON" | Continuity |
