System Flow Charts
>>
Supra
System Flow Charts: Supra

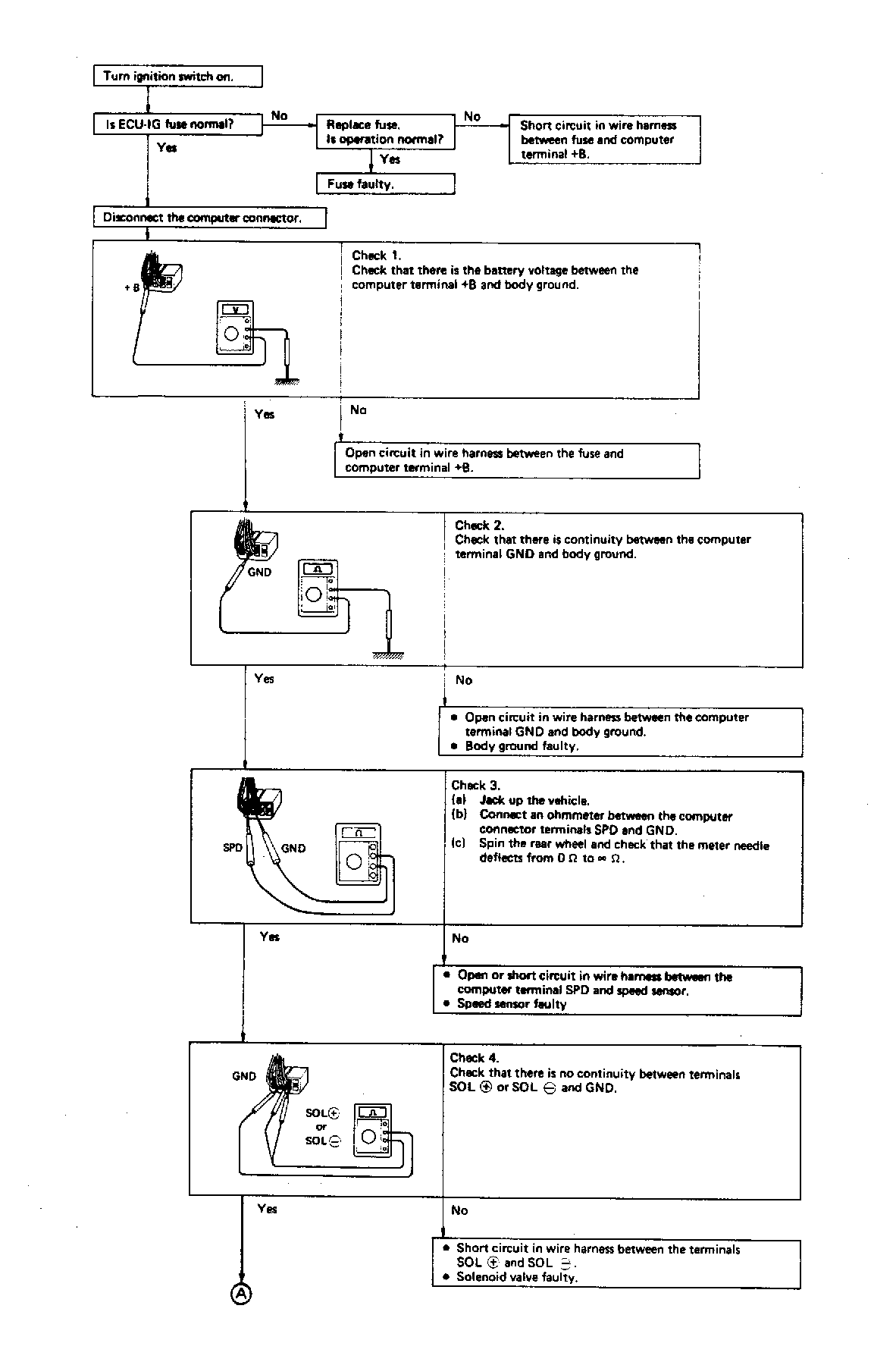

Fig 1: Supra Flow Chart (Part 1 of 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

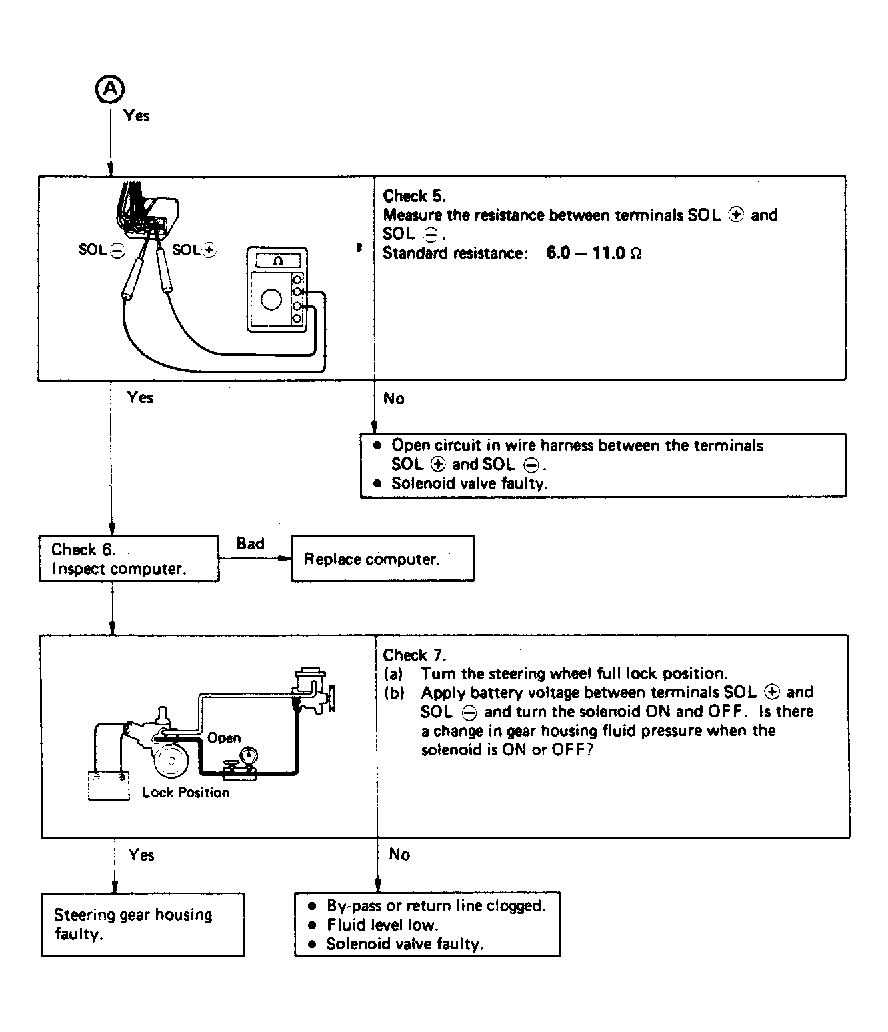

Fig 2: Supra Flow Chart (Part 2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
