Component Locations

For component locations, refer to Fig 1.

On FX models, door lock control relay is behind left side of instrument panel. On other models, door lock control relay is behind door trim panel in passenger door.

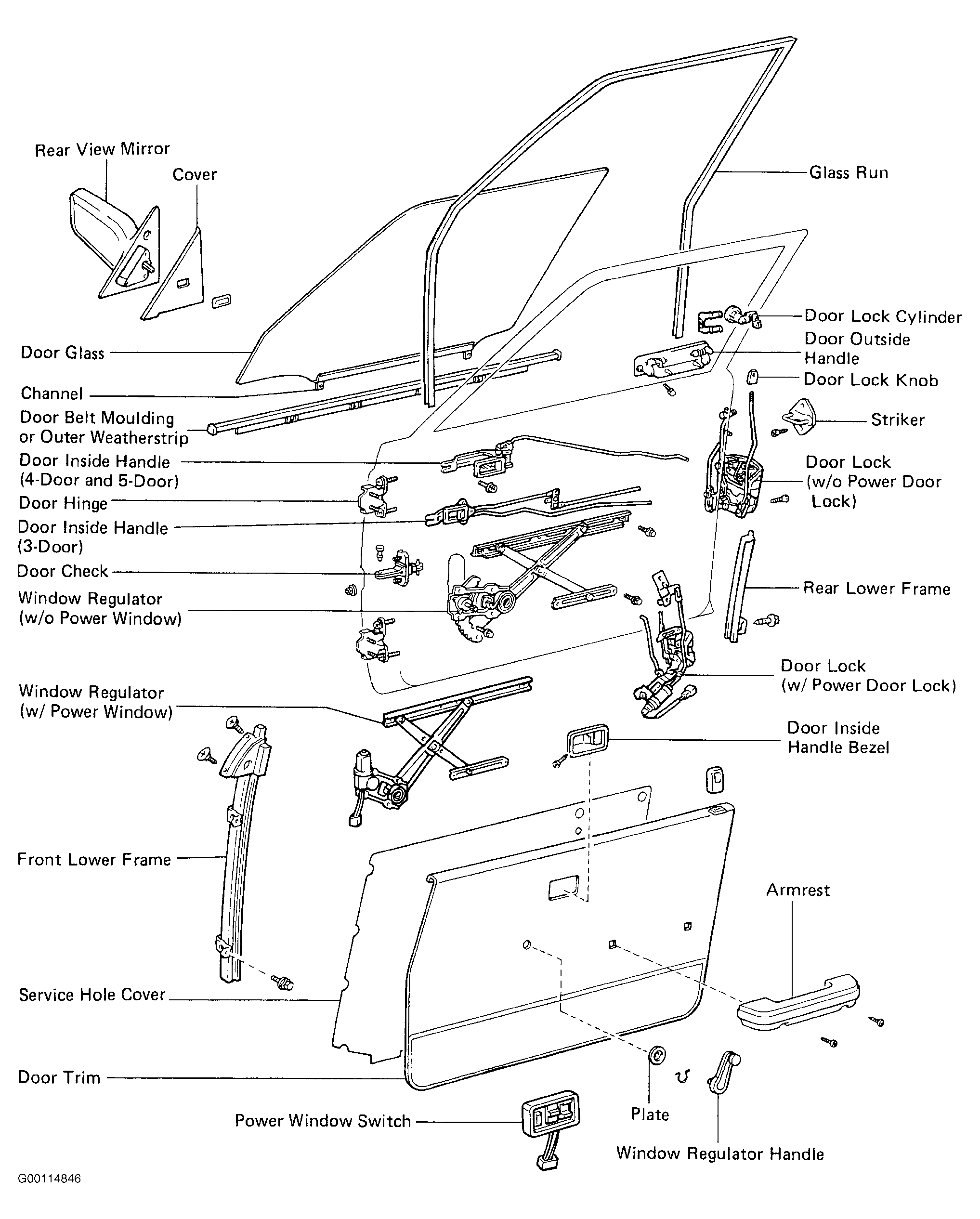

Fig 1: Front Door Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

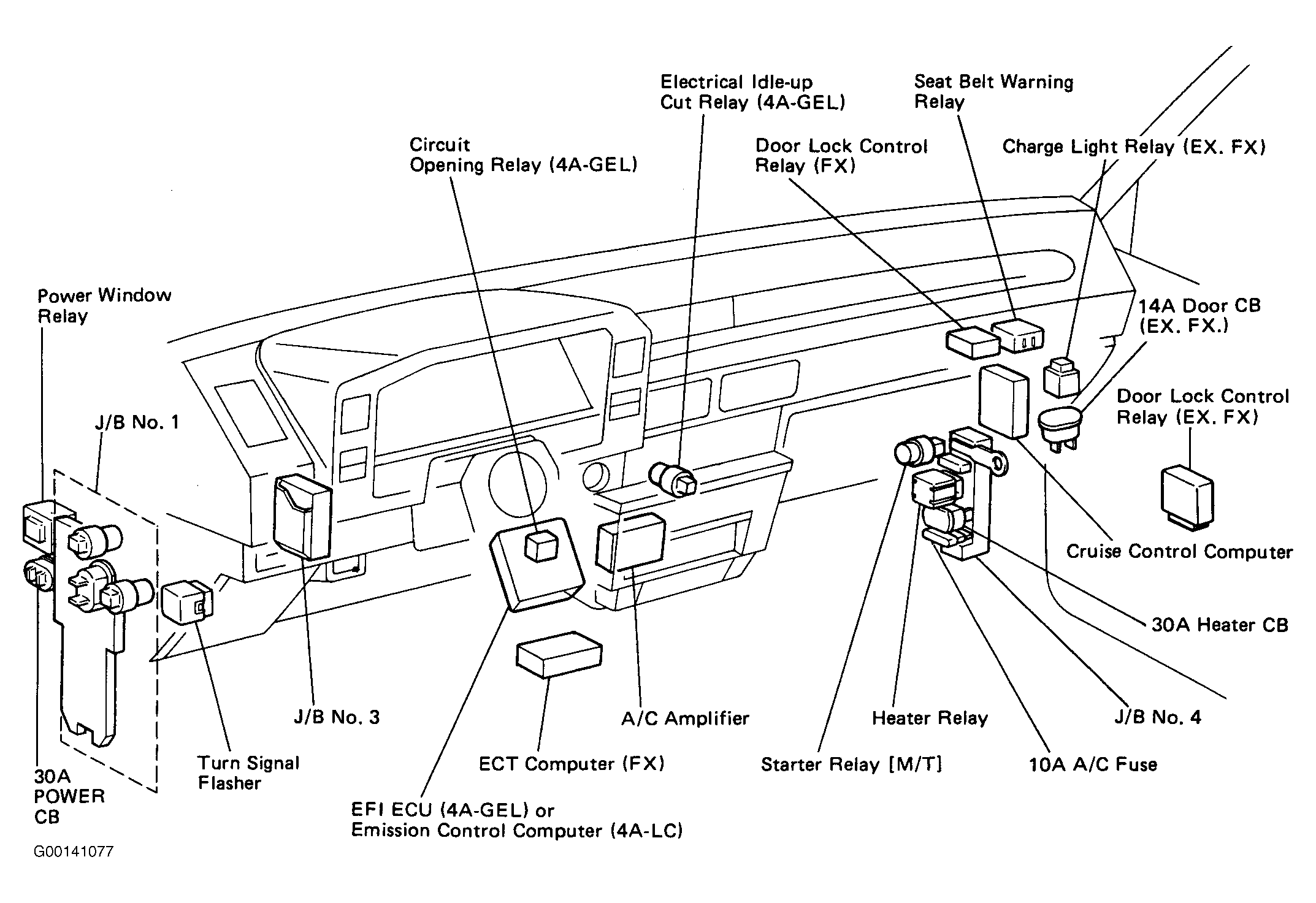

Fig 2: Locating Door Lock Control Relay, Door Circuit Breaker & Power Circuit Breaker

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
