Blower Switch

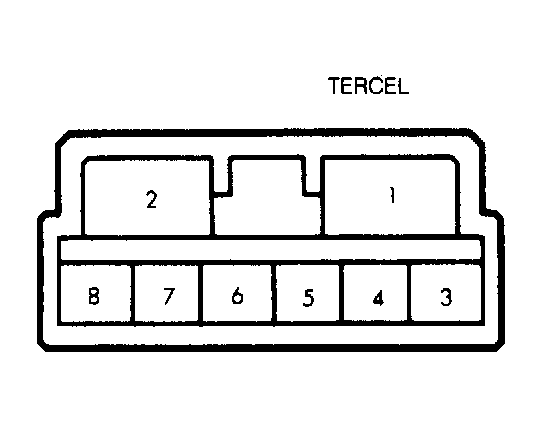

Detach multi-pin terminal from blower switch. Use ohmmeter or circuit tester to check for continuity between terminals at different switch positions as noted in continuity chart and corresponding illustrations. If continuity is not as shown, replace blower switch.
BLOWER SWITCH CONTINUITY CHART
| Switch Position | Terminal Continuity | ||
|---|---|---|---|
| "OFF" | 2 & (1) 6 to 7 | ||
| "I" | 2 to 3 & (1) 6 to 7 | ||
| "II" | 2 to 3 & 4 & (1) 6 to 7 | ||
| "III" | 2 to 3 & 5 & (1) 6 to 7 | ||
| "HI" | 2 to 3 & 1 & (1) 6 to 7 | ||
|
|||
