Blower Resistor

Remove resistor from vehicle, or disconnect wiring in vehicle. With ohmmeter, check continuity between terminals "H" and "L" ("E" and "Hi" on Land Cruiser). If no continuity exists, replace resistor. See Fig 1.

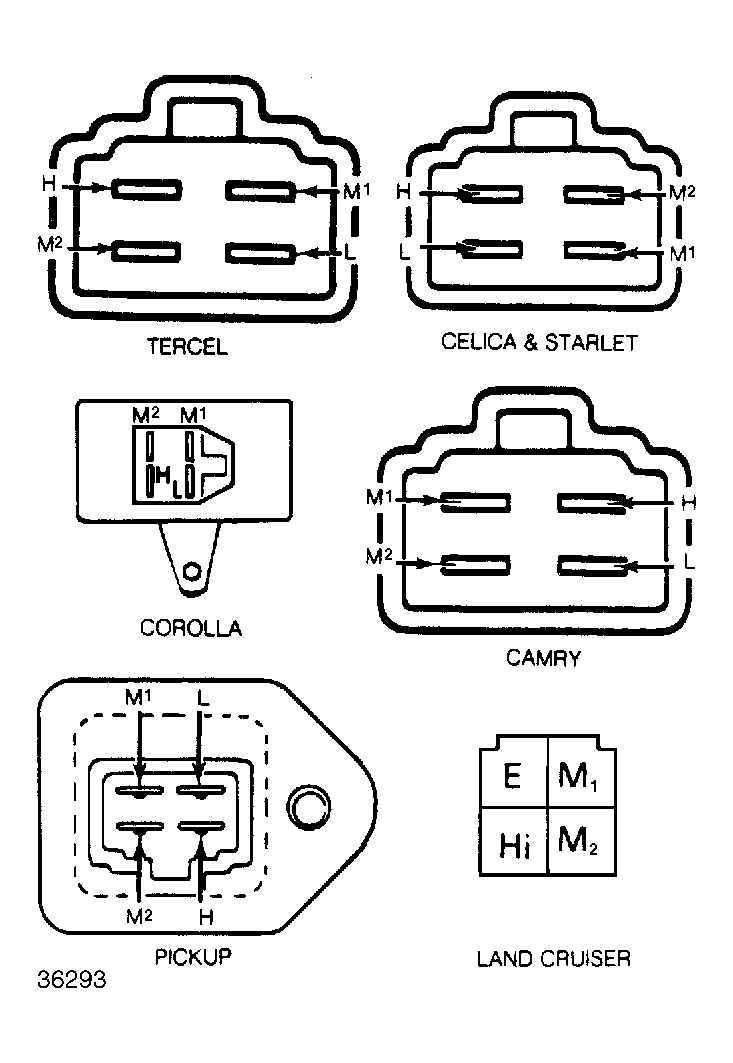

Fig 1: Continuity Test for Blower Resistor Use ohmmeter for test.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
