Firmware Update - Mobile Connector - 2nd Generation: Update

NOTE: Charge the vehicle to at least 55% before continuing with this procedure.
  1. Open the LH front door.
  2. Connect the Gen 2 Mobile Connector to a wall outlet.
  3. Use the button on the Gen 2 Mobile Connector to open the charge port door, and then connect the Mobile Connector to the vehicle.

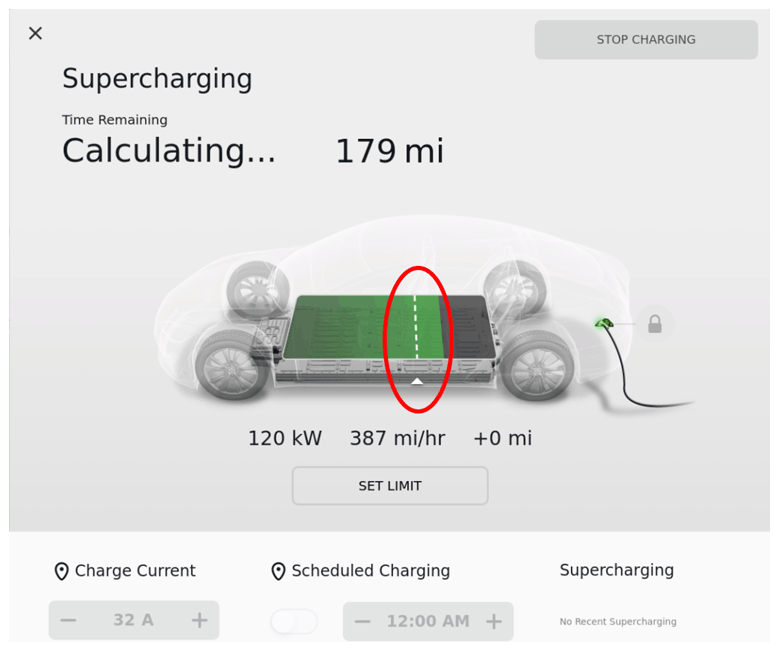

  4. On the touchscreen charging menu, touch Set Limit  , and then set the charge limit below the current charge level.
    G15208138Courtesy of TESLA, INC.
  5. The Gen 2 Mobile Connector firmware update will begin within 1 minute.
    NOTE: A notification will appear on the instrument panel, stating "Charge Connector Update in Progress".
  6. The Gen 2 Mobile Connector firmware update will finish within 3 minutes.
    NOTE: Ignore any charging related error messages that appear on the instrument panel.
  7. Disconnect the Gen 2 Mobile Connector from the vehicle, and then close the charge port door.
  8. Disconnect the Gen 2 Mobile Connector from the wall outlet.
  9. Connect the Gen 2 Mobile Connector to the wall outlet.
  10. Use the button on the Gen 2 Mobile Connector to open the charge port door, and then connect the Gen 2 Mobile Connector to the vehicle.

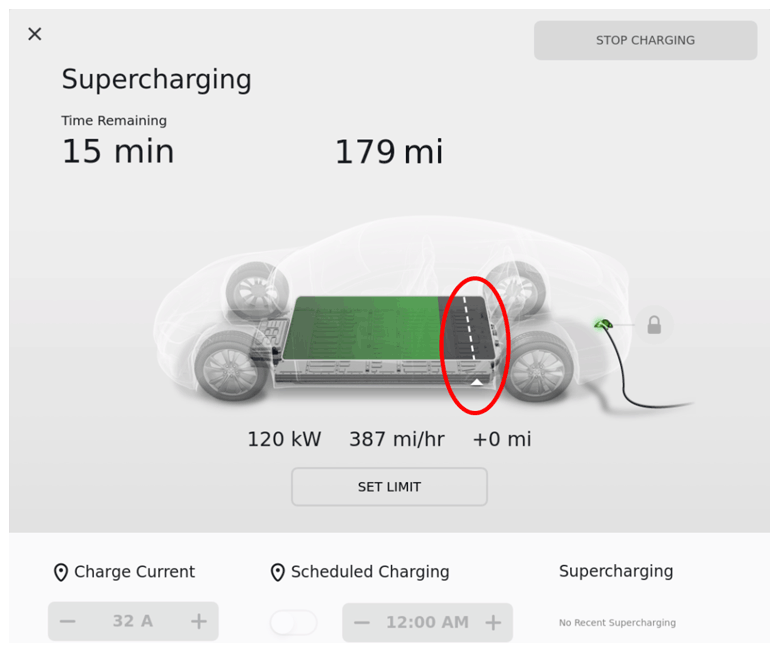

  11. On the touchscreen charging menu, touch Set Limit  , and then set the charge limit above the current charge level.
    G15208139Courtesy of TESLA, INC.
  12. Make sure that the vehicle begins charging.
  13. Disconnect the Gen 2 Mobile Connector from the vehicle, and then close the charge port door.
  14. Disconnect the Gen 2 Mobile Connector from the wall outlet.
