Fuel Tank Inlet Valve Inspection

Reference: FUEL TANK INLET VALVE REMOVAL AND INSTALLATION

Check fuel tank inlet valve for the following.

If any damage or malfunction is found, replace.

• Damage
• Smooth opening and closing

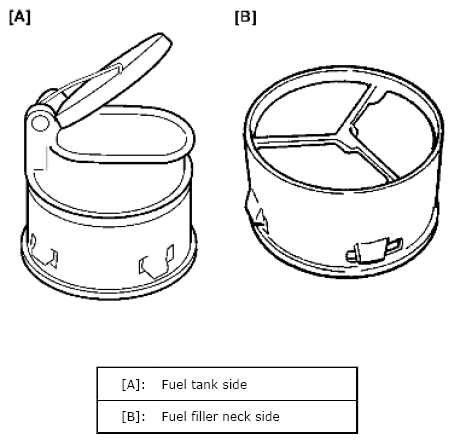

  Fig 1: Identifying Fuel Tank Inlet Valve From Fuel Tank And Fuel Filler Neck Sides

  Courtesy of SUZUKI OF AMERICA CORP.
