Charging System: Wiring Diagram
Charging System: Wiring Diagram

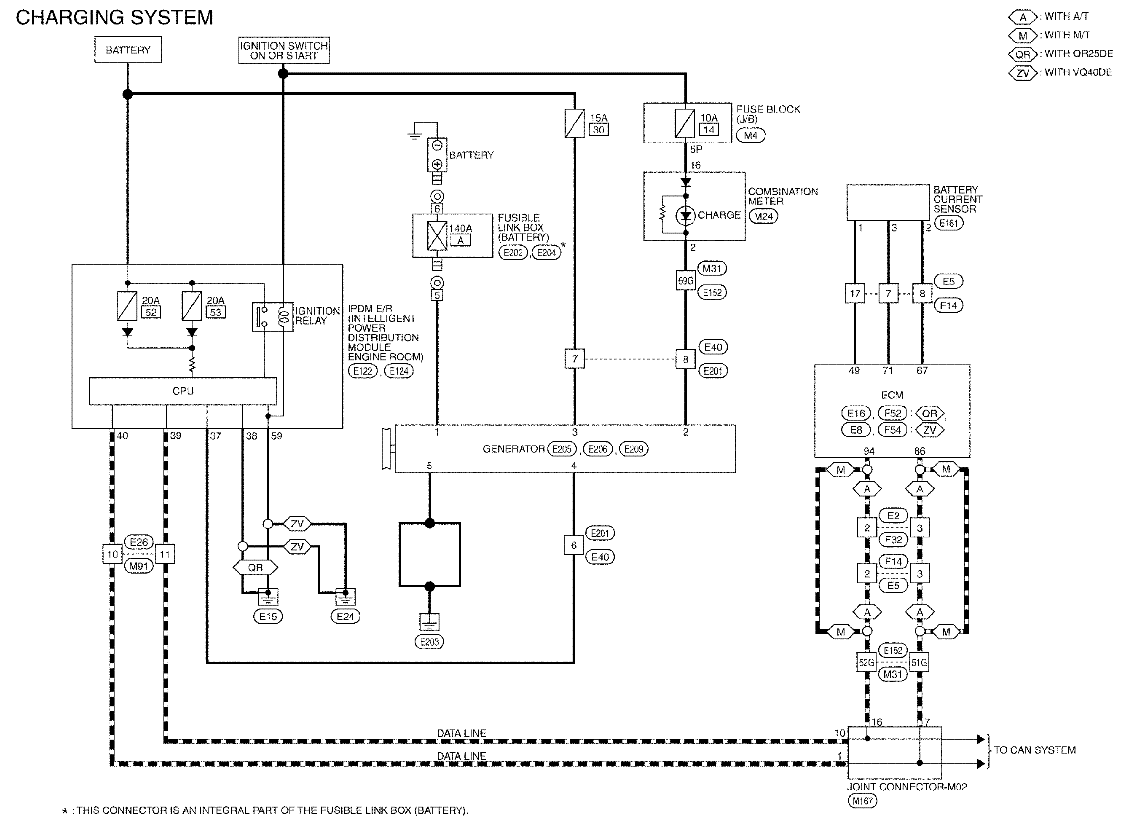

Fig 1: Charging System - Wiring Diagram (1 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

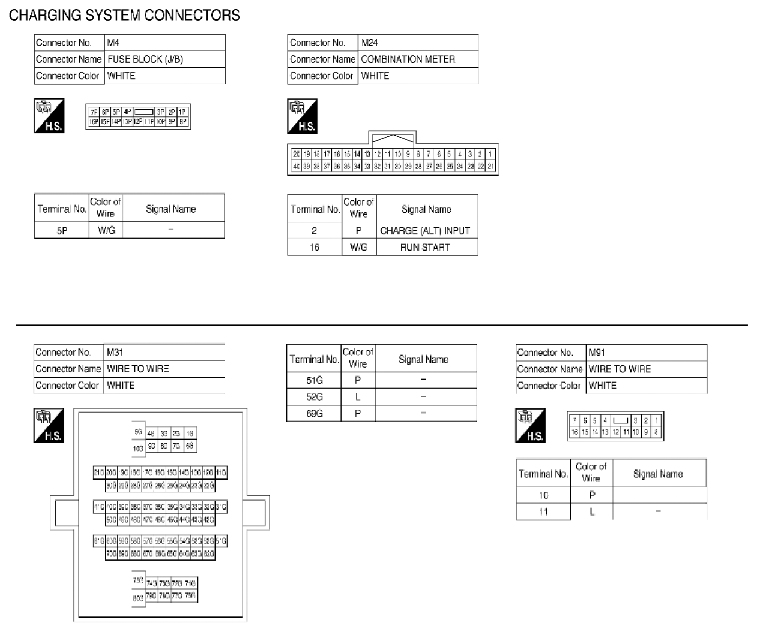

Fig 2: Charging System - Wiring Diagram (2 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

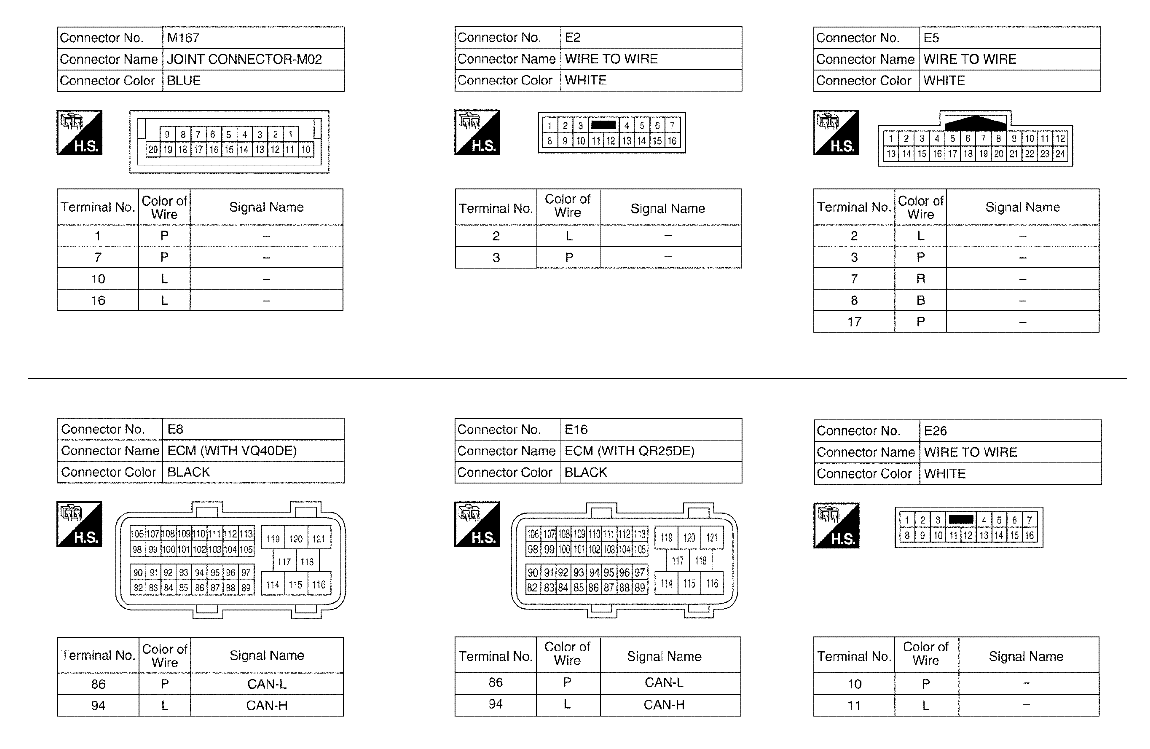

Fig 3: Charging System - Wiring Diagram (3 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

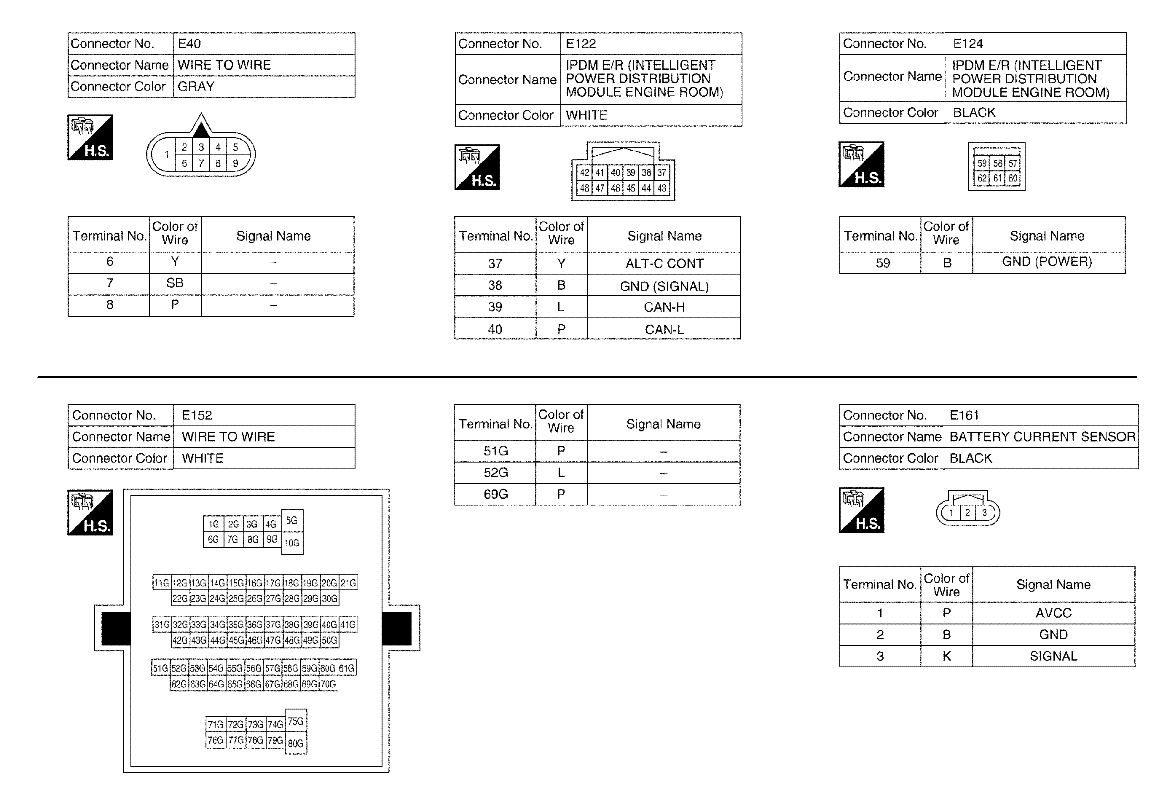

Fig 4: Charging System - Wiring Diagram (4 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

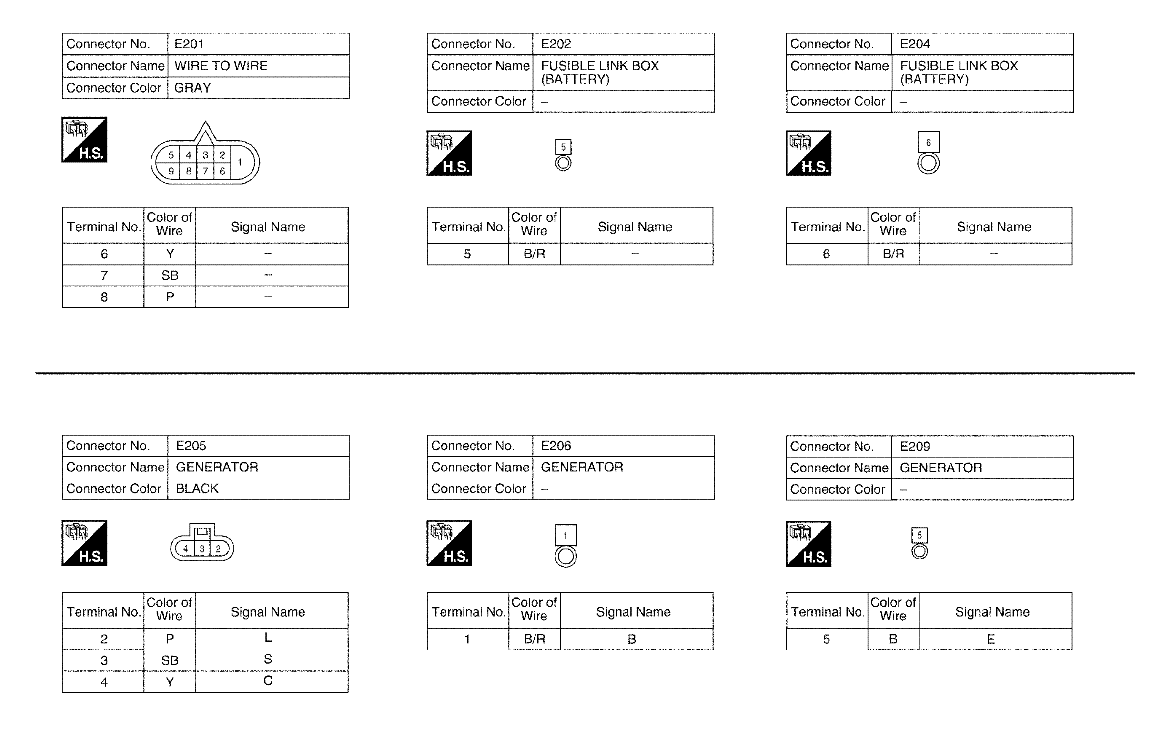

Fig 5: Charging System - Wiring Diagram (5 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.

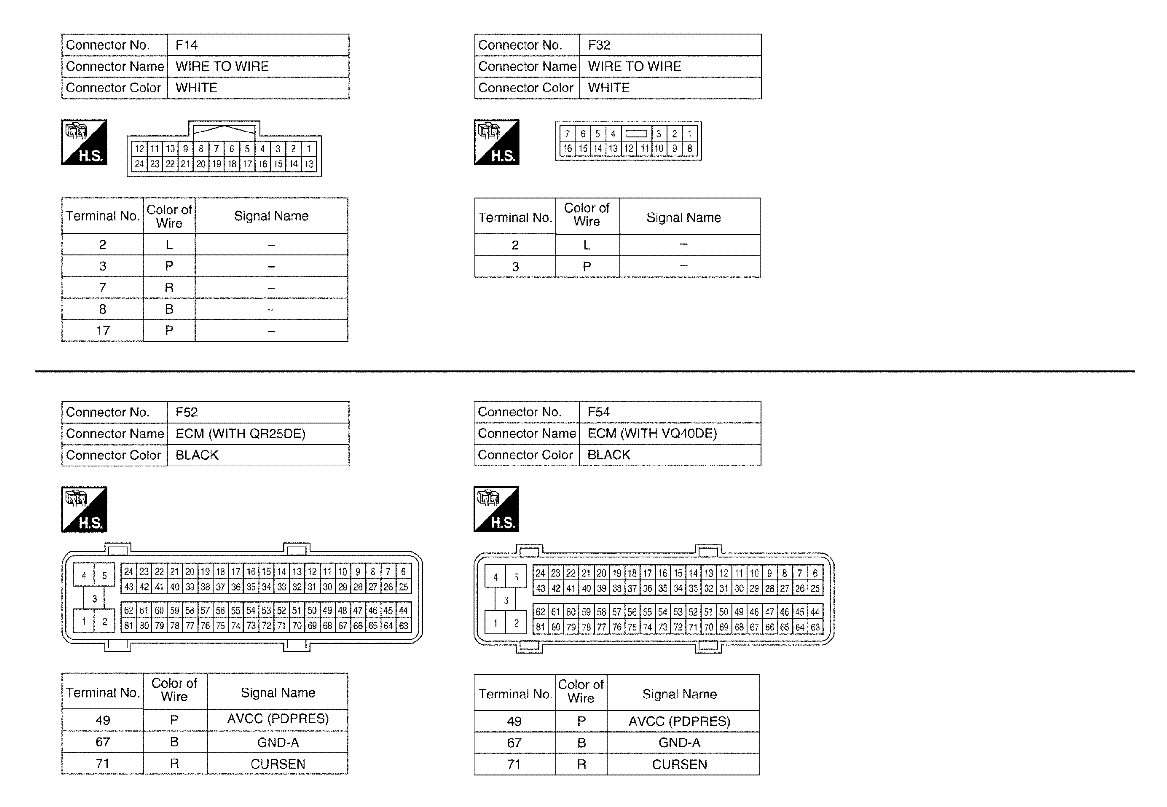

Fig 6: Charging System - Wiring Diagram (6 Of 6)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
