Shift Lock Solenoid Inspection

Check that shift lock solenoid rod (1) moves smoothly when battery voltage is conducted and it moves back.

If solenoid rod does not move smoothly, replace.

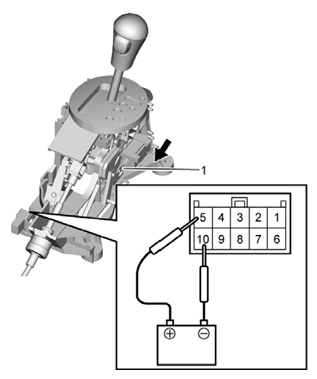

Fig 1: Inspecting Shift Lock Solenoid
G06866773Courtesy of SUZUKI OF AMERICA CORP.
