Console Box Components

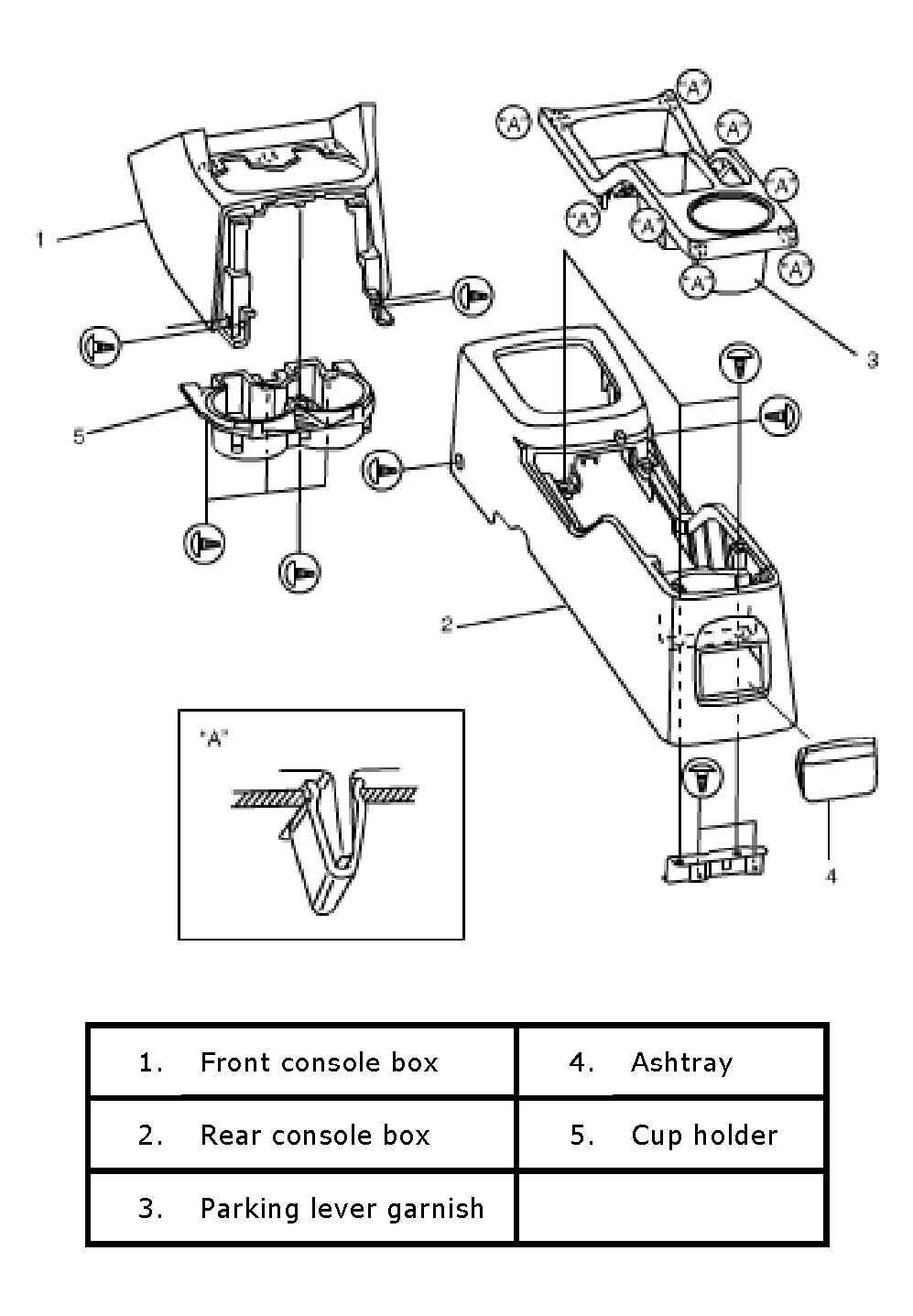

Fig 1: Identifying Console Box Components

G04591719

Courtesy of SUZUKI OF AMERICA CORP.
