ABS Schematics

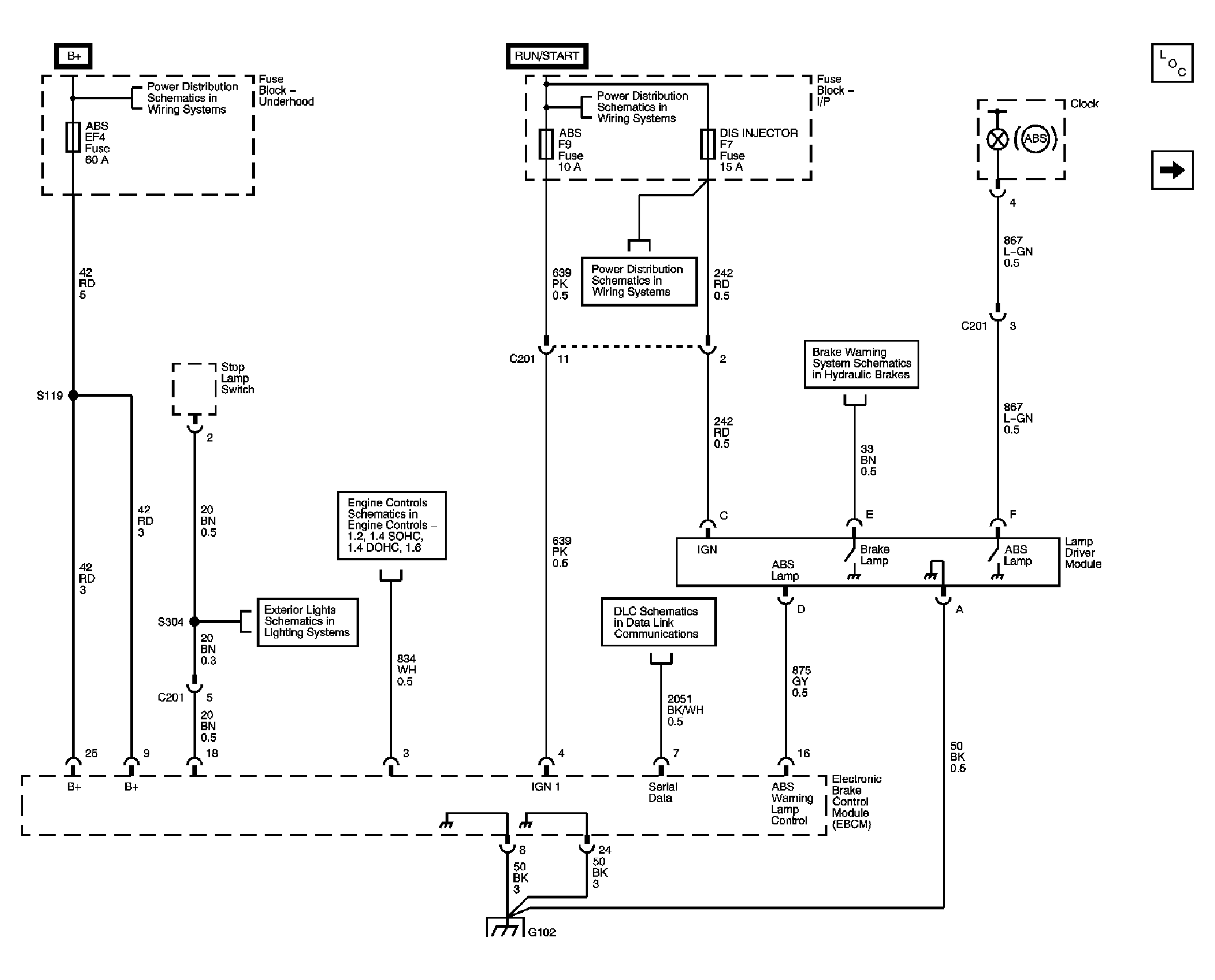

Fig 1: Power, Ground and Inputs

GM1679816

Courtesy of GENERAL MOTORS CORP.

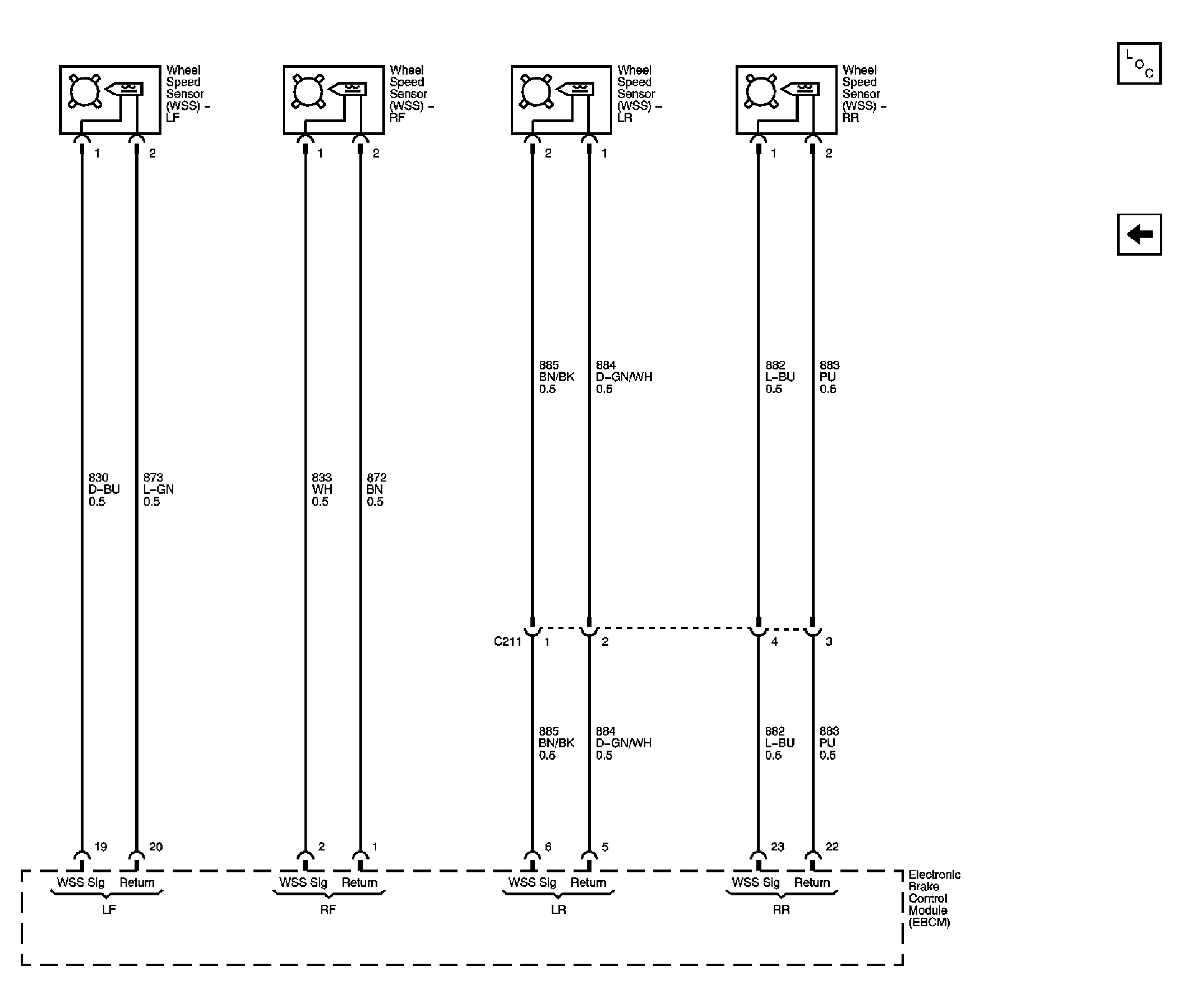

Fig 2: Wheel Speed Sensors

GM1679817

Courtesy of GENERAL MOTORS CORP.
