Electronic Shift Control System Wiring Diagram: Notes

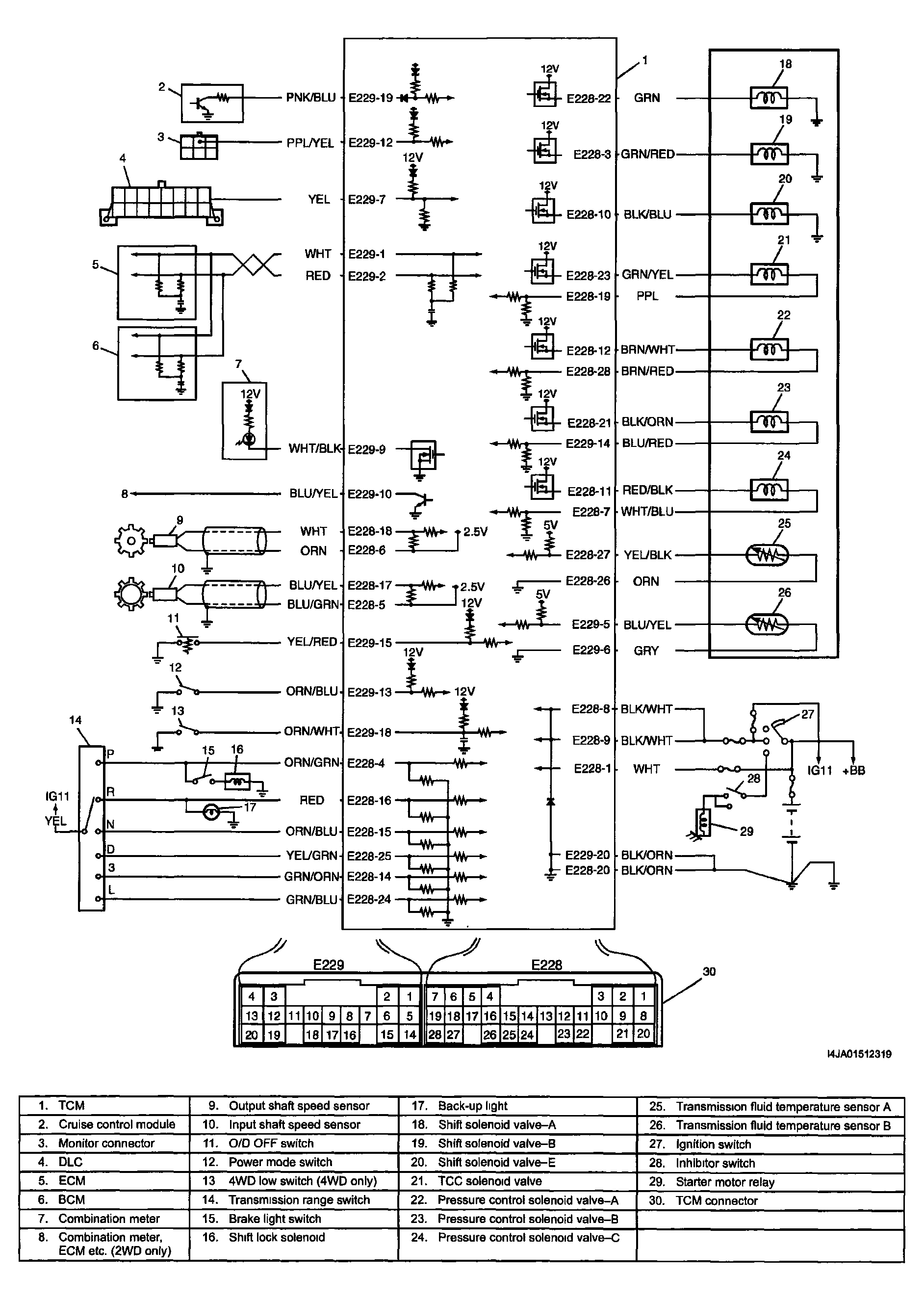

Fig 1: Electronic Shift Control System - Wiring Diagram

G04099784

Courtesy of SUZUKI OF AMERICA CORP.
