Intelligent Switching Unit Circuit Diagram

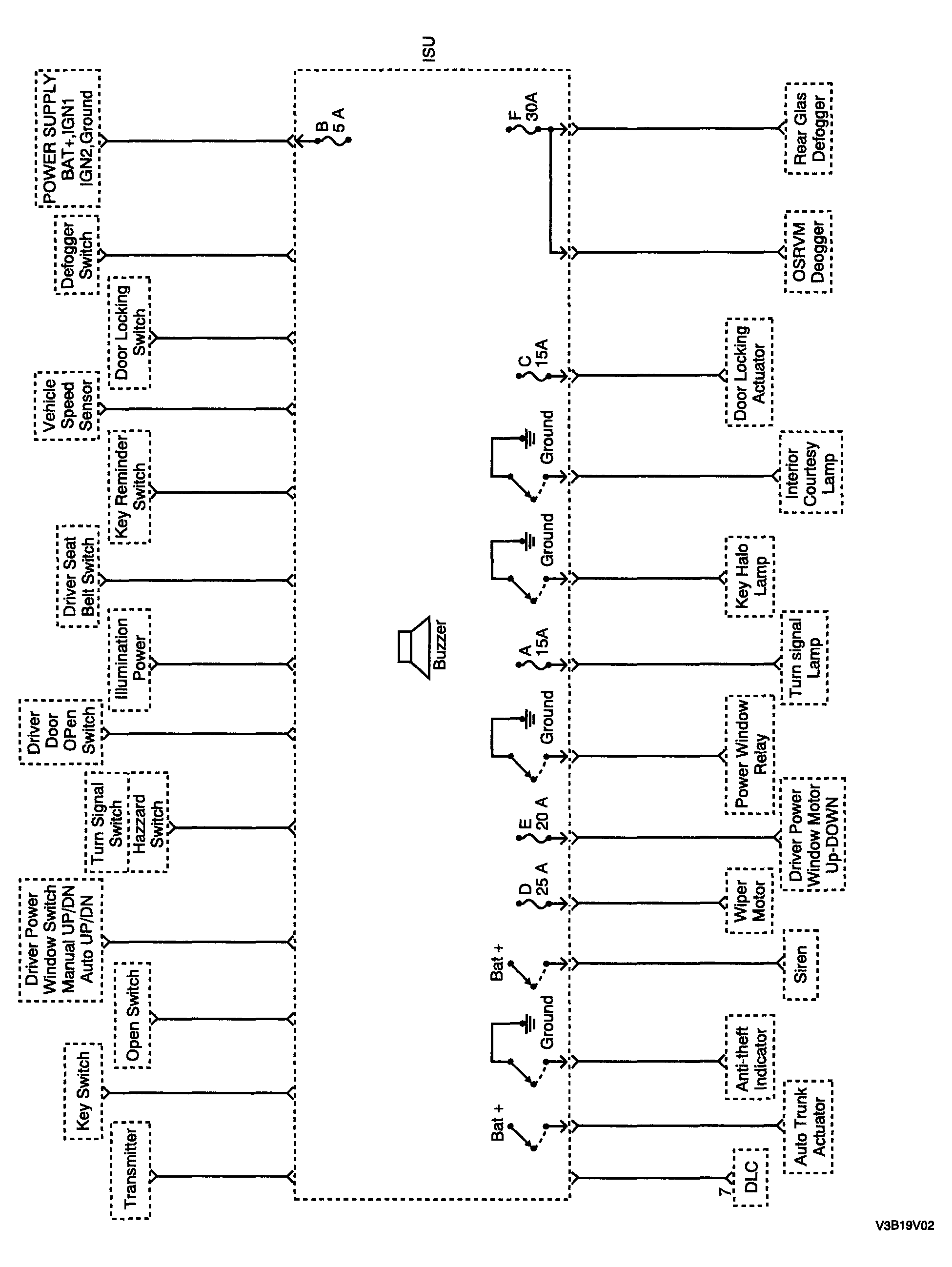

Fig 1: Intelligent Switching Unit Circuit Diagram

G04096560

Courtesy of SUZUKI OF AMERICA CORP.
