DTC P1504 Vehicle Speed Sensor CAN Malfunction: Notes

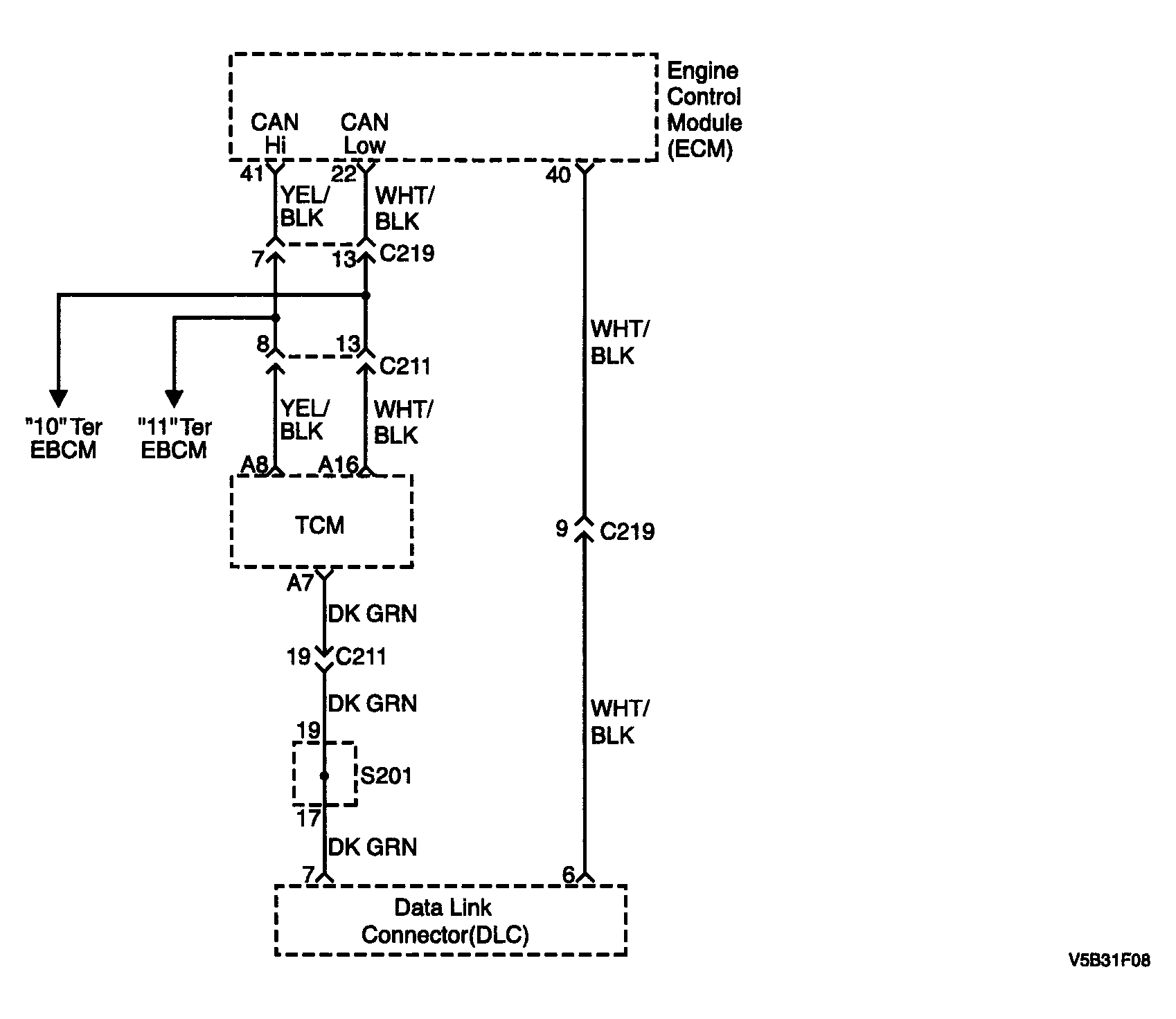

Fig 1: P1504 Vehicle Speed Sensor Can Malfunction - Circuit Diagram

G04094519

Courtesy of SUZUKI OF AMERICA CORP.
