DTC P0334 Knock Sensor 2 Malfunction: Notes

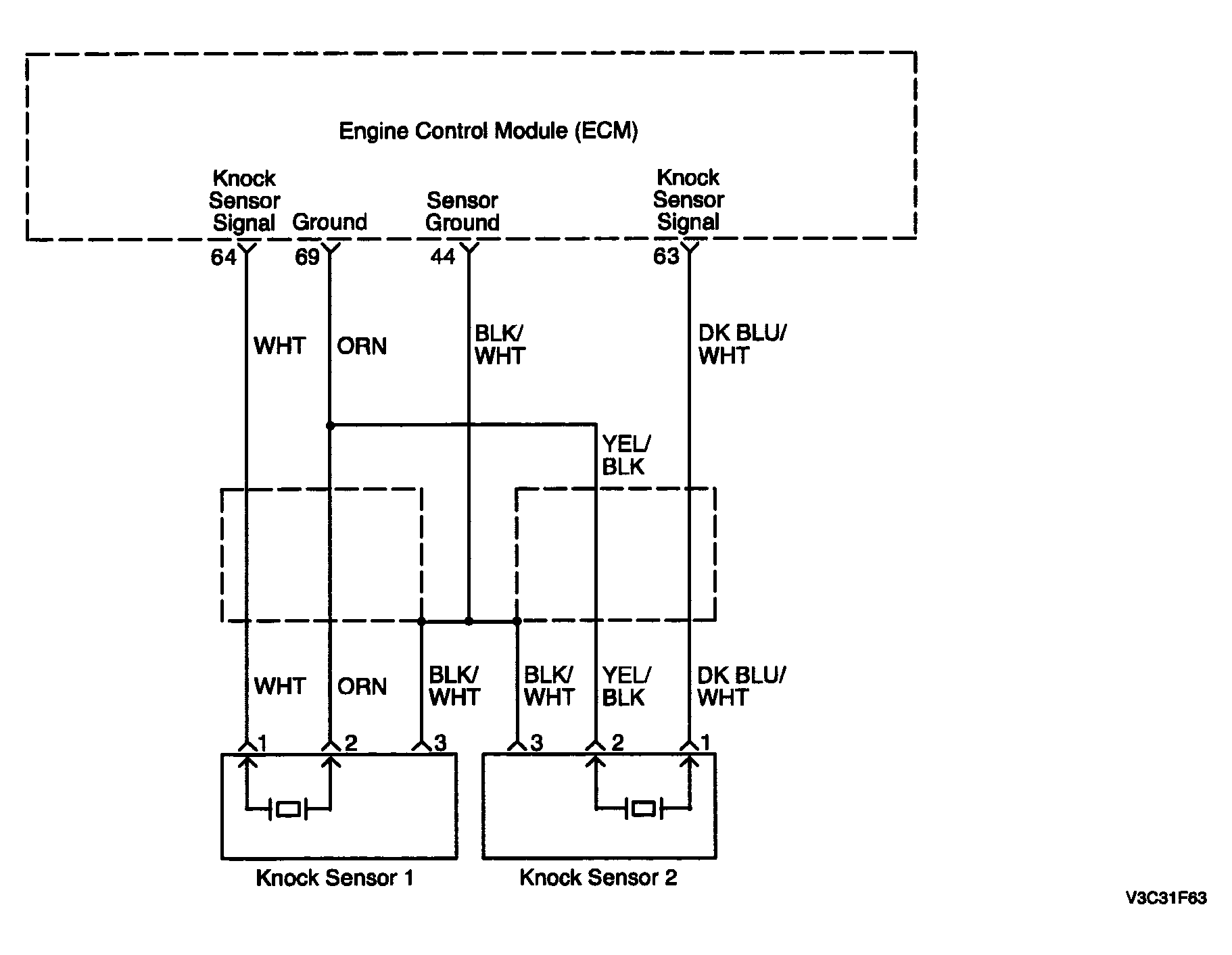

Fig 1: P0334 Knock Sensor 2 Malfunction - Circuit Diagram

G04094477

Courtesy of SUZUKI OF AMERICA CORP.
