Fuel Pump Circuit Check: Wiring Diagram

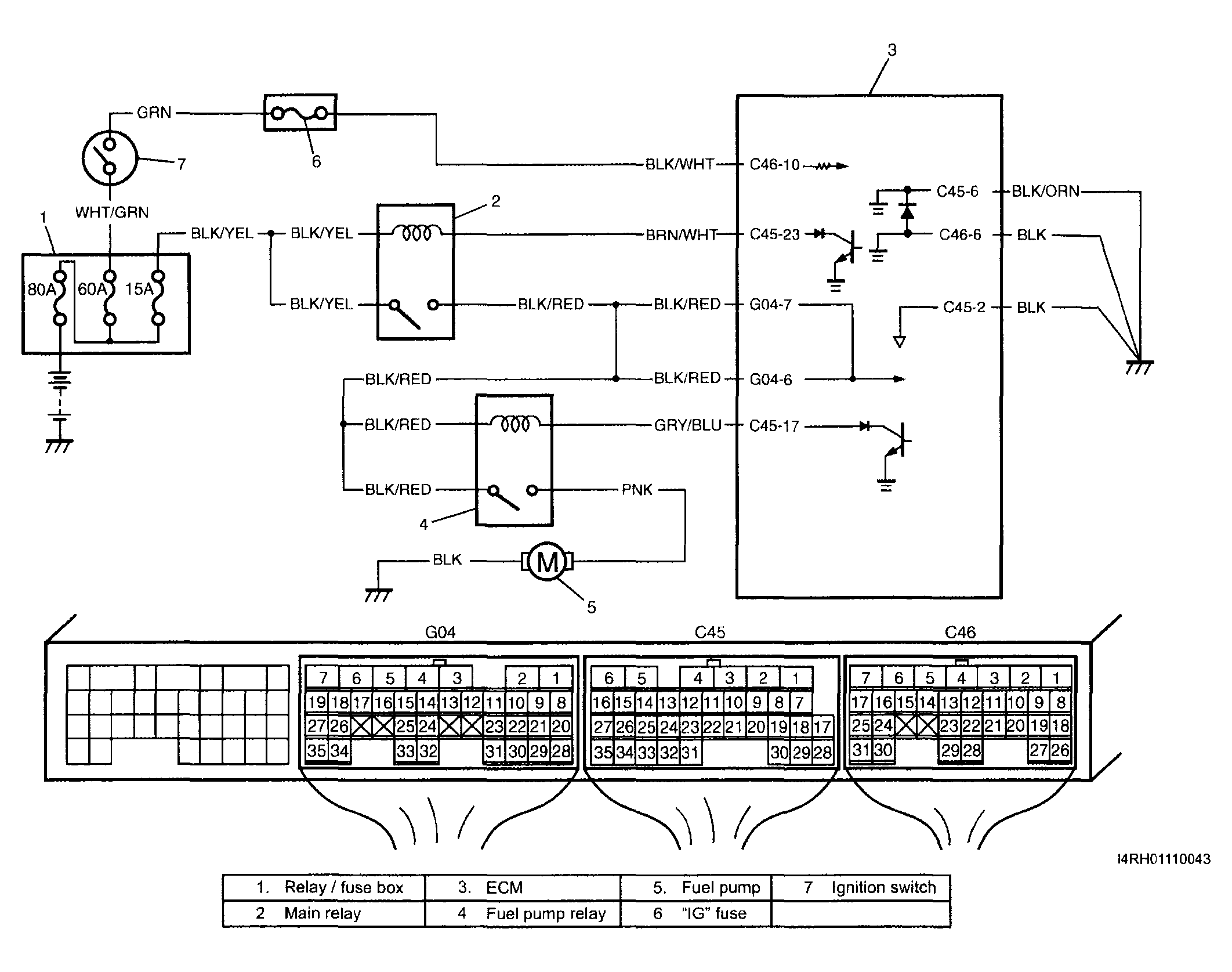

Fig 1: Fuel Pump Circuit - Wiring Diagram

G04013810

Courtesy of SUZUKI OF AMERICA CORP.
