Dash Fuse Panel

The dash fuse panel is located behind a cover in the dash to the left of the steering column. For dash fuse identification, refer to illustration. See Fig 1 .

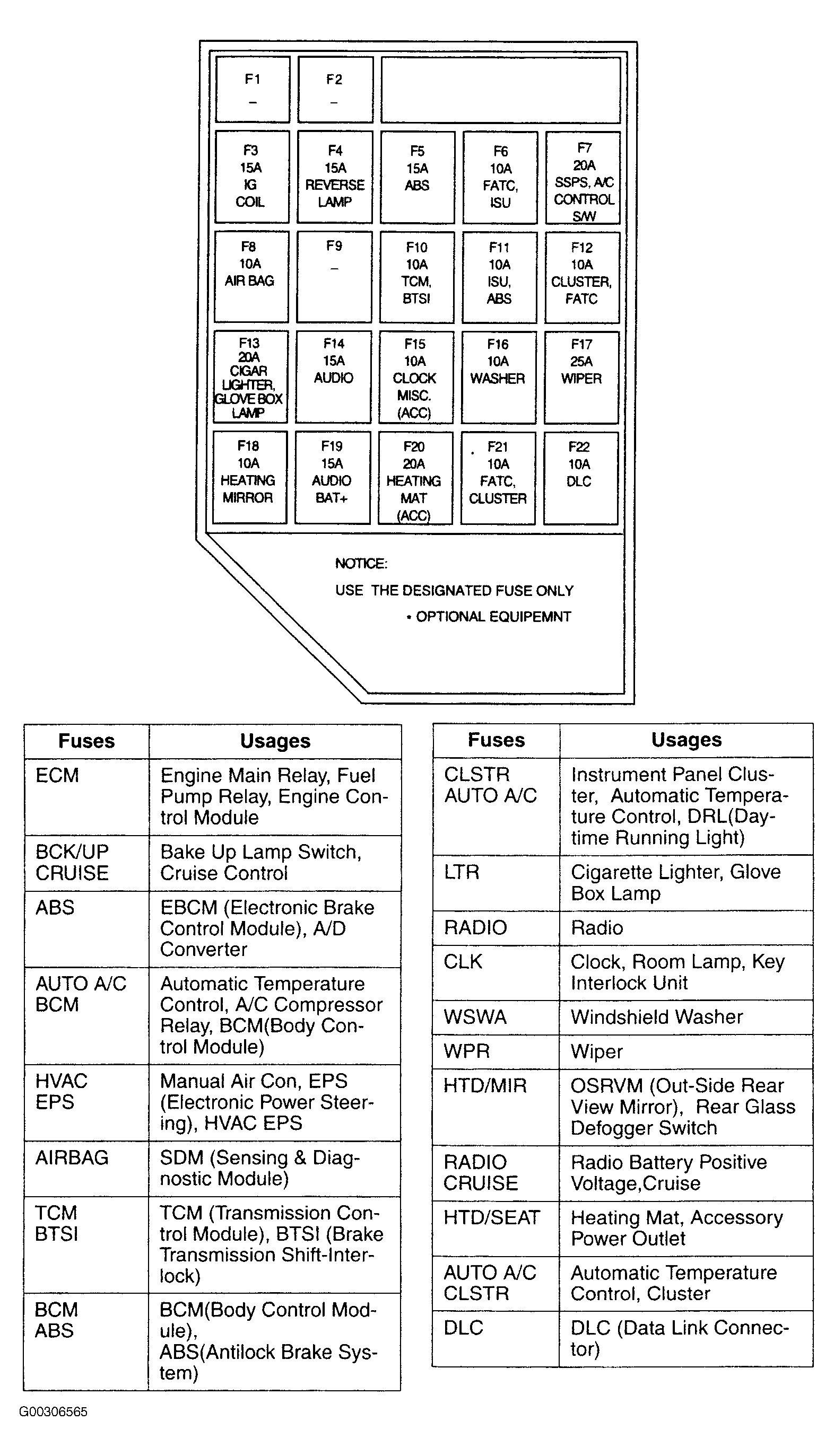

Fig 1: Identifying Dash Fuse Panel Components

Courtesy of SUZUKI OF AMERICA CORP.
