Defogger Timer Relay

Remove defogger timer relay. See Fig 1 . Connect test light and fused jumper wires as shown. See Fig 2 . Test light should illuminate for 10 minutes. Replace as necessary.

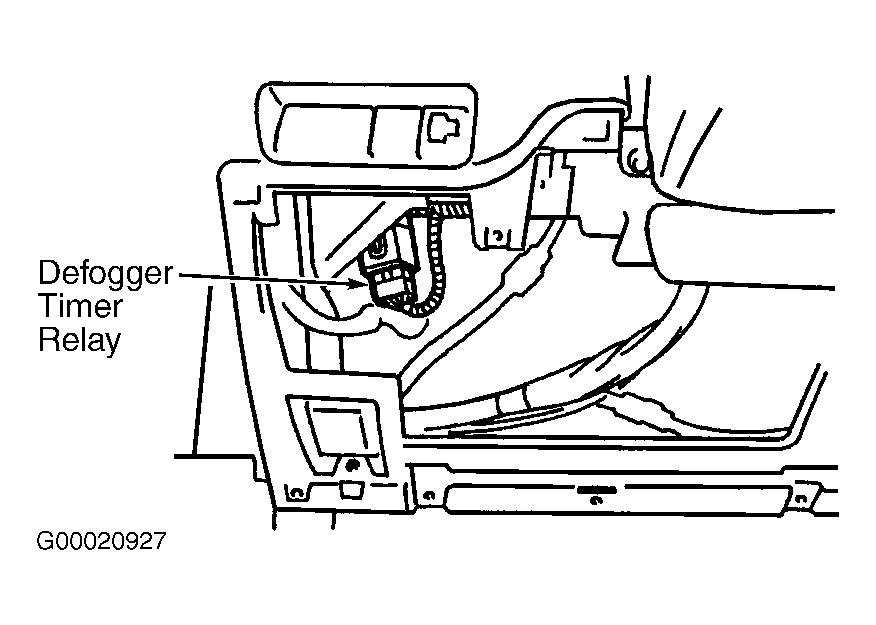

Fig 1: Locating Defogger Timer Relay (Grand Vitara, Vitara & XL7)

Courtesy of SUZUKI OF AMERICA CORP.

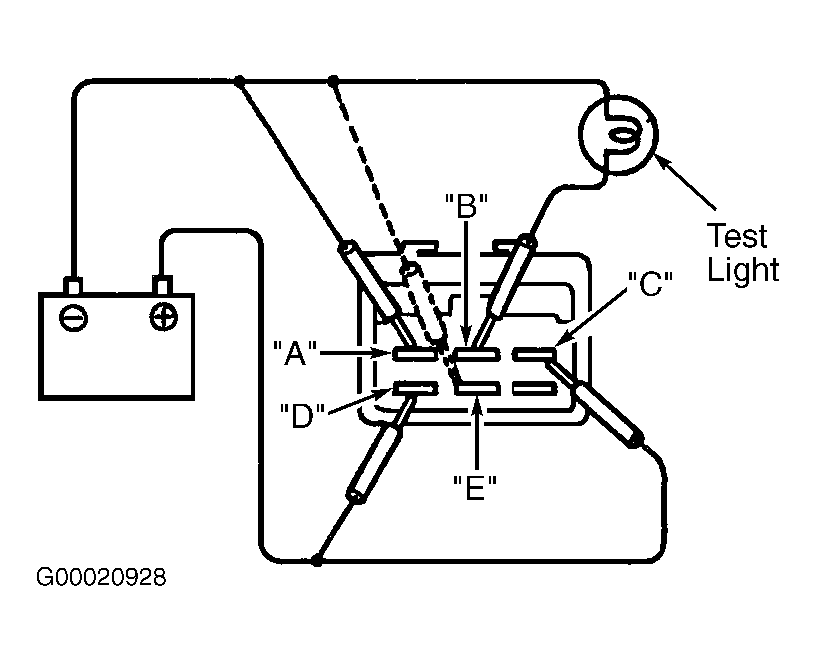

Fig 2: Testing Defogger Timer Relay (Grand Vitara, Vitara & XL7)

Courtesy of SUZUKI OF AMERICA CORP.
