Defogger Switch Test

Disconnect defogger switch connector. Using an ohmmeter, check continuity between appropriate switch terminals with defogger switch in appropriate position. See DEFOGGER SWITCH CONTINUITY table. See Fig 1 .

DEFOGGER SWITCH CONTINUITY

Switch Position	Check Continuity Between Terminals No.
Off	3 & 4; 2 & 6
On	1, 3 & 4; 2 & 6

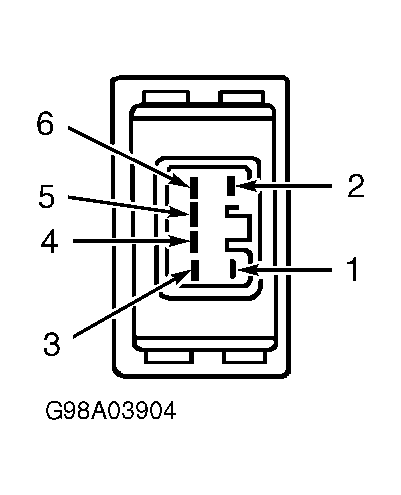

Fig 1: Identifying Rear Defogger Switch Terminals

Courtesy of SUZUKI OF AMERICA CORP.
