Inspection Of Clearance
This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

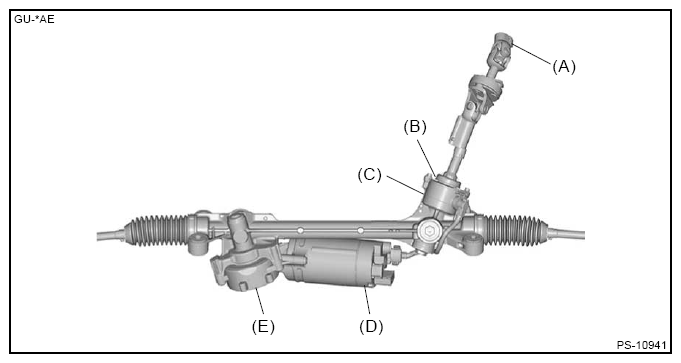

| Location | Minimum allowance mm (in) |
|---|---|
| (A) Universal joint assembly steering column side yoke - Electric booster assembly (closest point of approach when the universal joint turns by 360°) | 2 (0.08) |
| (B) Stub housing - Transmission case | 10 (0.39) |
| (C) Torque sensor - Crossmember COMPL front | There must be no contact |
| (D) Motor control module - Crossmember COMPL front | There must be no contact |
| (E) Worm wheel housing - Crossmember support | There must be no contact |
